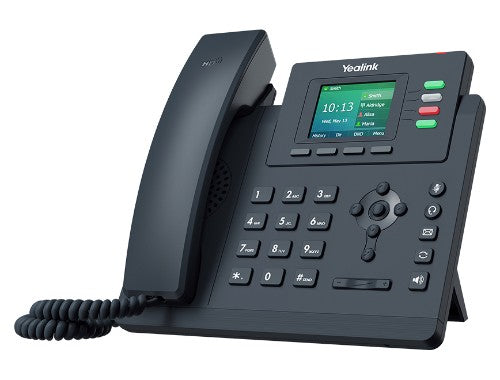

2.4” 320 x 240-pixel color display with backlight, 4 VoIP accounts, Dual-port Gigabit Ethernet, 1000 entries, Grey
Description
Strong Performance, More Possibilities
Equipped with powerful chip, the T3 series owns a stronger computing ability and more upgraded functions, which ensures a higher productivity and smoother office experience. Due to great performance, T3 series is capable to extend more services for different business demands.
Superior HD Audio,
Better CommunicationThe Yealink T3 series provides distraction-free communications with industry leading Smart Noise Filtering Technology, which delivers excellent sound quality without extraneous noises and allows fluent conversations.
Classic Design, Practical DetailsDesigned by Yealink original team, T3 series inherits the design concept of Yealink IP phone family. The advanced design including modern appearances and ergonomic details enables easier and friendly operation experience to users.
All in One Platform,
Convenient ManagementProven reliability and integrations for Yealink Device Management Platform, installed the unified firmware, T3 series is simple to deploy and manage, which allows a significant reduction in the operation and maintenance cost
Specifications
| Features |
|---|
| Wall mountable |
Yes |
| Volume control |
Buttons |
| Headset connectivity |
RJ-9 |
| Handset type |
Wired handset |
| Product colour |
Gray |
| Base station |
Yes |
| Design |
|---|
| Product type |
IP Phone |
| Wall mountable |
Yes |
| Handset type |
Wired handset |
| Product colour |
Gray |
| Phone features |
|---|
| Lines quantity |
4 lines |
| Speed dialling |
Yes |
| Short Message Service (SMS) |
Yes |
| Redialing |
Yes |
| Phonebook capacity |
1000 entries |
| Number of VoIP accounts |
4 |
| Conference call |
Yes |
| Caller ID |
Yes |
| Call waiting |
Yes |
| Call transfer |
Yes |
| Call return |
Yes |
| Call hold |
Yes |
| Call forwarding |
Yes |
| Anonymous call rejection |
Yes |
| Anonymous call |
Yes |
| Call history |
Yes |
| Management features |
|---|
| Volume control |
Buttons |
| Display |
|---|
| Touchscreen |
No |
| Display resolution |
320 x 240 pixels |
| Display diagonal |
2.4" |
| Display |
LED |
| Backlight display |
Yes |
| Audio |
|---|
| Voice codecs |
AGC, AJB, CNG, G.711, G.722, G.723.1, G.726, G.729ab, PLC, VAD |
| Speakerphone |
Yes |
| Microphone mute |
Yes |
| Network |
|---|
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Syslog |
Yes |
| Supported network protocols |
HTTP/HTTPS, IPv6, LLDP/CDP/DHCP VLAN, ICE |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN |
Yes |
| DHCP client |
Yes |
| Technical details |
|---|
| Harmonized System (HS) code |
85171800 |
| Ports & interfaces |
|---|
| WAN connection type |
RJ-45 |
| RJ-9 ports quantity |
2 |
| Headset connectivity |
RJ-9 |
| Headphone outputs |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Certificates |
|---|
| Certification |
CE, FCC, REACH, RoHS |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power consumption (typical) |
3 W |
| Input current |
0.6 A |
| AC adapter output voltage |
5 V |
| AC adapter input voltage |
100 - 240 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Width |
8.35" (212 mm) |
| Depth |
7.32" (186 mm) |
| Height |
5.75" (146 mm) |
| Weight |
21.1 lbs (9.56 kg) |
| Package weight |
23.1 lbs (10.5 kg) |
| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| AC adapter included |
No |
| Number of handles included |
1 pc(s) |
| Base station |
Yes |
| Logistics data |
|---|
| Export Control Classification Number (ECCN) |
EAR99 |
| Harmonized System (HS) code |
85171800 |
