Portable 16", WQXGA 2560x1600, IPS, 60 Hz, 16:10, 400 cd/m2, 2x 2W, 2x USB Type C 65 W, DC 5V/9V/12V/15V/20V, Smart Cover
Key Features
- 16 Inch QHD (2560x1600p) IPS portable monitor with 60Hz refresh rate and smart cover
- With a weight of 2 lbs and a thickness of 0.4 in, this portable monitor slips easily into backpacks and purses
- USB-C connectivity for fast data, audio and video transfer, and 2 way powered 65W USB C charging
- Comes with a detachable magnetic screen cover and a built-in stand for orientation in both portrait and landscape modes
- Industry-leading 3-year warranty with access to our US-based customer service team
- The VG1656-2K supports laptops, PCs, and Apple/Mac operating systems and more with USB-C inputs
Description
VG1656-2K is a portable 16” 16:10 monitor designed for optimal productivity on the go. Weighting less than 2lbs and under 0.5” thick, with an intuitive smart cover to both provide versatile viewing options and protects the screen in transit, this portable is optimized to take on the road. A WQXGA 2K resolution offers vivid details for crispy and clear imagery. The two way power USB-C connectors provide a one-cable solution for multimedia transfer and 65W power charging, either receiving power from a laptop or power bank, or being able to pass through power to the connected device, when the portable is connected to a power source.
STUNNING RESOLUTIONDisplaying more than 4 million pixels with a high pixel density, this WQXGA 2560 x 1600 monitor delivers the ultimate in image detail and clarity for stunning, lifelike images.
PORTABLE PRODUCTIVITYWeighing under 2lbs. and measuring less than 0.5” thick, this compact monitor is ideal for on-the-go use so you can work more efficiently from nearly any location.
AUTOMATIC ROTATIONA built-in G-Sensor knows the monitor’s orientation (whether landscape or portrait), and automatically rotates and maximizes the image on screen. This allows you to easily move from portrait to landscape and back, without having to make any adjustments to your display settings.
*This feature requires the vDisplayManager™ app.

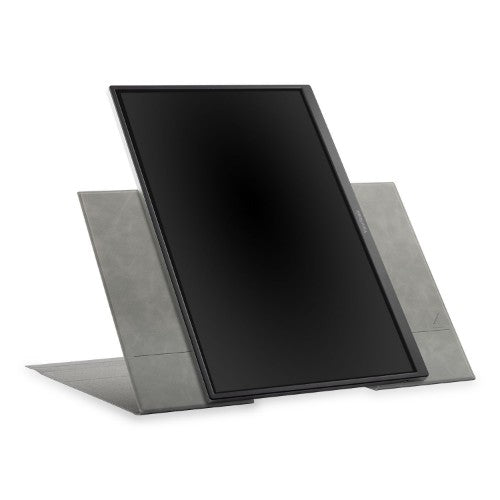

VERSATILE SMART COVERAn included smart cover provides on-the-go screen protection. The smart cover also transforms into an adjustable stand for optimal ergonomic comfort and flexible positioning whether in office or on the road.
EXTRA SCREEN SPACEThe 16:10 aspect ratio offers multitaskers extra vertical space to work more efficiently. This design also complements the latest 16:10 laptops for a more streamlined viewing experience.
Easy Auto-Pivot ControlSeamlessly use your portable monitor in both portrait and landscape modes with our free software. Simply download the ViewSonic Display Portal to access vDisplay Manager™, which features an easy on/off toggle for auto-pivot along with other controls. This intuitive control lets you easily switch screen orientations to perfectly accommodate your workflow, whether you’re coding, reading documents, or browsing the web.
Dual Integrated SpeakersDesigned with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
3-year Limited WarrantyHave peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.
Specifications
| Performance |
|---|
| Mean time between failures (MTBF) |
15000 h |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| Display |
|---|
| Display brightness (typical) |
400 cd/m² |
| Display diagonal |
16" |
| Response time |
11.6 ms |
| Display resolution |
2560 x 1600 pixels |
| Display technology |
LED |
| Screen shape |
Flat |
| Display number of colours |
16.7 million colors |
| Native aspect ratio |
16:10 |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
1500:1 |
| Contrast ratio (dynamic) |
50000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Digital horizontal frequency |
15 - 100 kHz |
| Digital vertical frequency |
50 - 75 Hz |
| HD type |
WQXGA |
| Supported graphics resolutions |
2560 x 1600 (WQXGA) |
| Surface hardness |
3H |
| Touchscreen |
No |
| Panel type |
IPS |
| Colour depth |
8 bit |
| Display diagonal (metric) |
16" (40.6 cm) |
| Haze rate |
25% |
| Anti-glare screen |
Yes |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Built-in camera |
No |
| Number of speakers |
2 |
| RMS rated power |
4 W |
| Design |
|---|
| Market positioning |
Business |
| Product colour |
Silver |
| Mean time between failures (MTBF) |
15000 h |
| Ports & interfaces |
|---|
| Built-in USB hub |
No |
| USB upstream port type |
USB Type-C |
| Number of upstream ports |
2 |
| Headphone out |
No |
| HDMI |
No |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
65 W |
| Number of USB Type-C upstream ports quantity |
2 |
| Ergonomics |
|---|
| Cable lock slot |
No |
| VESA mounting |
No |
| Tilt angle range |
-20 - 70° |
| Height adjustment |
Yes |
| On Screen Display (OSD) |
Yes |
| Pivot angle |
0 - 90° |
| Pivot |
Yes |
| Tilt adjustment |
Yes |
| Adjustable height (max) |
1.97" (5 cm) |
| Power |
|---|
| Power consumption (max) |
11.6 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
8.6 W |
| Power supply type |
External |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Weight & dimensions |
|---|
| Width (with stand) |
14.1" (357 mm) |
| Depth (with stand) |
0.378" (9.6 mm) |
| Height (with stand) |
9.25" (235 mm) |
| Width (without stand) |
14.1" (357 mm) |
| Height (without stand) |
9.25" (235 mm) |
| Depth (without stand) |
0.378" (9.6 mm) |
| Weight (with stand) |
2.43 lbs (1.1 kg) |
| Weight (without stand) |
21.2 oz (600 g) |
| Package width |
17.2" (438 mm) |
| Package depth |
2.4" (61 mm) |
| Package height |
11.8" (300 mm) |
| Package weight |
3.75 lbs (1.7 kg) |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
17.2" (438 mm) |
| Package depth |
2.4" (61 mm) |
| Package height |
11.8" (300 mm) |
| Package weight |
3.75 lbs (1.7 kg) |
| Stand included |
Yes |
| Quick start guide |
Yes |
| Cables included |
USB Type-C |
| Packaging content |
|---|
| Stand included |
Yes |
| Quick start guide |
Yes |
| Cables included |
USB Type-C |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, EPEAT, California Energy Commission (CEC), Mexico Energy |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR, EPEAT, California Energy Commission (CEC), Mexico Energy |
| Warranty period |
3 year(s) |
| Compliance certificates |
cTUVus, Federal Communications Commission (FCC), ICES, Norma Oficial Mexicana (NOM) |
| Power supply type |
External |
| Weight (with stand) |
2.43 lbs (1.1 kg) |
| Surface hardness |
3H |
| Touchscreen |
No |
| Other features |
|---|
| Mean time between failures (MTBF) |
15000 h |
| Warranty period |
3 year(s) |
| Compliance certificates |
cTUVus, Federal Communications Commission (FCC), ICES, Norma Oficial Mexicana (NOM) |
| Power consumption (max) |
11.6 W |
| Width (without stand) |
14.1" (357 mm) |
| Quick start guide |
Yes |
| Height (without stand) |
9.25" (235 mm) |
| HDMI |
No |
| Depth (without stand) |
0.378" (9.6 mm) |
| Surface hardness |
3H |
| USB Power Delivery up to |
65 W |
| Power supply type |
External |
| Touchscreen |
No |
| USB Power Delivery (USB PD) |
Yes |
| Package type |
Box |
