Description

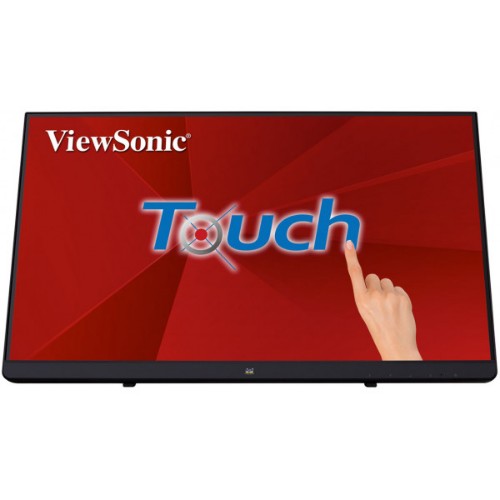

10-Point Projected Capacitive TouchTouch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.
SuperClear IPS Panel TechnologyEnjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
Frameless DesignSay goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With its sleek, eye-catching design, this elegant monitor looks as good as it performs.
Versatile ConnectivityDisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Durable, Scratch-resistant ScreenThis touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.

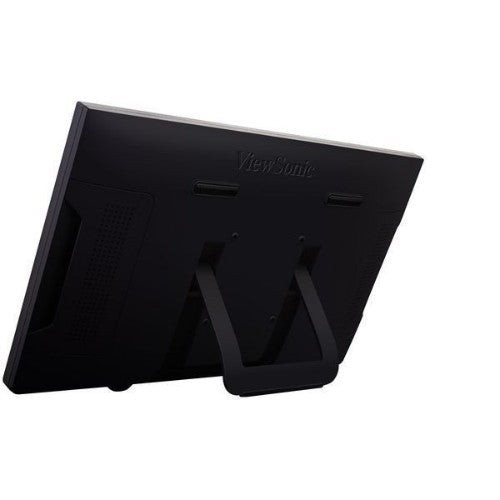

Stable Bookstand DesignA stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilted or laid completely flat on a tabletop for a more comfortable work environment.
Enhanced ViewingComfortFlicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
Cross-platform CompatibilityCross compatibility with a wide range of operating systems include Windows 10, and certain Android and Linux versions.
VESA-CompatibleMountMount the monitor as you see fit using its convenient VESA-compatible mount design.
3-year LimitedWarrantyHave peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.
Specifications
| Display |
|---|
| Display diagonal |
21.5" |
| Response time |
5 ms |
| Display resolution |
1920 x 1080 pixels |
| Display technology |
LCD |
| Screen shape |
Flat |
| Native aspect ratio |
16:9 |
| Maximum refresh rate |
76 Hz |
| Contrast ratio (typical) |
1000:1 |
| Contrast ratio (dynamic) |
50000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.00977 x 0.00977" (0.248 x 0.248 mm) |
| Horizontal scan range |
24 - 82 kHz |
| Vertical scan range |
50 - 76 Hz |
| HD type |
Full HD |
| Supported graphics resolutions |
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Touchscreen type |
Multi-user |
| Touchscreen |
Yes |
| Number of simultaneous touchpoints |
10 |
| Panel type |
ADS |
| Display diagonal (metric) |
21.5" (54.6 cm) |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Display brightness |
250 cd/m² |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
Android |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Built-in camera |
No |
| Number of speakers |
2 |
| RMS rated power |
6 W |
| Built-in microphone |
No |
| Design |
|---|
| Product colour |
Black |
| Certification |
cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP |
| Ports & interfaces |
|---|
| Built-in USB hub |
Yes |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type |
USB Type-B |
| Number of upstream ports |
1 |
| USB Type-A downstream ports quantity |
2 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| Audio input |
1 |
| Audio output |
1 |
| HDMI |
Yes |
| HDMI version |
1.4 |
| DisplayPort version |
1.2 |
| Number of USB Type-B upstream ports quantity |
1 |
| Ergonomics |
|---|
| Wall mountable |
Yes |
| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Tilt angle range |
20 - 70° |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
12 |
| Tilt adjustment |
Yes |
| Power |
|---|
| AC input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
25 W |
| Power supply type |
AC |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
F |
| Energy consumption (SDR) per 1000 hours |
19 kWh |
| European Product Registry for Energy Labelling (EPREL) code |
389769 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width (with stand) |
19.3" (490 mm) |
| Depth (with stand) |
1.85" (47 mm) |
| Height (with stand) |
11.8" (299 mm) |
| Weight (with stand) |
7.89 lbs (3.58 kg) |
| Package width |
21.7" (550 mm) |
| Package depth |
4.49" (114 mm) |
| Package height |
14.6" (371 mm) |
| Package weight |
10.4 lbs (4.7 kg) |
| Weight |
7.94 lbs (3.6 kg) |
| Packaging data |
|---|
| Package width |
21.7" (550 mm) |
| Package depth |
4.49" (114 mm) |
| Package height |
14.6" (371 mm) |
| Package weight |
10.4 lbs (4.7 kg) |
| Cables included |
AC, Audio (3.5mm), HDMI, USB |
| Packaging content |
|---|
| Cables included |
AC, Audio (3.5mm), HDMI, USB |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
389769 |
| Sustainability certificates |
EPEAT Bronze, ErP |
| Technical details |
|---|
| Sustainability certificates |
EPEAT Bronze, ErP |
| Compliance certificates |
CE, REACH, RoHS |
| Power supply type |
AC |
| Weight (with stand) |
7.89 lbs (3.58 kg) |
| Touchscreen type |
Multi-user |
| Touchscreen |
Yes |
| Number of simultaneous touchpoints |
10 |
| Other features |
|---|
| Display viewable area (HxV) |
18.8 x 10.6" (476.6 x 268.1 mm) |
| Certification |
cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP |
| Weight |
7.94 lbs (3.6 kg) |
| Compliance certificates |
CE, REACH, RoHS |
| HDMI |
Yes |
| Energy efficiency scale |
A to G |
| Power supply type |
AC |
| Touchscreen type |
Multi-user |
| Touchscreen |
Yes |
| Number of simultaneous touchpoints |
10 |
| Certificates |
|---|
| Certification |
cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP |
| Logistics data |
|---|
| Pallet gross width |
47.2" (120 cm) |
| Pallet gross length |
39.4" (100 cm) |
| Pallet gross height |
77.8" (197.5 cm) |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
8528521000 |
