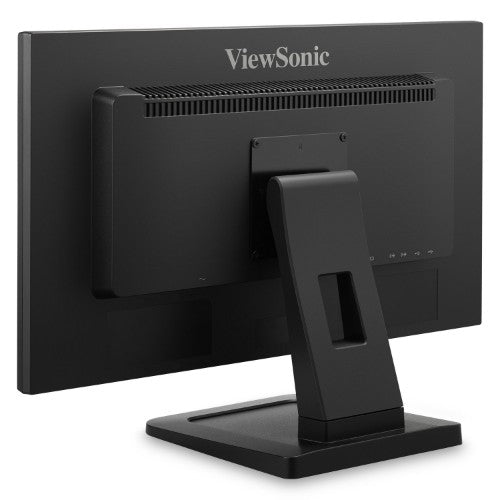

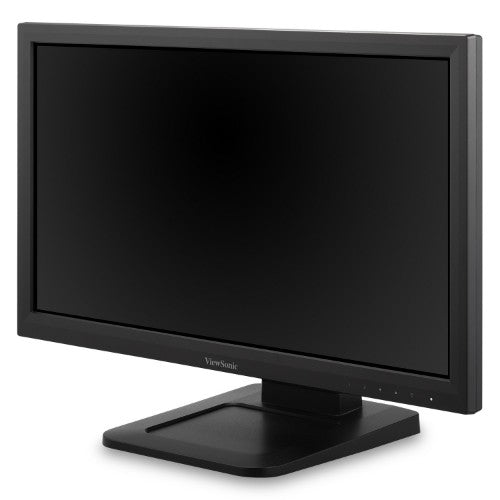

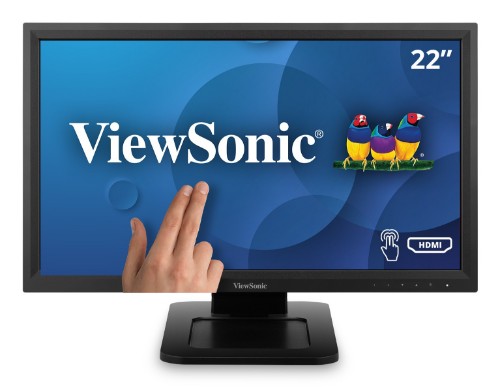

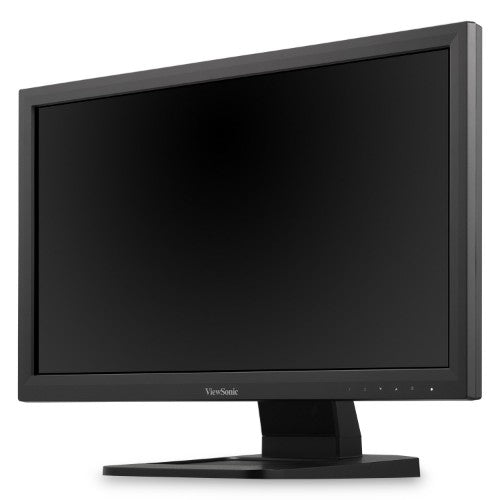

22", 1920 x 1080 Full HD, MVA, 250 cd/m2, Single Point Resistive Touch Monitor, USB-A, USB-B, 3.5mm Audio, HDMI, DVI-D, VGA, Tilt (Forward/Back), VESA 100 x 100
Key Features
- 22 Inch Full HD (1920x1080p) LED touch monitor with 75Hz refresh rate
- Robust single-point resistive touch technology feature a robust, pressure-sensing touchscreen
- 20M:1 MEGA Dynamic Contrast Ratio delivers sharp, crisp images
- MacOS users can access touch and gesture controls on touch displays connected to their Apple devices using ViewSonic's vTouch driver. Not available for iPhone and iPad
- The TD2211 supports laptops, PCs, Macs and POS Systems with USB, DVI-D, HDMI, and VGA inputs
Description
Featuring a robust 22” touchscreen, the ViewSonic® TD2211 touch display is ideal for use in retail, POS and commercial environments.
Each display comes equipped with resistive touch technology, making it responsive to hands, gloves and styluses alike.
The TD2211 combines Full HD resolution with a 20M:1 dynamic contrast ratio to deliver crystal clear images.
Enjoy flexible connectivity options including HDMI, VGA, DVI and USB ports as well as a VESA-compatible mount design that makes it easy to transform your device into a wall mounted display.
Resistive Touch TechnologyWith resistive touch technology, this monitor features a robust, pressure-sensing touchscreen that is resistant to dust and water, making it ideal for use in retail, POS, and commercial environments. Because non-conductive inputs can be used, this display is also fully functional in gloved environments and compatible with styluses.
Multi-Touch for macOSvTouch 3.1 works with both Intel and M1 processors and is MacOS Monterey compatible. vTouch does not currently support iOS devices such as the iPad or iPhone. If you are experiencing issues with vTouch on Apple devices, we recommend upgrading to the latest version of vTouch.
SuperClear® MVA Panel TechnologyEnjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
Versatile ConnectivityHDMI, DVI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
ENERGY STAR CertificationThis is an ENERGY STAR certified product that can save on energy costs while reducing greenhouse gases.
EPEAT CertifiedWith EPEAT Certification, this monitor delivers a reduced environmental impact over the complete product lifecycle, making it a great eco-friendly, long-term investment.
3-year Limited WarrantyHave peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.
Specifications
| Performance |
|---|
| Mean time between failures (MTBF) |
30000 h |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Display |
|---|
| Display brightness (typical) |
250 cd/m² |
| Display diagonal |
22" |
| Response time |
6.8 ms |
| Display resolution |
1920 x 1080 pixels |
| Display technology |
LCD |
| Screen shape |
Flat |
| Display number of colours |
16.7 million colors |
| Native aspect ratio |
16:9 |
| Maximum refresh rate |
75 Hz |
| Contrast ratio (typical) |
3000:1 |
| Contrast ratio (dynamic) |
20000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Horizontal scan range |
24 - 82 kHz |
| Vertical scan range |
50 - 75 Hz |
| HD type |
Full HD |
| Surface hardness |
3H |
| Touchscreen |
Yes |
| Panel type |
MVA |
| Colour depth |
8 bit |
| Display diagonal (metric) |
22" (55.9 cm) |
| Touch technology |
Single-touch |
| Touchscreen technology |
Resistive |
| Haze rate |
25% |
| LED backlight |
Yes |
| Anti-glare screen |
Yes |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Built-in camera |
No |
| Number of speakers |
2 |
| RMS rated power |
4 W |
| Design |
|---|
| Product colour |
Black |
| Feet colour |
Black |
| Mean time between failures (MTBF) |
30000 h |
| Ports & interfaces |
|---|
| VGA (D-Sub) ports quantity |
1 |
| DVI port |
Yes |
| DVI-D ports quantity |
1 |
| HDMI ports quantity |
1 |
| Headphone outputs |
1 |
| Headphone connectivity |
3.5 mm |
| Headphone out |
Yes |
| HDMI |
Yes |
| AC (power) in |
Yes |
| HDMI version |
1.4 |
| Ergonomics |
|---|
| Wall mountable |
Yes |
| Cable lock slot |
Yes |
| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Tilt angle range |
5 - 20° |
| Height adjustment |
No |
| On Screen Display (OSD) |
Yes |
| Cable lock slot type |
Kensington |
| Tilt adjustment |
Yes |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
26.8 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
23.5 W |
| Power supply type |
Internal |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Weight & dimensions |
|---|
| Width (with stand) |
20.4" (519 mm) |
| Depth (with stand) |
9.45" (240 mm) |
| Height (with stand) |
14.8" (377 mm) |
| Width (without stand) |
20.4" (519 mm) |
| Height (without stand) |
12.1" (308 mm) |
| Depth (without stand) |
2.17" (55 mm) |
| Weight (with stand) |
9.7 lbs (4.4 kg) |
| Weight (without stand) |
7.72 lbs (3.5 kg) |
| Package width |
22.8" (580 mm) |
| Package depth |
7.87" (200 mm) |
| Package height |
17.5" (445 mm) |
| Package weight |
13.4 lbs (6.1 kg) |
| Packaging data |
|---|
| Package width |
22.8" (580 mm) |
| Package depth |
7.87" (200 mm) |
| Package height |
17.5" (445 mm) |
| Package weight |
13.4 lbs (6.1 kg) |
| Stand included |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC, Audio, HDMI, USB Type-A to USB Type-B |
| Packaging content |
|---|
| Stand included |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC, Audio, HDMI, USB Type-A to USB Type-B |
| Sustainability |
|---|
| Sustainability certificates |
EPEAT Silver, ENERGY STAR, California Energy Commission (CEC) |
| Technical details |
|---|
| Sustainability certificates |
EPEAT Silver, ENERGY STAR, California Energy Commission (CEC) |
| Warranty period |
3 year(s) |
| Compliance certificates |
cTUVus, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM) |
| Power supply type |
Internal |
| ECO mode |
Yes |
| Weight (with stand) |
9.7 lbs (4.4 kg) |
| Surface hardness |
3H |
| Touchscreen |
Yes |
| Other features |
|---|
| Mean time between failures (MTBF) |
30000 h |
| ECO mode |
Yes |
| Warranty period |
3 year(s) |
| Compliance certificates |
cTUVus, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM) |
| Power consumption (max) |
26.8 W |
| Width (without stand) |
20.4" (519 mm) |
| Quick start guide |
Yes |
| Height (without stand) |
12.1" (308 mm) |
| HDMI |
Yes |
| Depth (without stand) |
2.17" (55 mm) |
| Surface hardness |
3H |
| Power supply type |
Internal |
| Touchscreen |
Yes |
