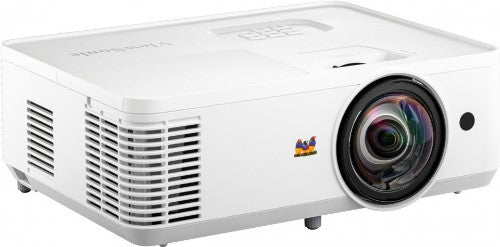

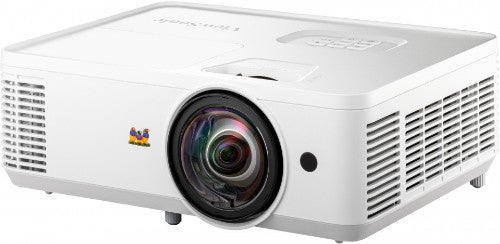

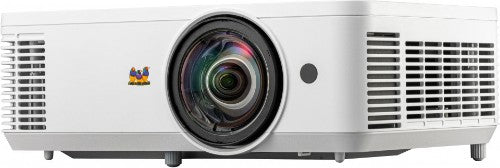

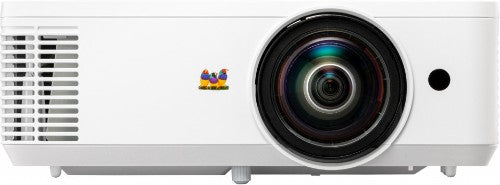

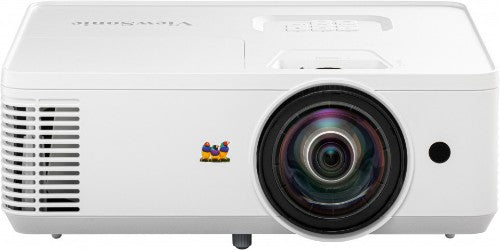

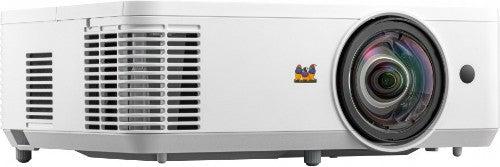

Viewsonic PS502W data projector Short throw projector 4000 ANSI lumens WXGA (1280x800) White

WXGA, 4000 ANSI, 15000:1, 1.07 B, 240W UHP, 16W, HDMI, Audio-in/out, VGA, RS232, USB, 100-240 V, 2.87 kg

Key Features

• 4,000 ANSI Lumens offering clear images in any environment​
• 0.52 Short throw ratio for minimal space consumption​
• Up to 300" ultra large screen with lower cost-per-inch​​
• Easy and flexible connection: dual HDMI ports, USB Type-A port​
• Convenient software updates for projectors via USB connection

Description

The PS502W is ViewSonic’s high brightness WXGA short throw business/education projector. Boasting 4,000 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. With 0.52 short throw ratio, the projector can provide 100” large screen size from only 1.1 m away without being obstructed by shadows, allowing for a large screen even in small spaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centers. ​

High Brightness for Business & Education Environments​
Thanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.

Big Screen for Small Spaces
The PS502W’s 0.52 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.

Ultra-Large Screen with Lower Cost-per-inch​​
The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.

Easy and Flexible Connection​
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.​

Vibrant Colors for Captivating Presentations
Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.

A Simpler Way to Update Projector Software​
Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.​​​

​​​*The latest projector software update can be found in the download section at the bottom of the page when available.​

USB Type A Power Supply​
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.

Audio Right Out of the Box
The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speakers.

Specifications

Projector
Projector brightness	4000 ANSI lumens
Projector native resolution	WXGA (1280x800)
Screen size compatibility	60 - 300"
Projection distance	26.4 - 132.3" (0.67 - 3.36 m)
Contrast ratio (typical)	15000:1
Number of colours	1.07 billion colors
Vertical scan range	23 - 120 Hz
Horizontal scan range	15 - 102 kHz
Keystone correction, vertical	-19 - 19°
Smart projector	No
Light source
Lamp type	UHP
Lamps quantity	1 lamp(s)
Lamp power	240 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	12000 h
Lens system
Zoom capability	Yes
Focus	Manual
Fixed focal length	0.296" (7.51 mm)
Throw ratio	0.52
Offset	112.4%
F-number (relative aperture)	2.8
Digital zoom	2x
Video
Analog signal format system	NTSC, PAL, SECAM
Full HD	Yes
3D	No
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080)

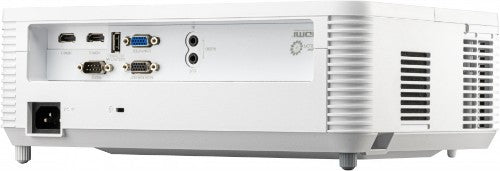

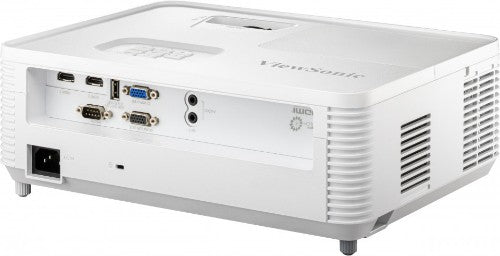

Ports & interfaces
VGA (D-Sub) ports quantity	2
HDMI ports quantity	2
HDMI connector type	Full-size
USB 2.0 ports quantity	1
Composite video in	0
Audio (L/R) in	0
Serial interface type	RS-232
PC in (D-Sub)	Yes
PC Audio out	Yes
PC Audio in	Yes
HDMI version	1.4
DVI port	No
Component video (YPbPr/YCbCr) in	0
AC (power) in	Yes
Service port type	USB Type-A
USB 2.0 Type-A ports quantity	1
Network
Smart TV	No
Ethernet LAN	No
Wi-Fi	No
Storage
Card reader integrated	No
Features
Interactive	No
HDCP	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Vietnamese
Air filter	Yes
Noise level	34 dB
Noise level (economic mode)	25 dB
Number of OSD languages	22
HDCP version	1.4
Multimedia
Built-in speaker(s)	Yes
RMS rated power	16 W
Design
Market positioning	Education
Product colour	White
Product type	Short throw projector
LED indicators	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes
Display
Built-in display	No
Power
Power source	AC
Power consumption (typical)	295 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Supplier features
Harmonized System (HS) code	8528620000
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	12.2" (309 mm)
Depth	9.21" (234 mm)
Height	4.53" (115 mm)
Weight	6.39 lbs (2.9 kg)
Package width	15.7" (400 mm)
Package depth	6.61" (168 mm)
Package height	13.3" (337 mm)
Package weight	9.04 lbs (4.1 kg)
Packaging content
Remote control included	Yes
Remote control type	IR
Warranty card	Yes
Quick start guide	Yes
Cables included	AC, VGA
Technical details
Image lag time	33.2 ms
Logistics data
Pallet gross width	48" (122 cm)
Pallet gross length	40.2" (102 cm)
Pallet gross height	71.5" (181.5 cm)
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	8528620000
Other features
F-number (relative aperture)	2.8
