86", 4K UHD (3840 x 2160), 60 Hz, DLED, 450 cd/m2, 1200:1, 16GB RAM, 128GB Storage, 2.1 40 W, HDMI 2.1, DisplayPort, ViewBoard OS EDLA

Key Features

• Enterprise-Grade Security
• Optimized for IT Management
• Engaging Meetings with ViewSonic® Software
• Ultra-Responsive PCAP Touch for Seamless Collaboration
• Instantaneous Collaboration
• Easy Access with Quick User Authentication
• Flexible Camera Integration

Description

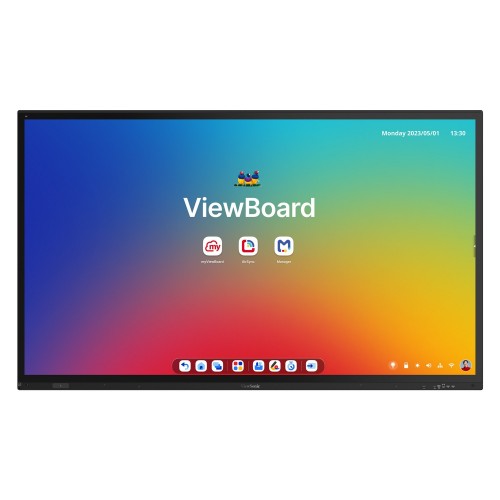

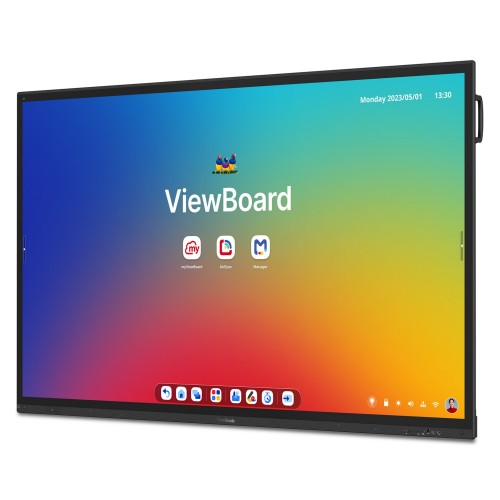

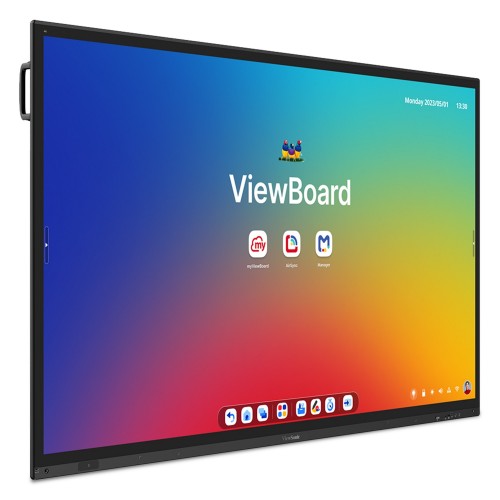

Elevate every meeting with the ViewSonic® ViewBoard® IFP8663 – an 86” interactive flat panel display designed to power productivity in modern boardrooms, conference spaces, and hybrid workflows. Featuring ultra-responsive Projected Capacitive (PCAP) touch technology and a stunning bezel-less 4K display, it ensures smooth, precise interactions and crystal-clear visuals that keep teams engaged. Built on the latest Android™ EDLA platform, it delivers enhanced security, seamless app integration, and future-proof performance. From dynamic brainstorming to high-stakes presentations, the IFP8663 combines enterprise-grade tools with intuitive design to make every session more efficient and impactful. Backed by ViewSonic’s robust software ecosystem and engineered for 24/7 reliability, this display is your scalable solution for driving collaboration, streamlining operations, and staying ahead in a fast-moving business world.

Enterprise-Grade Security
Safeguard your network and data with latest Android™ EDLA platform, featuring automatic Google updates, Google Play Protect, encrypted data storage, and two-way authentication. Seamless access to Microsoft 365 via the Google Play Store ensures secure productivity across platforms.

Optimized for IT Management
Streamline deployment and control with support for ViewSonic Manager, and Google Workspace Enterprise Management. IT teams can easily enforce policies, manage devices remotely, and maintain secure networks across multiple locations.

Engaging Meetings with ViewSonic® Software
Get more out of every meeting with included ViewSonic® software like TeamOne and AirSync—delivering a robust ecosystem for whiteboarding, team collaboration, and wireless content sharing at no additional cost.

Ultra-Responsive PCAP Touch for Seamless Collaboration
Experience ultra-smooth, high-precision interaction with PCAP touch technology. The edge-to-edge glass surface supports multi-user input, resists wear, and wipes clean easily—perfect for fast-paced, high-use environments.

Easy Access with Quick User Authentication
Sign in instantly via QR code, NFC badge, or Single Sign-On (SSO) for fast, secure access to personal cloud profiles—minimizing downtime and simplifying session transitions in shared environments.

Flexible Camera Integration
Choose from external camera options like the ViewSonic® 4K conference camera or Microsoft Teams Rooms kits to tailor your AV configuration without compromising aesthetics or security—no built-in camera means fewer vulnerabilities and greater flexibility.

Stunning 4K Visuals with Modern Design
Captivate every audience with ultra-sharp 4K visuals, housed in a premium, bezel-less display that elevates any meeting space. Edge-to-edge glass adds a clean, modern touch.

Immersive Audio for Maximum Engagement
Drive engagement in hybrid and in-person meetings with powerful, room-filling sound. A 60W soundbar with subwoofer and 8-mic beamforming array ensures every voice is heard clearly.

High-Performance Multitasking
Power through demanding applications with an octa-core processor and 16GB of RAM. An OPS slot allows for performance upgrades or integration with Windows-based systems.

Eco-Friendly & Energy Efficient
Support ESG goals without sacrificing performance. ENERGY STAR 8.0 certified, EPEAT Gold rated, RoHS compliant, and with an EEI F energy rating, the IFP63 Series helps reduce environmental impact and operational costs.

Smart Sensors for Smarter Workspaces
Built-in sensors automatically adjust brightness, enable instant annotation, monitor room conditions in real time, and activate energy-saving modes when no one’s present—enhancing comfort, efficiency, and sustainability in every meeting.

Specifications

Display
Display diagonal	86"
Working area	74.6 x 42" (1895 x 1066 mm)
Contrast ratio (typical)	5000:1
Touchscreen	Yes
Accuracy touch	Active pen: ±1.0mm, Passive pen: ±1.5mm
Touchscreen type	Projected Capacitive (PCAP)
Number of simultaneous touchpoints	50
Touch resolution	32767 x 32767 pixels
Panel type	ADS
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Response time	8 ms
Haze rate	25%
Touch technology	Multi-touch
Display brightness	450 cd/m²
Display resolution	3840 x 2160 pixels
Display number of colours	1.07 billion colors
HD type	4K Ultra HD
LED backlighting type	Direct-LED
Maximum refresh rate	60 Hz
Anti-glare screen	Yes
Native aspect ratio	16:9
Low Blue Light technology	Yes
Hardness	9H
LED backlight	Yes
Features
Display diagonal	86"
Working area	74.6 x 42" (1895 x 1066 mm)
Contrast ratio (typical)	5000:1
Touchscreen	Yes
Accuracy touch	Active pen: ±1.0mm, Passive pen: ±1.5mm
Touchscreen type	Projected Capacitive (PCAP)
Number of simultaneous touchpoints	50
Touch resolution	32767 x 32767 pixels
Panel type	ADS
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Response time	8 ms
Haze rate	25%
Touch technology	Multi-touch
Display brightness	450 cd/m²
Display resolution	3840 x 2160 pixels
Display number of colours	1.07 billion colors
HD type	4K Ultra HD
LED backlighting type	Direct-LED
Maximum refresh rate	60 Hz
Anti-glare screen	Yes
Native aspect ratio	16:9
Low Blue Light technology	Yes
Hardness	9H
LED backlight	Yes
Product colour	Black
Operating system installed	Android
Computer system
Operating system installed	Android
Built-in processor	Yes
User memory	128 GB
Processor cores	8
RAM capacity	16 GB
Processor architecture	ARM Cortex A76 + ARM Cortex A55
Operating system version	15 EDLA
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
Speaker power	40 W
Built-in subwoofer	Yes
Subwoofer RMS power	20 W
Number of microphone arrays	8
Built-in microphone	Yes
Projector
Built-in projector	No
Contrast ratio (typical)	5000:1
Network
Wi-Fi	Yes
Near Field Communication (NFC)	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes
Wake-on-LAN ready	Yes
Ports & interfaces
USB 2.0 ports quantity	1
USB connector type	USB Type-A, USB Type-B, USB Type-C
HDMI ports quantity	4
Ethernet LAN (RJ-45) ports	2
Microphone connectivity	3.5 mm
Headphone connectivity	3.5 mm
RS-232 ports	1
USB Type-C ports quantity	3
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.2
S/PDIF out port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	3
Audio output	1
USB Power Delivery up to	100 W
USB Power Delivery (USB PD)	Yes
OPS slot	1
Wi-Fi	Yes
Near Field Communication (NFC)	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes
Ergonomics
Product colour	Black
VESA mounting	Yes
Panel mounting interface	800 x 600 mm
Mean time between failures (MTBF)	50000 h
USB cable length	70.9" (1.8 m)
Performance
Proximity sensor	Yes
Temperature sensor	Yes
Ambient light sensor	Yes
Humidity sensor	Yes
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
PM2.5 sensor	Yes
Remote control included	Yes
Mean time between failures (MTBF)	50000 h
Power
Power consumption (typical)	121.1 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
Energy efficiency class	F
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Technical details
Working area	74.6 x 42" (1895 x 1066 mm)
Touchscreen	Yes
Accuracy touch	Active pen: ±1.0mm, Passive pen: ±1.5mm
Panel type	ADS
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Response time	8 ms
Haze rate	25%
Quantity per pack	1 pc(s)
Pallet gross width	84.3" (2.14 m)
Pallet gross length	44.9" (114 cm)
Pallet gross height	55.8" (141.7 cm)
Products per master (outer) case	1 pc(s)
Sustainability certificates	ENERGY STAR, EPEAT
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), NCC, RoHS, WEEE, cTUVus
Remote control included	Yes
Weight & dimensions
Width	77.2" (1961.9 mm)
Depth	3.13" (79.5 mm)
Height	46.2" (1172.5 mm)
Weight	143.5 lbs (65.1 kg)
Packaging data
Package width	83.1" (2110 mm)
Package depth	8.86" (225 mm)
Package height	50.8" (1291 mm)
Package weight	185.6 lbs (84.2 kg)
Quantity per pack	1 pc(s)
Stylus included	Yes
Packaging content
Cables included	HDMI, USB, USB Type-C
Stylus included	Yes
Quick start guide	Yes
Remote control included	Yes
Batteries included	Yes
USB cable length	70.9" (1.8 m)
Number of stylus pens	2
Processor
Built-in processor	Yes
Processor cores	8
Processor architecture	ARM Cortex A76 + ARM Cortex A55
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), NCC, RoHS, WEEE, cTUVus
Memory
User memory	128 GB
RAM capacity	16 GB
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Colour
Product colour	Black
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Logistics data
Pallet gross width	84.3" (2.14 m)
Pallet gross length	44.9" (114 cm)
Pallet gross height	55.8" (141.7 cm)
Products per master (outer) case	1 pc(s)
