2200 VA, 1920 W, LCD, USB, 2U, LIFePO4, 438 x 510 x 88 mm, 39.7 Kg

Description

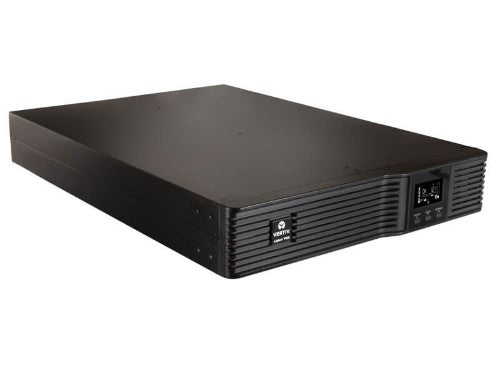

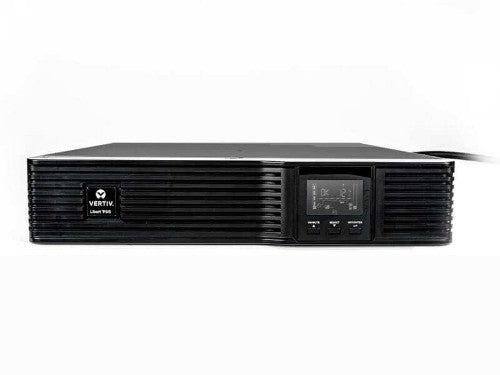

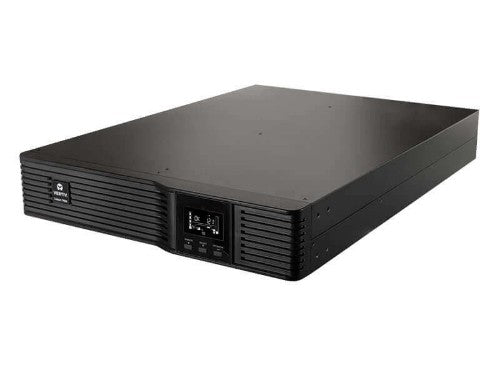

The Liebert® PSI5 Lithium-Ion UPS is ideally suited to protect critical infrastructure in edge or distributed IT applications. Lithium-ion batteries have a life expectancy of 8-10years, which is up to 3 times longer than VRLA batteries. That translates to fewer (if any) battery replacements over the lifespan of the UPS, which means savings on batteries as well as the labor to install them – an especially important issue at remote locations with few or no IT personnel on site. It adds up to more than 50% lower total cost of ownership vs. VLRA batteries. The Liebert PSI5 Lithium-Ion line interactive UPS includes automatic voltage regulation (AVR) technology, which protects against utility voltage fluctuation to extend battery life by maximizing time on utility power, and provides premium protection from power disturbances. In battery mode, the Liebert PSI5 UPS delivers pure sine wave output to protect sensitive servers and networking equipment. With up to 20 min. of runtime at half load and 9 min. at full load – more than comparable competing models – the Liebert PSI5 Lithium-Ion UPS provides plenty of runtime during an outage for an orderly shutdown. It comes with a rotating LCD display to allow both rack and tower configurations, provides real time information regarding UPS status and operating conditions, and supports remote monitoring. It's also highly energy efficient, delivering up to 97% efficiency at full load in normal operating mode. You can rest assured your business is protected with this Vertiv solution, which includes a 5-year full factory warranty. The Liebert PSI5 Lithium-Ion UPS is a true low-maintenance, set-it-and-forget-it solution.

Specifications

Power
Output power capacity	1.92 kVA
Output power	1920 W
Input operation voltage (min)	75 V
Input operation voltage (max)	146 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Surge energy rating	1372 J
Maximum current	20 A
Efficiency	96%
Emergency Power Off (EPO)	Yes
Output frequency	57/63 Hz
Input frequency	55/65 Hz
Ports & interfaces
Cable length	118.1" (3 m)
AC outlets quantity	7 AC outlet(s)
AC outlet types	NEMA 5-15R, NEMA L5-20R
Power plug	NEMA 5-20
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Cabling technology	10/100Base-T
USB 2.0 ports quantity	1
USB port type	USB Type-B
Performance
UPS topology	Line-Interactive
Number of output phases	1
Number of input phases	1
Response time	6 ms
Surge protection	Yes
Waveform	Pure sine
Power protection features	Charge overcurrent, Short circuit
Automatic Voltage Regulation (AVR)	Yes
Noise level	55 dB
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	1.92 kVA
Number of output phases	1
Number of input phases	1
Response time	6 ms
Output power	1920 W
Input operation voltage (min)	75 V
Input operation voltage (max)	146 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Surge energy rating	1372 J
Maximum current	20 A
Efficiency	96%
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Pure sine
Power protection features	Charge overcurrent, Short circuit
Output frequency	57/63 Hz
Automatic Voltage Regulation (AVR)	Yes
Noise level	55 dB
Audible alarm(s)	Yes
Input frequency	55/65 Hz
Battery
Battery technology	Lithium Iron Phosphate (LiFePO4)
Number of battery cells	2
Design
Form factor	Rackmount/Tower
Rack capacity	2U
Product colour	Black
Safety	UL 1778, c-UL-us
Cable length	118.1" (3 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	20 - 90%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	57/63 Hz
Packaging content

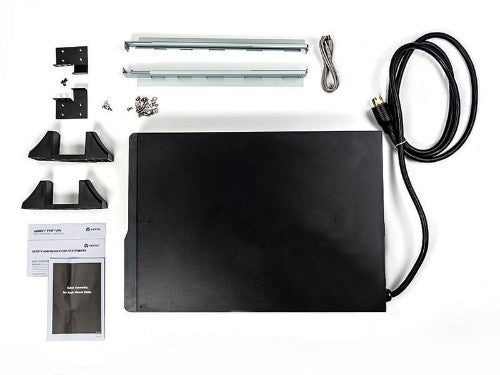

Rack mount kit	Yes
Manual	Yes
Safety regulation & standards
Safety	UL 1778, c-UL-us
Weight & dimensions
Width	17.2" (438 mm)
Depth	20.1" (510 mm)
Height	3.46" (88 mm)
Weight	87.5 lbs (39.7 kg)
Package width	10.2" (258 mm)
Package depth	26.5" (672 mm)
Package height	21.7" (550 mm)
Package weight	118.6 lbs (53.8 kg)
Packaging data
Rack mount kit	Yes
Manual	Yes
Package width	10.2" (258 mm)
Package depth	26.5" (672 mm)
Package height	21.7" (550 mm)
Package weight	118.6 lbs (53.8 kg)
Certificates
Safety	UL 1778, c-UL-us
