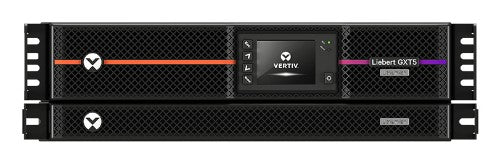

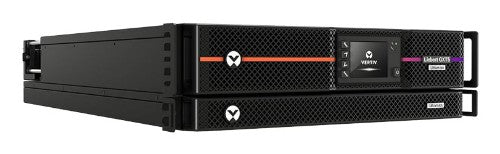

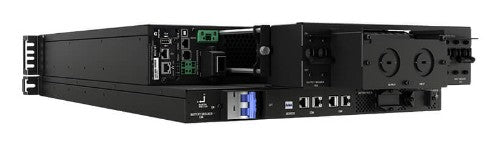

Liebert GXT Lithium-Ion 6000VA, 120V/208V Online UPS
Key Features
- Lowest total cost of ownership over the lifetime of the UPS. The expected useful life of the Lithium-Ion batteries is up to 3 times that of VRLA batteries which translates into fewer battery replacements over the life of the UPS
- Lithium-Ion battery technology delivers more runtime and faster recharge time, and offers better performance at higher temperatures and supports up to 10 times more discharge cycles compared to standard VRLA batteries
- The internal UPS battery offers industry-leading runtimes (up to 14 minutes at full load) to ensure availability of critical applications during an unexpected power loss
- Certified to meet industry UPS and lithium-ion standards such as UL 1778, UL 1973, and UL 1642, which ensures it's safe to use in your critical IT environments
- Hot-swappable, user replaceable batteries allow you to easily replace the batteries, if needed, without disrupting power to the connected equipment
Description
Vertiv™ Liebert® GXT5 Lithium-Ion online UPS protects critical IT applications against outages and power disturbances. It offers highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as VRLA batteries reducing maintenance, labor, and replacement costs (lower TCO). Hot-swappable, user-replaceable batteries increase the useable life of the UPS.
Specifications
| Power |
|---|
| Output power capacity |
6 kVA |
| Output power |
6000 W |
| Input operation voltage (min) |
120 V |
| Input operation voltage (max) |
240 V |
| Input frequency |
40/70 Hz |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Response time |
0 ms |
| Waveform |
Pure sine |
| Noise level |
58 dB |
| LED indicators |
Yes |
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
6 kVA |
| Response time |
0 ms |
| Output power |
6000 W |
| Input operation voltage (min) |
120 V |
| Input operation voltage (max) |
240 V |
| Waveform |
Pure sine |
| Noise level |
58 dB |
| Input frequency |
40/70 Hz |

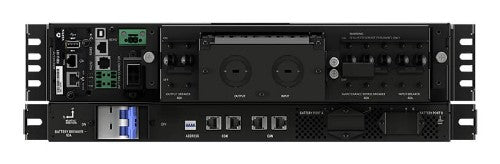

| Ports & interfaces |
|---|
| AC outlet types |
Hardwire |
| Power plug |
Hardwire |
| USB port |
Yes |
| Serial interface |
Yes |
| Battery |
|---|
| Battery technology |
Lithium Iron Phosphate (LiFePO4) |
| Battery recharge time |
2 h |
| Typical backup time at half load |
21 min |
| Typical backup time at full load |
10 min |
| Design |
|---|
| Form factor |
Rackmount/Tower |
| Rack capacity |
3U |
| Product colour |
Black |
| LED indicators |
Yes |
| Control type |
Buttons |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Technical details |
|---|
| Compliance certificates |
REACH, RoHS, WEEE |
| Certificates |
|---|
| Compliance certificates |
REACH, RoHS, WEEE |
| Weight & dimensions |
|---|
| Width |
16.9" (430 mm) |
| Depth |
35" (890 mm) |
| Height |
5.24" (133 mm) |
| Weight |
100.1 lbs (45.4 kg) |
| Package width |
31.4" (798 mm) |
| Package depth |
39.3" (998 mm) |
| Package height |
20.9" (532 mm) |
| Package weight |
158.7 lbs (72 kg) |
| Packaging data |
|---|
| Package width |
31.4" (798 mm) |
| Package depth |
39.3" (998 mm) |
| Package height |
20.9" (532 mm) |
| Package weight |
158.7 lbs (72 kg) |
