SmartRack 42U Standard-Depth Rack Enclosure Cabinet with Doors and Side Panels
Key Features
- 42U rack constructed from powder-coated steel that stands up to tough environments
- Maximum capacity: 3500 lb. (1588 kg) stationary, 2250 lb. (1021 kg) rolling load
- Doors and side panels lock securely to help prevent damage, tampering or theft
- Ships fully assembled for immediate deployment and equipment mounting
- Provides physical equipment and media security required for PCI DSS compliance
Description
Standard-Depth 42U Server Cabinet Accommodates 19 in. Rack EquipmentThis SmartRack® 42U rack enclosure is designed for server rooms, IT closets, micro data centers, edge computing applications and other environments with essential rack-mount IT equipment. Constructed from heavy-duty steel with a durable black powder-coated finish, the SR42UB has a maximum stationary load capacity of 3500 pounds (1588 kilograms) and a maximum rolling load capacity of 2250 pounds (1022 kilograms).

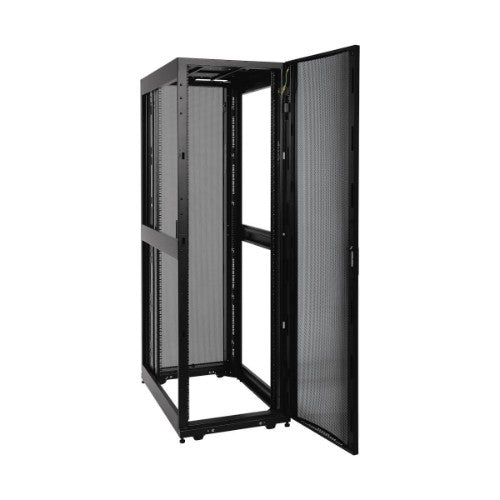

Keeps Important Equipment SecureThe reversible front and back doors and removable side panels lock securely with the included keys to help prevent damage, tampering or theft. The doors and side panels are designed for quick release, making it simple to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors allow generous airflow from front to rear to keep your equipment cool and functioning at its peak.

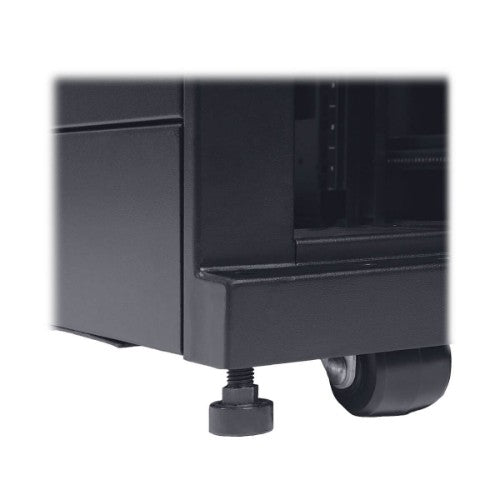

Easy Enclosure and Equipment InstallationThis 42U server rack comes fully assembled for quick and easy deployment with pre-installed (and removable) casters that let you maneuver it over a level surface and through a standard doorway into position, where it can be stabilized by adjusting the levelers (also removable). Front and rear mounting rails accept standard rack equipment up to 37 inches (940 millimeters) deep. Toolless 0U mounting rails allow quick installation of up to four compatible PDUs and vertical cable managers.
Designed for Baying Multiple Enclosures in a RowBuilt-in baying brackets allow the combination of two or more rack cabinets in a row. Center-to-center width can be set at 24 inches (600 millimeters) to match standard data center floor tiles.
Meets Payment Card Industry StandardsThe SR42UB provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.
Specifications
| Weight & dimensions |
|---|
| Package width |
26" (660.4 mm) |
| Package depth |
45" (1143 mm) |
| Package height |
85" (2159 mm) |
| Package weight |
336 lbs (152.4 kg) |
| Width |
23.6" (600.2 mm) |
| Depth |
43" (1092.2 mm) |
| Height |
78.5" (1993.9 mm) |
| Weight |
285.9 lbs (129.7 kg) |
| Features |
|---|
| Type |
Freestanding rack |
| Rack capacity |
42U |
| Maximum weight capacity |
3000.5 lbs (1361 kg) |
| Product colour |
Black |
| Packaging data |
|---|
| Package width |
26" (660.4 mm) |
| Package depth |
45" (1143 mm) |
| Package height |
85" (2159 mm) |
| Package weight |
336 lbs (152.4 kg) |
| Technical details |
|---|
| Harmonized System (HS) code |
8517.79.0000 |
| Rack capacity |
42U |
| Logistics data |
|---|
| Master (outer) case width |
26" (660.4 mm) |
| Master (outer) case length |
45" (1143 mm) |
| Master (outer) case height |
85" (2159 mm) |
| Master (outer) case gross weight |
336 lbs (152.4 kg) |
| Products per master (outer) case |
1 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
8517.79.0000 |
