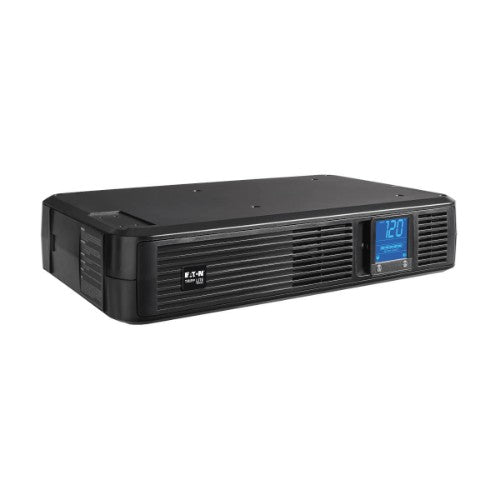

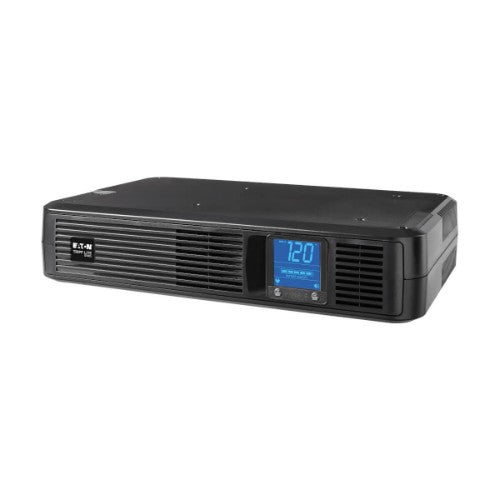

Tripp Lite SMART1500LCDXL uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 900 W 8 AC outlet(s)

SmartPro LCD 120V 1500VA 900W Line-Interactive UPS, Extended Run, 2U Rack/Tower, LCD Display, USB, DB9 Serial

Description

Tripp Lite's SMART1500LCDXL Line-Interactive UPS System offers network-grade voltage regulation, surge suppression and long-lasting battery support, ideal for network equipment, phone systems, desktop PCs and home entertainment systems. Uninterruptible Power Supply / UPS system provides battery derived AC output to maintain continuous operation of connected equipment without data-loss during power failures and severe voltage fluctuations. Runtime is expandable with one additional BP24V15RT2U external battery pack. Interactive LCD display offers detailed site voltage and UPS status information, plus a variety of UPS control options. High 97% efficient line power mode operation offers reduced UPS energy consumption and BTU heat output. Automatic Voltage Regulation / AVR circuits boost brownouts and reduce overvoltages from 75V to 147V to safe 120V nominal levels without using battery power. Included mounting accessories enable 2U horizontal rackmount installation in 2 and 4 post racks or upright tower installation. Built-in USB and DB9 serial port enables optional unattended system shutdown in case of extended power failure using PowerAlert UPS management software. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in data line surge suppression jacks offer protection for equipment with single-line dialup, DSL or network Ethernet connection.
- SMART1500LCDXL Line Interactive UPS offers network-grade voltage regulation, surge suppression and long lasting battery support
- Space-saving angled NEMA 5-15P input plug; 6ft / 1.8m line cord
- 8 battery-supported NEMA 5-15R outlets
- Maintains operation of connected equipment during power failures and voltage fluctuations
- Runtime is expandable with one additional BP24V15RT2U external battery pack
- LCD display reports numeric and icon-based UPS status and site power data
- Select and scroll buttons enable access to UPS control, operating and LCD display settings
- Numeric display reports Input Voltage, Output Voltage, Battery Charge Percentage, Output Load Percentage, Output Load Wattage and Estimated Minutes Runtime data
- Icon-based display items include 5 "bar" battery capacity, UPS operating status, replace battery and voltage regulation status
- Control-mode LCD options enable external battery configuration, alarm on/off control, self-test and LCD brightness
- Front-panel LCD screen rotates for horizontal or vertical installation options
- 97% line power mode efficiency operation
- Line Interactive Automatic Voltage Regulation / AVR circuits correct brownouts and overvoltages from 75 to 147V

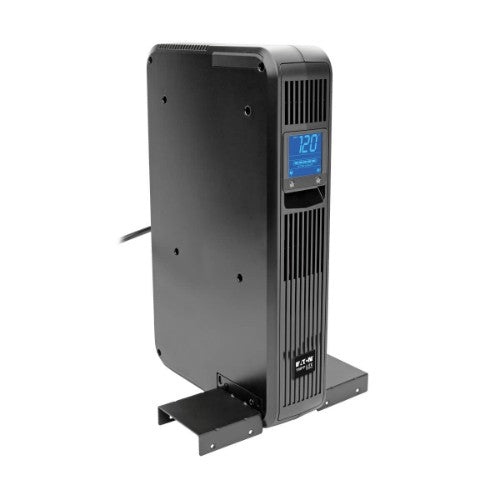

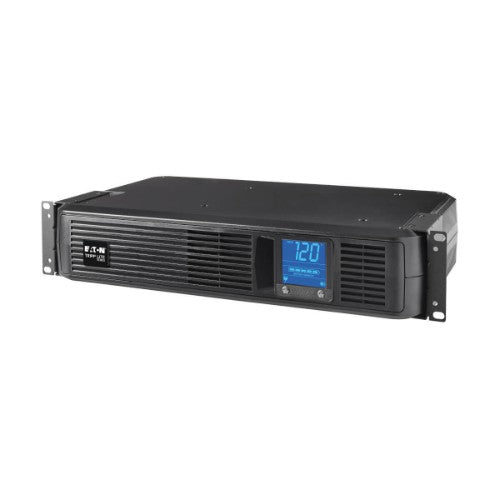

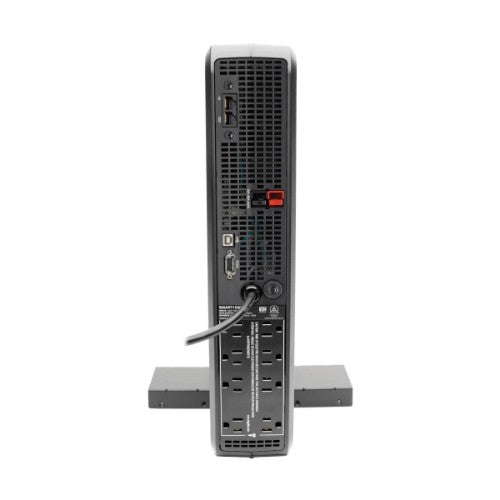

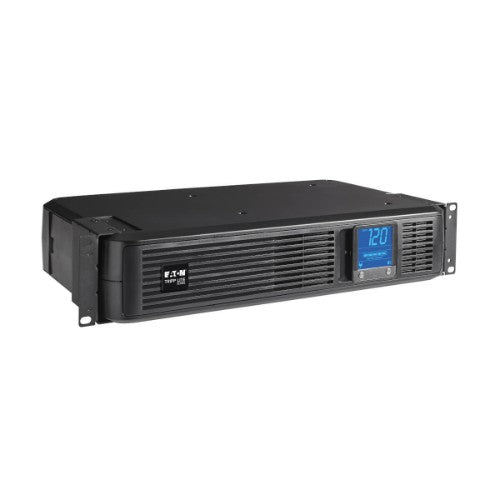

- Included mounting accessories for 2U rackmount and tower installation

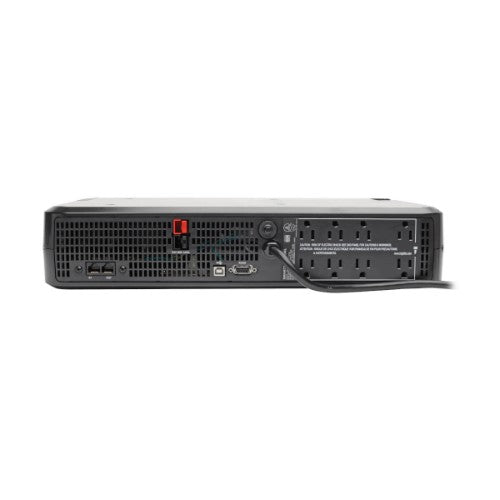

- USB and DB9 serial ports enable optional unattended system shutdown using PowerAlert UPS management software available via free download
- HID-compliant USB interface enable integration with built-in power management and auto shutdown features of Windows and Mac OS X
- DB9 serial port also supports contact closure signaling for on-battery and power-restored messaging
- Built-in data line surge suppression jacks offer protection for equipment with single-line dialup or PoE compatible network ethernet connection

Specifications

Power
Output power capacity	1.5 kVA
Output power	900 W
Input operation voltage (min)	75 V
Input operation voltage (max)	147 V
Output operation voltage (min)	115 V
Output operation voltage (max)	120 V
Surge energy rating	1038 J
Maximum current	8.5 A
Efficiency	95%
Output voltage regulation	-18%, +8%%
Input frequency	60 Hz
Ports & interfaces
Cable length	70.9" (1.8 m)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
USB 2.0 ports quantity	1
Serial ports quantity	1
Performance
UPS topology	Line-Interactive
Number of input phases	1
EMI/RFI noise filtering	Yes
Surge protection features	Network, Telephone
Waveform	Sine
Power protection features	Over voltage, Under voltage
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	1.5 kVA
Country of origin	Vietnam
Number of input phases	1
Output power	900 W
Input operation voltage (min)	75 V
Input operation voltage (max)	147 V
Output operation voltage (min)	115 V
Output operation voltage (max)	120 V
Surge energy rating	1038 J
Maximum current	8.5 A
Efficiency	95%
EMI/RFI noise filtering	Yes
Surge protection features	Network, Telephone
Waveform	Sine
Power protection features	Over voltage, Under voltage
Output voltage regulation	-18%, +8%%
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Input frequency	60 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4.5 h
Typical backup time at half load	12 min
Typical backup time at full load	4 min
Cold start	Yes
Design
Form factor	Rackmount/Tower
Country of origin	Vietnam
Rack capacity	2U
Product colour	Black
Certification	UL1778, CSA, NOM, FCC
Cable length	70.9" (1.8 m)
Cooling type	Active
LED indicators	Yes
Housing material	Acrylonitrile butadiene styrene (ABS)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Technical details
Compliance certificates	RoHS
Certificates
Certification	UL1778, CSA, NOM, FCC
Compliance certificates	RoHS
Cooling
Cooling type	Active
Weight & dimensions
Width	17.3" (440.2 mm)
Depth	10.7" (271.3 mm)
Height	3.49" (88.6 mm)
Weight	29.3 lbs (13.3 kg)
Package width	21.8" (553 mm)
Package depth	15.3" (388.1 mm)
Package height	7.8" (198.1 mm)
Package weight	35.9 lbs (16.3 kg)
Packaging data
Package width	21.8" (553 mm)
Package depth	15.3" (388.1 mm)
Package height	7.8" (198.1 mm)
Package weight	35.9 lbs (16.3 kg)
Logistics data
Country of origin	Vietnam
Products per master (outer) case	1 pc(s)
Master (outer) case width	21.8" (553 mm)
Master (outer) case length	15.3" (388.1 mm)
Master (outer) case height	7.8" (198.1 mm)
Master (outer) case gross weight	33.5 lbs (15.2 kg)
