Tripp Lite SMART1000RM2U uninterruptible power supply (UPS) Line-Interactive 1 kVA 800 W 6 AC outlet(s)

SmartPro, 800W, 1000VA, 120V AC, 60Hz, 15A, LCD, 570J

Description

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 95% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

- Tripp Lite SMART1000RM2U line interactive 2U rack/tower UPS with 1000VA / 1kVA / 800W capacity
- Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V

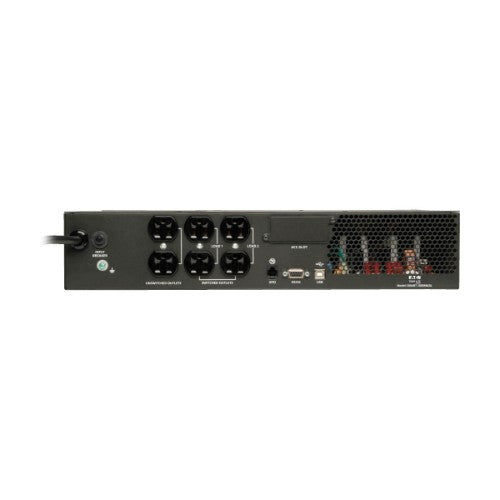

- NEMA 5-15P input plug; 6 NEMA 5-15R output receptacles, Two independently switchable output load banks
- Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
- High 95% efficiency rating in line-power mode offers reduced power consumption and BTU emissions
- Internal batteries offer 15 minutes at 50% load (400W) and 5.3 minutes at 100% load (800W)
- Hot-swappable, user-replaceable internal batteries can be replaced with no disruption to connected equipment

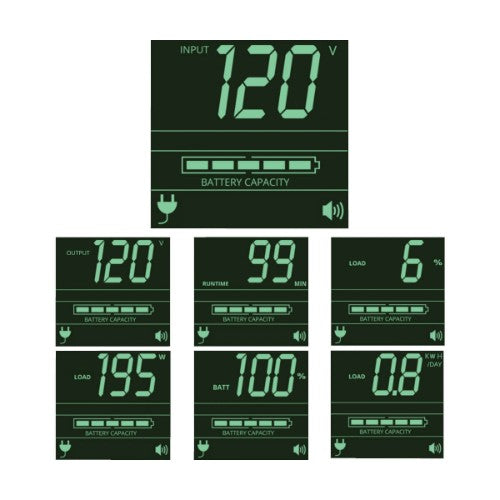

- Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
- LCD interface also supports a number of advanced user setup and operating preferences

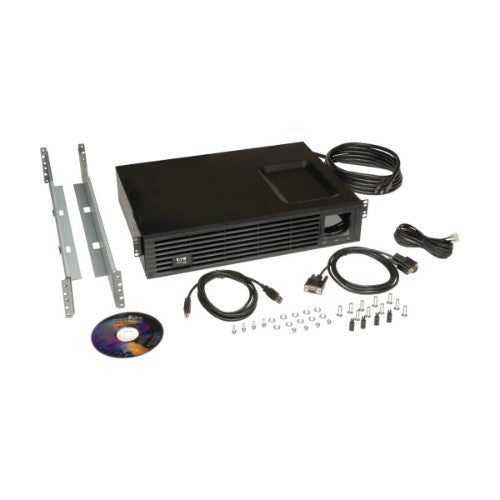

- Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
- Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options
- HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable

Specifications

Power
Output power capacity	1 kVA
Output power	800 W
Input operation voltage (max)	120 V
Output operation voltage (max)	120 V
Surge energy rating	570 J
Maximum current	15 A
Output voltage regulation	-21 - 8%
Output frequency regulation	60 Hz
Ports & interfaces

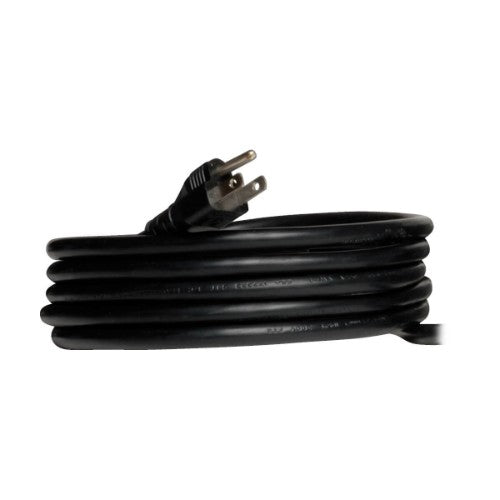

Cable length	118.1" (3 m)
AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
USB 2.0 ports quantity	2
Serial ports quantity	1
Modem (RJ-11) ports	1
Performance
UPS topology	Line-Interactive
EMI/RFI noise filtering	Yes
Surge protection	Yes
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	1 kVA
Country of origin	Taiwan
Output power	800 W
Input operation voltage (max)	120 V
Output operation voltage (max)	120 V
Surge energy rating	570 J
Maximum current	15 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Output voltage regulation	-21 - 8%
Output frequency regulation	60 Hz
Audible alarm(s)	Yes
Battery
Battery recharge time	4 h
Typical backup time at half load	15 min
Typical backup time at full load	5.3 min
Hot-swap battery	Yes
Battery voltage	24 V
Design
Form factor	Rackmount
Country of origin	Taiwan
Rack capacity	2U
Product colour	Black
Certification	UL1778, CSA, NOM, FCC
Cable length	118.1" (3 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Certificates
Certification	UL1778, CSA, NOM, FCC
Weight & dimensions
Width	17.4" (440.7 mm)
Depth	12.5" (317.5 mm)
Height	3.45" (87.6 mm)
Weight	35.5 lbs (16.1 kg)
Package width	18.6" (472.4 mm)
Package depth	22.9" (581.7 mm)
Package height	8.8" (223.5 mm)
Package weight	42.5 lbs (19.3 kg)
Packaging data
Package width	18.6" (472.4 mm)
Package depth	22.9" (581.7 mm)
Package height	8.8" (223.5 mm)
Package weight	42.5 lbs (19.3 kg)
Logistics data
Country of origin	Taiwan
Products per master (outer) case	1 pc(s)
Master (outer) case width	18.6" (472.4 mm)
Master (outer) case length	22.9" (581.7 mm)
Master (outer) case height	8.8" (223.5 mm)
Master (outer) case gross weight	42.5 lbs (19.3 kg)
Other features
Non-operating relative humidity (non-condensing)	0 - 95%
