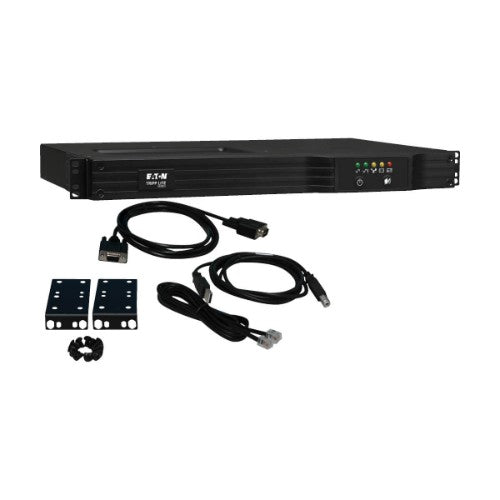

SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS, SNMP, Webcard, 1U Rack, USB, DB9 Serial
Description
Tripp Lite SMART1000RM1U 1000VA / 1kVA / 800 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Simultaneous-use network management interfaces include USB, RS-232 and optional SNMP/Web accessory card. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets.
- Tripp Lite SMART1000RM1U 1kVA / 1000VA / 800 watt line interactive UPS
- 1U rack/tower compatible form factor
- Included mounting brackets support 2 and 4 post rackmount installation; Optional 4POSTRAILKIT1U is available for additional support
- NEMA 5-15P input; 6 5-15R output receptacles
- Installed depth of only 16.75 in. / 42.5cm
- Sine wave output in both AC and battery backup modes
- Line Interactive UPS provides Automatic Voltage Regulation / AVR to maintain 120V nominal output during brownouts to 83V and overvoltages to 147V without using battery power
- Full load efficiency rating of 99% saves energy and ensures cool operating temperatures
- Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
- PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries become depleted
- Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA (Network Shutdown Agent) for larger networks and PowerAlert NMS (Network Management System) for monitoring up to 250 SNMP-enabled UPS, PDU and other networking devices
- Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces
- Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces
- 3 stage metered LEDs offer current monitoring and battery charge level
- Mains power and voltage regulation LEDs offer at-a-glance power status information
- Front panel switches support self-test and alarm cancel functions
- Field replaceable, hot-swappable internal UPS batteries
Specifications
| Power |
|---|
| Output power capacity |
1 kVA |
| Output power |
800 W |
| Input operation voltage (min) |
83 V |
| Input operation voltage (max) |
147 V |
| Output operation voltage (min) |
120 V |
| Surge energy rating |
450 J |
| Maximum current |
9.2 A |
| Efficiency |
94% |
| Emergency Power Off (EPO) |
Yes |
| Power factor |
0.8 |
| Input frequency |
60 Hz |
| Ports & interfaces |
|---|
| Cable length |
118.1" (3 m) |
| AC outlets quantity |
5 AC outlet(s) |
| AC outlet types |
NEMA 5–15R |
| Power plug |
NEMA 5-15P |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Number of input phases |
1 |
| EMI/RFI noise filtering |
Yes |
| Waveform |
Sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| LED indicators |
Yes |
| Audible alarm(s) |
Yes |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Output power capacity |
1 kVA |
| Country of origin |
Taiwan |
| Number of input phases |
1 |
| Output power |
800 W |
| Input operation voltage (min) |
83 V |
| Input operation voltage (max) |
147 V |
| Output operation voltage (min) |
120 V |
| Surge energy rating |
450 J |
| Maximum current |
9.2 A |
| Efficiency |
94% |
| EMI/RFI noise filtering |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Waveform |
Sine |
| Power factor |
0.8 |
| Automatic Voltage Regulation (AVR) |
Yes |
| Audible alarm(s) |
Yes |
| Input frequency |
60 Hz |
| Battery |
|---|
| Battery recharge time |
4 h |
| Typical backup time at half load |
14 min |
| Typical backup time at full load |
4 min |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Design |
|---|
| Form factor |
Rackmount |
| Country of origin |
Taiwan |
| Rack capacity |
1U |
| Product colour |
Black |
| Cable length |
118.1" (3 m) |
| Cooling type |
Active |
| LED indicators |
Yes |
| Housing material |
Steel |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
| Cooling |
|---|
| Cooling type |
Active |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Width |
17.5" (444.5 mm) |
| Depth |
16.7" (425.4 mm) |
| Height |
1.75" (44.4 mm) |
| Weight |
32 lbs (14.5 kg) |
| Package width |
21.3" (541 mm) |
| Package depth |
22.9" (581.7 mm) |
| Package height |
5.3" (134.6 mm) |
| Package weight |
35.9 lbs (16.3 kg) |
| Packaging data |
|---|
| Package width |
21.3" (541 mm) |
| Package depth |
22.9" (581.7 mm) |
| Package height |
5.3" (134.6 mm) |
| Package weight |
35.9 lbs (16.3 kg) |
| Logistics data |
|---|
| Country of origin |
Taiwan |
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case width |
21.3" (541 mm) |
| Master (outer) case length |
22.9" (581.7 mm) |
| Master (outer) case height |
5.3" (134.6 mm) |
| Master (outer) case gross weight |
35.1 lbs (15.9 kg) |
| Other features |
|---|
| I/O ports |
6 x NEMA 5-15R |
| Weight (imperial) |
32 lbs |
| Non-operating relative humidity (non-condensing) |
0 - 95% |
