Tripp Lite SM2200RMXL2UPN uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1920 W 8 AC outlet(s)

SmartPro 120V 2200VA 1920W Line-Interactive Sine Wave UPS, 2U, Extended Run, WEBCARDLX, LCD, USB, DB9

Description

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Communications interfaces support communications via USB, DB9 serial and slot for optional network management card options. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert monitoring software is available for free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

- Tripp Lite SM2200RMXL2UP line interactive 2U rack/tower UPS with 2200VA / 2.2kVA / 1920W capacity and extended runtime options
- Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V

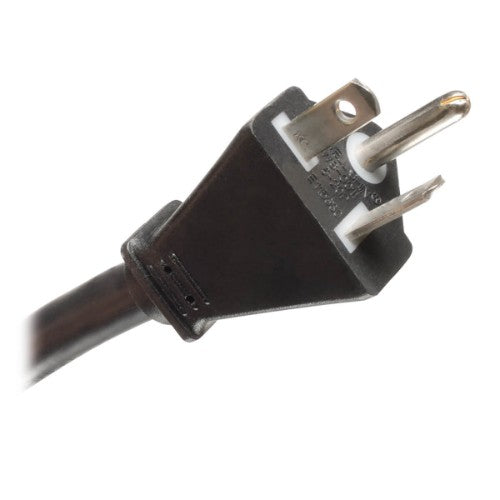

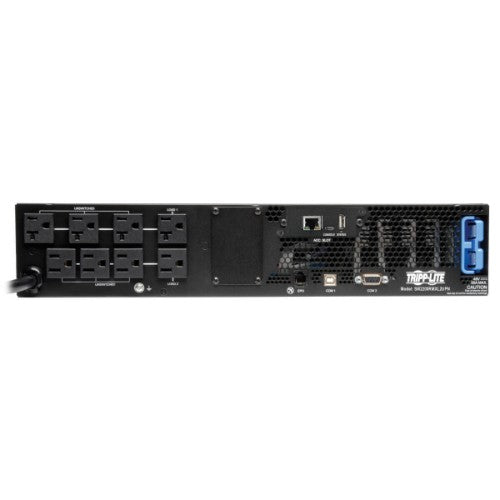

- NEMA 5-20P input plug; 4 NEMA 5-15/20R and 4 5-15R output receptacles, Two independently switched output load banks
- Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
- High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
- Internal batteries offer 12 minutes at 50% load (960W) and 4.5 minutes at 100% load (1920W)
- Extended runtime is available with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible), Supports 1920 watts in standalone or extended run configurations
- External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
- Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
- Intelligent battery management system extends battery life

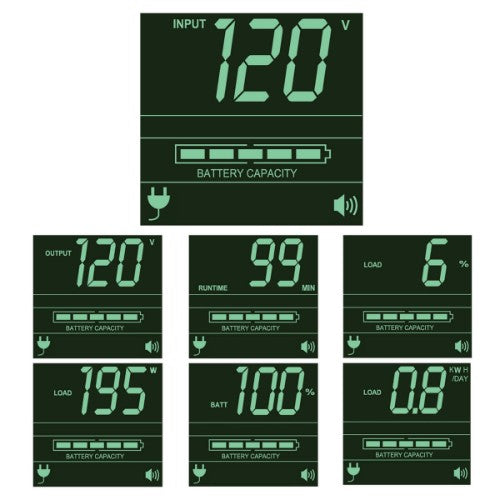

- Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
- LCD interface also supports a number of advanced user setup and operating preferences

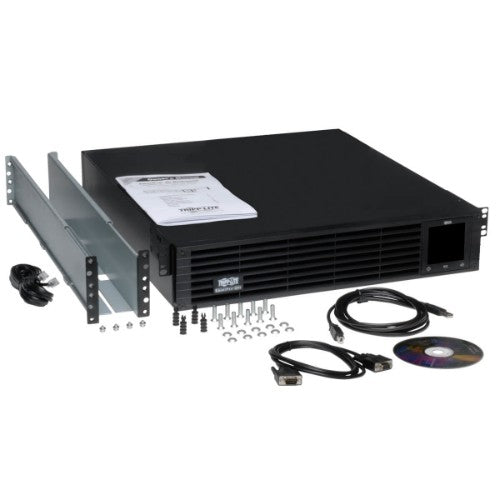

- Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
- Built-in USB, DB9 and EPO (Emergency Power Off) interfaces
- Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD
- HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- USB & DB9 ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
- Built-in Emergency Power Off (EPO) interface with cable

Specifications

Power
Output power capacity	2.2 kVA
Output power	1920 W
Input operation voltage (max)	120 V
Output operation voltage (min)	110 V
Output operation voltage (max)	120 V
Surge energy rating	570 J
Maximum current	16 A
Efficiency	96%
Output power factor	0.87
Output frequency	50/60 Hz
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Number of input phases	1
Audible alarm modes	Fault
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Power protection features	Over voltage, Under voltage
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	2.2 kVA
Country of origin	China
Number of input phases	1
Audible alarm modes	Fault
Output power	1920 W
Input operation voltage (max)	120 V
Output operation voltage (min)	110 V
Output operation voltage (max)	120 V
Surge energy rating	570 J
Maximum current	16 A
Efficiency	96%
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Power protection features	Over voltage, Under voltage
Output power factor	0.87
Output frequency	50/60 Hz
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R, NEMA 5–20R
USB port	Yes
Battery
Battery recharge time	4.5 h
Typical backup time at half load	16 min
Typical backup time at full load	6 min
Hot-swap battery	Yes
Cold start	Yes
Design
Form factor	Tower
Country of origin	China
Rack capacity	2U
Product colour	Black
Certification	UL1778, CSA, NOM, FCC
LED indicators	Yes
Housing material	Steel
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	5 - 95%
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Certificates
Certification	UL1778, CSA, NOM, FCC
Compliance certificates	RoHS
Packaging content
Rack mount kit	Yes
Manual	Yes
Weight & dimensions
Width	17.5" (444.5 mm)
Depth	19" (482.6 mm)
Height	3.5" (88.9 mm)
Weight	63.9 lbs (29 kg)
Package width	21.7" (551.2 mm)
Package depth	24" (609.6 mm)
Package height	8.8" (223.5 mm)
Package weight	80 lbs (36.3 kg)
Packaging data
Rack mount kit	Yes
Manual	Yes
Package width	21.7" (551.2 mm)
Package depth	24" (609.6 mm)
Package height	8.8" (223.5 mm)
Package weight	80 lbs (36.3 kg)
Logistics data
Country of origin	China
Products per master (outer) case	1 pc(s)
