5.8kW Single-Phase Metered PDU, 208/240V Outlets (16 C13 & 2 C19), L6-30P, 12ft Cord, 2U Rack-Mount
Description
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital current metering. Enables visual monitoring of PDU output current to preserve proper output balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 30A single phase 208/240V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)

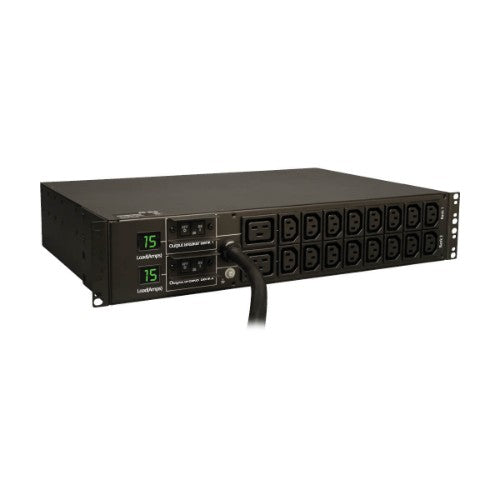

- Set of two lighted meters report PDU output current in amps for each 9 outlet load bank

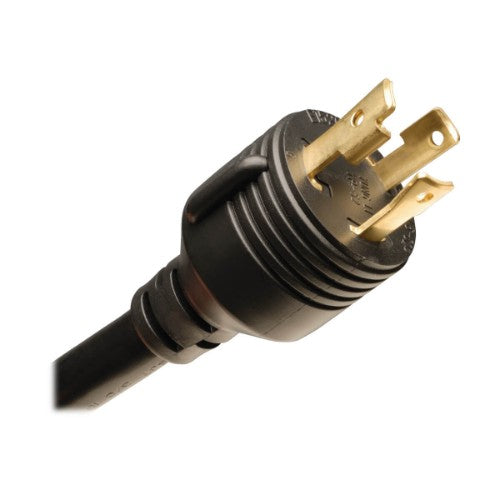

- Attached NEMA L6-30P 30A 208/240V input plug and 12ft / 3.6m cord
- 2U horizontal rackmount format installs in two rack spaces

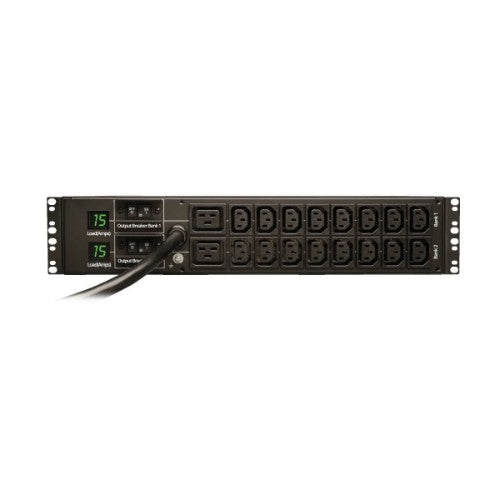

- 18 output receptacles (16 C13, 2 C19)
- Outlets are arranged in two 9 outlet load banks, each with separate 20A breaker and current metering

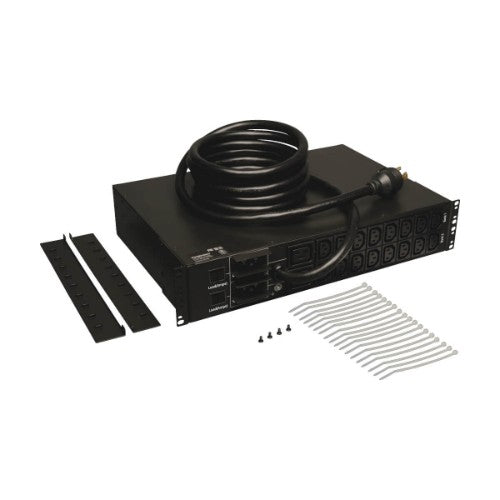

- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Cord retention brackets keep vital equipment plugs connected
- Grounding lug
- TAA Compliant Version Available - Order Tripp Lite PDUMH30HVTAA
Specifications
| Design |
|---|
| PDU types |
Metered |
| Mounting |
Horizontal |
| Product colour |
Black |
| Certification |
UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico) |
| Rack capacity |
2U |
| Housing material |
Metal |
| Ports & interfaces |
|---|
| Power plug |
NEMA L6-30P |
| AC outlets quantity |
18 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Features |
|---|
| LED indicators |
Yes |
| Cable length |
143.7" (3.65 m) |
| Certification |
UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico) |
| Ergonomics |
|---|
| LED indicators |
Yes |
| Cable length |
143.7" (3.65 m) |
| Power |
|---|
| Nominal input voltage |
208-240 V |
| Maximum current |
30 A |
| Nominal output voltage |
208-240 V |
| AC input frequency |
50 - 60 Hz |
| Certificates |
|---|
| Certification |
UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico) |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-15 - 50 °C |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions |
|---|
| Weight |
13.7 lbs (6.21 kg) |
| Width |
17.5" (444 mm) |
| Depth |
12.5" (318 mm) |
| Height |
3.46" (88 mm) |
| Package width |
16.7" (424.2 mm) |
| Package depth |
19.8" (502.9 mm) |
| Package height |
7.8" (198.1 mm) |
| Package weight |
15.8 lbs (7.17 kg) |
| Packaging data |
|---|
| Package width |
16.7" (424.2 mm) |
| Package depth |
19.8" (502.9 mm) |
| Package height |
7.8" (198.1 mm) |
| Package weight |
15.8 lbs (7.17 kg) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
16.7" (424.2 mm) |
| Master (outer) case length |
19.8" (502.9 mm) |
| Master (outer) case height |
7.8" (198.1 mm) |
| Master (outer) case gross weight |
15.8 lbs (7.17 kg) |
| Products per master (outer) case |
1 pc(s) |
| Country of origin |
Taiwan |
