Gigabit Multimode Fiber to Ethernet Media Converter, PoE+ - International Power Cables, 10/100/1000 LC, 850 nm, 550 m (1,804 ft.)

Key Features

• Extends power (48 VDC) + data (1000 Mbps) to any edge PoE+ device
• Supports multimode fiber optic cable with LC connectors up to 550 m
• RJ45 jack supports auto-MDI/MDIX to bridge various network devices
• LEDs indicate Ethernet and fiber link status at a quick glance
• Link fault pass through lets you quickly identify any faults in the connection

Description

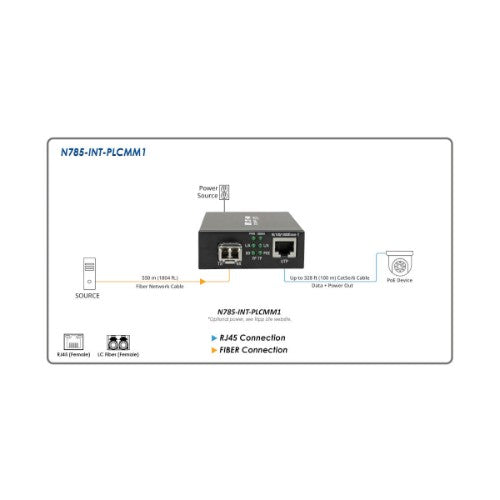

Extends Power and Data to a PoE+ Device up to 550 m via LC Multimode Fiber Cable
This economical unit converts a multimode fiber optic signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet up to 550 meters (1,804 feet) using Cat5e/6 cabling. The N785-INT-PLCMM1 is ideal for providing power and data to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices.

Supports Power over Ethernet to Save You Money and Give You More Installation Choices
PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.

Supports Auto-Sensing of Network Speed and Other Advanced Functions

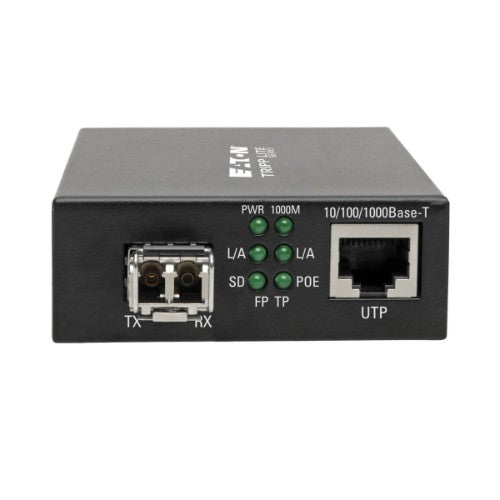

Monitoring and controlling your network nodes is easy with the N785-INT-PLCMM1’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIX configuration. Six LEDs indicate the converter’s power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the LC and RJ45 ports to ensure link status remains active.

Completely Plug-and-Play with No Additional Software Required for Connection

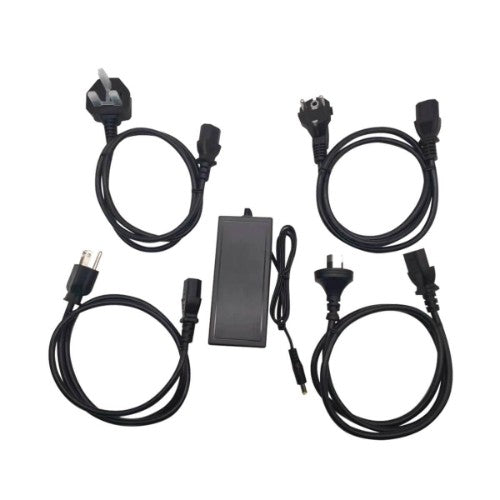

The compact metal converter is easy to install and set up with no software or drivers required. The included power supply comes with four international power cables (North America, Europe, United Kingdom, Australia) for connecting to an AC outlet with no computer or other signal source needed.

Specifications

Network
Fiber optic connector	LC
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	LC
Power over Ethernet (PoE) ports quantity	1
DC-in jack	Yes
Performance
Wavelength	850 nm
Maximum transfer distance	21653.5" (550 m)
Design
Internal	No
Country of origin	China
LED indicators	Yes
Product colour	Black
Power
Input voltage	100 - 240 V
Input current	1.5 A
Output voltage	48 V
Output current	1.25 A
External power adapter	Yes
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	30 W
AC input frequency	50 - 60 Hz
Packaging content
Package type	Box
AC adapter included	Yes
Manual	Yes
Weight & dimensions
Width	2.76" (70 mm)
Depth	3.74" (95 mm)
Height	0.984" (25 mm)
Package width	8.3" (210.8 mm)
Package depth	9.8" (248.9 mm)
Package height	4.2" (106.7 mm)
Package weight	2.8 lbs (1.27 kg)
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging data
Package type	Box
Package width	8.3" (210.8 mm)
Package depth	9.8" (248.9 mm)
Package height	4.2" (106.7 mm)
Package weight	2.8 lbs (1.27 kg)
Technical details
Sustainability compliance	Yes
Master (outer) case GTIN (EAN/UPC)	10037332273052
Harmonized System (HS) code	8517.62.0090
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA, WEEE
Logistics data
Master (outer) case width	10.6" (269.2 mm)
Master (outer) case length	17.8" (452.1 mm)
Master (outer) case height	22.8" (579.1 mm)
Master (outer) case gross weight	29.8 lbs (13.5 kg)
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	8517.62.0090
