Internet Office UPS System - 550VA ultra-compact UPS, Maintains 120V nominal output during blackouts, Space saving right-angle input plug
Description

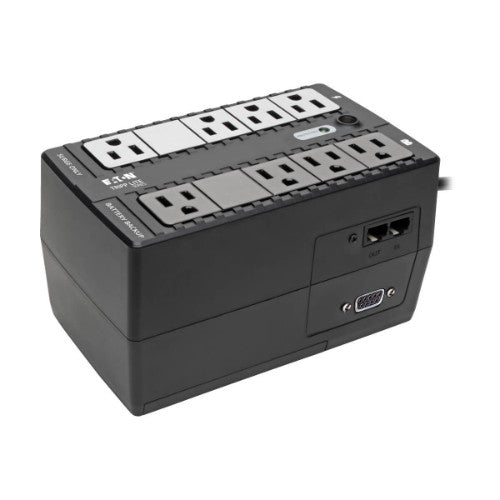

Ultra-compact standby UPS with built-in DB9 serial monitoring port protects PCs, network workstations and other systems reliant upon a simple serial communications interface for UPS monitoring and unattended system shutdown. Maintains AC output during blackouts and brownouts starting at 99V. Includes DB9 monitoring port with cabling, TEL/DSL line surge suppression, surge-only outlets and LED indicators. PowerAlert software available free via download.
Features• INTERNET550SER standby UPS offers protection from blackouts, brownouts and surges on both AC and dialup modem lines
• Provides seamless battery derived AC output during blackouts and severe brownouts so that connected equipment can be shut down without data loss
• Built-in serial port interface provides simple communications for automatic system shutdown if power fails while the system runs nattended
• Supports Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment; ideal for unattended kiosk applications

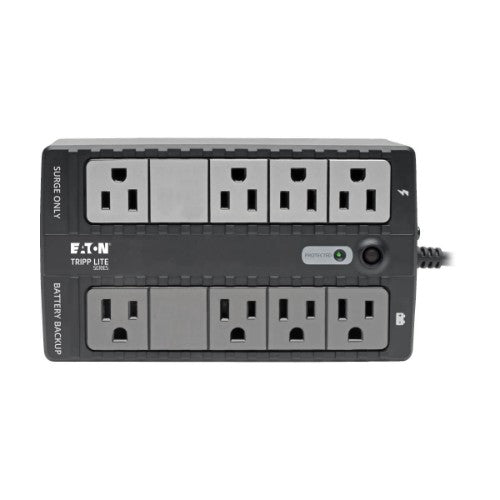

• 4 battery supported outlets protect computer, monitor and one vital system peripheral, plus 4 additional surge suppression-only outlets for printers and other system accessories not requiring battery support
• Attractive stealth black UPS color scheme
• Built-in single line phone jacks protects peripherals with a standard dialup phone line connection, phone cable included
• Built-in audible alarm and front panel LEDs offer continuous status information regarding line and battery power operation
• 550VA /300 watt power handling ability supports entry-level PC systems for several minutes during power fail conditions
• Ultra-compact housing fits anywhere, wall mountable
Specifications
| Power |
|---|
| Output power capacity |
0.55 kVA |
| Output power |
300 W |
| Surge energy rating |
252 J |
| Emergency Power Off (EPO) |
Yes |
| Input frequency |
60 Hz |
| Ports & interfaces |
|---|
| Cable length |
72" (1.83 m) |
| Performance |
|---|
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output power capacity |
0.55 kVA |
| Country of origin |
China |
| Output power |
300 W |
| Surge energy rating |
252 J |
| Emergency Power Off (EPO) |
Yes |
| Audible alarm(s) |
Yes |
| Input frequency |
60 Hz |
| Battery |
|---|
| Battery recharge time |
4 h |
| Typical backup time at half load |
10 min |
| Typical backup time at full load |
3.5 min |
| Replacement battery cartridge |
RBC69 |
| Design |
|---|
| Country of origin |
China |
| Product colour |
Black |
| Cable length |
72" (1.83 m) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 50 °C |
| Weight & dimensions |
|---|
| Width |
4.33" (110 mm) |
| Depth |
7.28" (184.9 mm) |
| Height |
4.13" (104.9 mm) |
| Weight |
3.97 lbs (1.8 kg) |
| Package width |
5.67" (144 mm) |
| Package depth |
10.9" (275.8 mm) |
| Package height |
7.36" (186.9 mm) |
| Package weight |
5 lbs (2.27 kg) |
| Packaging data |
|---|
| Package width |
5.67" (144 mm) |
| Package depth |
10.9" (275.8 mm) |
| Package height |
7.36" (186.9 mm) |
| Package weight |
5 lbs (2.27 kg) |
| Logistics data |
|---|
| Country of origin |
China |
| Products per master (outer) case |
8 pc(s) |
| Master (outer) case width |
11.3" (286 mm) |
| Master (outer) case length |
23.3" (591.8 mm) |
| Master (outer) case height |
15.5" (394 mm) |
| Master (outer) case gross weight |
36.8 lbs (16.7 kg) |
| Master (outer) case GTIN (EAN/UPC) |
10037332211016 |
| Other features |
|---|
| Interface |
RS-232 |
| Input connection type |
NEMA 5-15R |
| Dimensions (WxDxH) |
4.09 x 7.99 x 1.3" (104 x 203 x 33 mm) |
| Nominal input voltage |
120 V |
| Mac compatibility |
No |
| Non-operating relative humidity (non-condensing) |
0 - 95% |
