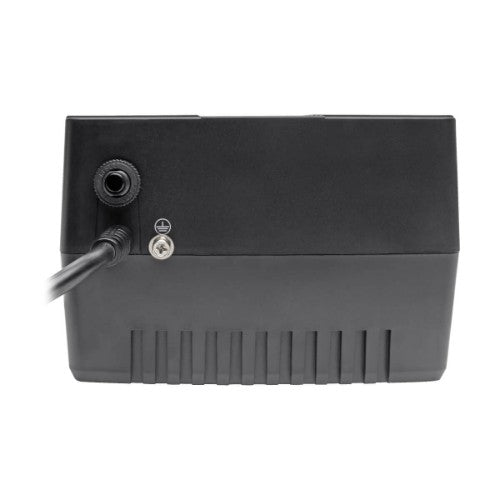

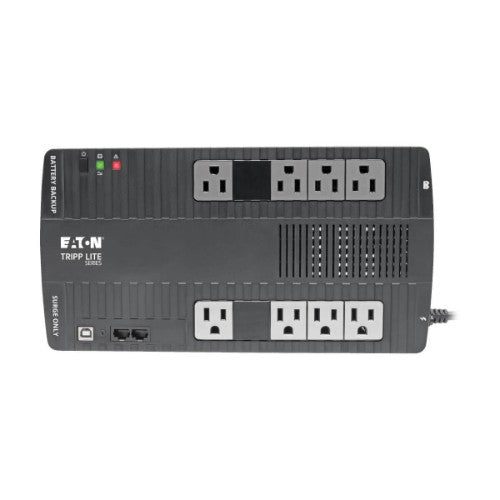

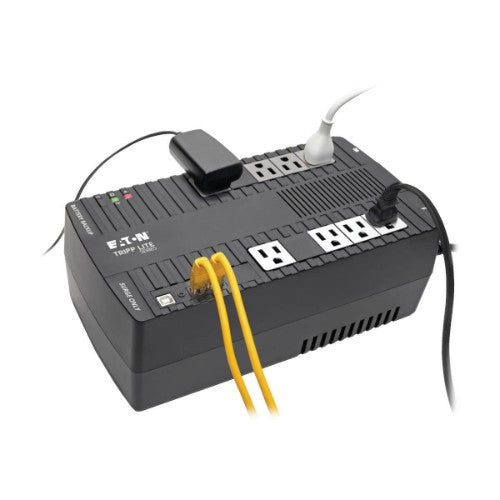

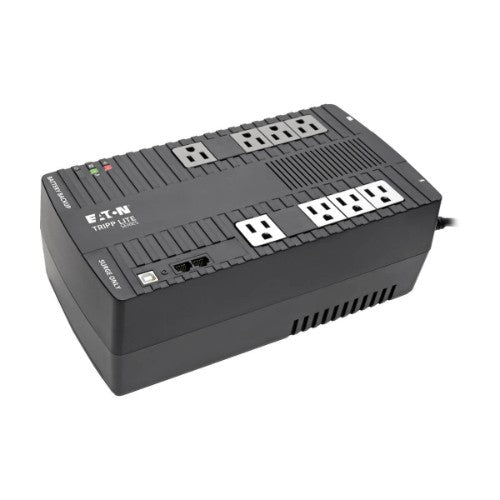

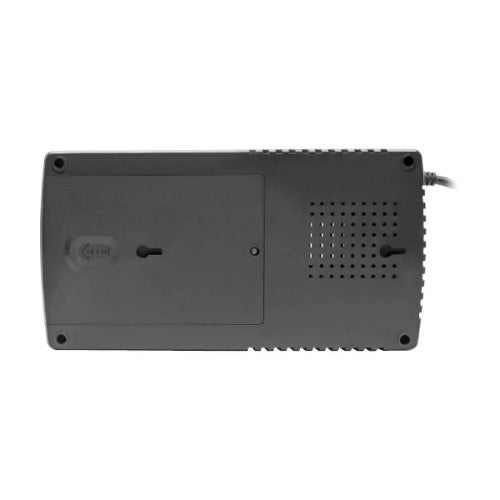

Tripp Lite AVR550U, Line-Interactive, 0.55 kVA, 300 W, Pure sine, 110 V, 120 V
Description
Tripp Lite AVR550U. UPS topology: Line-Interactive, Output power capacity: 0.55 kVA, Output power: 300 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 8 AC outlet(s). Battery voltage: 12 V, Typical backup time at half load: 9 min, Battery recharge time: 9 h. Form factor: Tower, Product color: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Compliance certificates: RoHS, Certification: UL1778, CSA, NOM, FCC
Specifications
| Power |
|---|
| Output power capacity |
0.55 kVA |
| Output power |
300 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
120 V |
| Output operation voltage (min) |
110 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
316 J |
| Maximum current |
15 A |
| Output frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
59.1" (1.5 m) |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
NEMA 5–15R |
| Power plug |
NEMA 5-15P |
| USB port |
Yes |
| USB 2.0 ports quantity |
1 |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Waveform |
Pure sine |
| LED indicators |
Yes |
| Audible alarm(s) |
Yes |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Output power capacity |
0.55 kVA |
| Country of origin |
China |
| Output power |
300 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
120 V |
| Output operation voltage (min) |
110 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
316 J |
| Maximum current |
15 A |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Waveform |
Pure sine |
| Output frequency |
50/60 Hz |
| Audible alarm(s) |
Yes |
| Battery |
|---|
| Battery recharge time |
9 h |
| Typical backup time at half load |
9 min |
| Cold start |
Yes |
| Battery voltage |
12 V |
| Design |
|---|
| Form factor |
Tower |
| Country of origin |
China |
| Product colour |
Black |
| Certification |
UL1778, CSA, NOM, FCC |
| Cable length |
59.1" (1.5 m) |
| LED indicators |
Yes |
| Housing material |
Acrylonitrile butadiene styrene (ABS) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating altitude |
0 - 120000" (0 - 3048 m) |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
UL1778, CSA, NOM, FCC |
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Cables included |
USB cable |
| Manual |
Yes |
| Weight & dimensions |
|---|
| Width |
6.4" (162.6 mm) |
| Depth |
12" (304.8 mm) |
| Height |
4.33" (110 mm) |
| Weight |
13.7 lbs (6.21 kg) |
| Package width |
9.3" (236.2 mm) |
| Package depth |
14.7" (373.4 mm) |
| Package height |
6" (152.4 mm) |
| Package weight |
14 lbs (6.35 kg) |
| Packaging data |
|---|
| Cables included |
USB cable |
| Manual |
Yes |
| Package width |
9.3" (236.2 mm) |
| Package depth |
14.7" (373.4 mm) |
| Package height |
6" (152.4 mm) |
| Package weight |
14 lbs (6.35 kg) |
| Logistics data |
|---|
| Country of origin |
China |
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case width |
15.3" (388.6 mm) |
| Master (outer) case length |
19.1" (485.1 mm) |
| Master (outer) case height |
10.2" (259.1 mm) |
| Master (outer) case gross weight |
39 lbs (17.7 kg) |
| Master (outer) case GTIN (EAN/UPC) |
10037332211450 |
