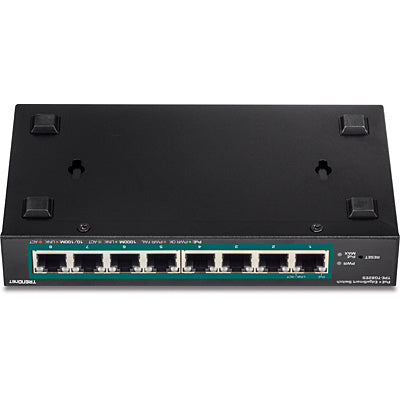

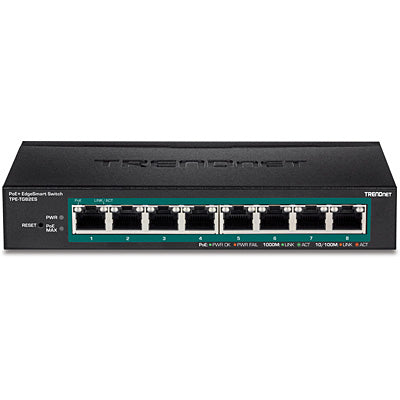

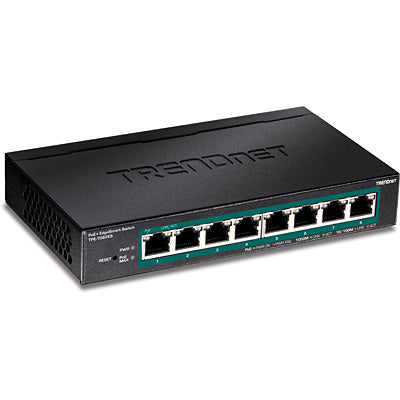

8-Port Gigabit EdgeSmart PoE+ Switch
Key Features
- 8 x Gigabit PoE+ ports
- 64W PoE power budget
- Easy-to-use web-based management interface
- Supports LACP, RSTP, VLAN, QoS, and IGMP Snooping
- Voice VLAN for VoIP applications
- Bandwidth control per port
- 16Gbps switching capacity
- IEEE 802.1p CoS with queue scheduling support
- Compact fanless design
- Wall mountable metal housing
Description
TRENDnet’s 8-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG82ES, is a cost-effective desktop PoE managed switch solution for high-speed gigabit PoE+ applications. This EdgeSmart switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, LACP, RSTP, VLAN, QoS, and monitoring. TRENDnet’s TPE-TG82ES desktop PoE managed switch provides eight gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and VoIP handsets.
EdgeSmart ManagementProvides an easy-to-use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.
Integration FlexibilityManaged features include loopback detection, RSTP, LACP, VLAN, IGMP Snooping, and QoS for flexible network integration.
PoE+ PowerA 64W PoE power budget supplies up to eight Power over Ethernet devices.
Specifications
| Management features |
| Switch type |
Managed |
| Reset button |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Network |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Full duplex |
Yes |
| Number of VLANs |
32 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| 10G support |
No |
| Virtual LAN features |
Private VLAN, Voice VLAN, Tagged VLAN, Port-based VLAN |
| IGMP snooping |
Yes |
| Data transmission |
| MAC address table |
4096 entries |
| Switching capacity |
16 Gbit/s |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Forwarding rate |
11.9 Mpps |
| Number of VLANs |
32 |
| Security |
| IGMP snooping |
Yes |
| Multicast features |
| Multicast support |
Yes |
| Protocols |
| Management protocols |
SNMP v1, v2c |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| Reset button |
Yes |
| Wall mountable |
Yes |
| LED indicators |
Yes |
| Housing material |
Metal |
| Certification |
FCC
CE
RoHS |
| Performance |
| Firmware upgradeable |
Yes |
| Buffer size |
192 KB |
| Mean time between failures (MTBF) |
730455 h |
| Power |
| Output current |
1.67 A |
| Power protection features |
Over current, Short circuit |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (max) |
68.6 W |
| Input current |
1.2 A |
| DC input voltage |
54 V |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Total Power over Ethernet (PoE) budget |
64 W |
| Power protection features |
Over current, Short circuit |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Virtual LAN features |
| Number of VLANs |
32 |
| VLAN support |
Yes |
| Virtual LAN features |
Private VLAN, Voice VLAN, Tagged VLAN, Port-based VLAN |
| Weight & dimensions |
| Width |
6.73" (171 mm) |
| Depth |
3.85" (97.8 mm) |
| Height |
1.13" (28.6 mm) |
| Weight |
14.9 oz (423 g) |
| Packaging content |
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| Packaging data |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Certificates |
| Certification |
FCC
CE
RoHS |
