TI-PG102I, 20 Gbit/s, 8x RJ-45, PoE, 2x SFP, VLAN, QoS, ACL, 160x120x50 mm
Key Features
- 8 x Gigabit PoE+ ports
- 2 x SFP slots
- Supports 100/1000Base-FX fiber SFP modules
- PoE power budget: 240W@48VDC or 124W@24VDC
- PoE alive check restarts unresponsive PoE powered devices
- 20Gbps switching capacity
- Hardened IP30 rated metal housing
- Includes DIN-rail mounting bracket
- Operating temperature range of -40° – 75° C (-40° – 167° F)
- Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
- IEEE 802.1p QoS with queue scheduling support
- Bandwidth control per port
- Dual redundant power inputs with overload current protection
- Alarm output triggered by power failure
Description

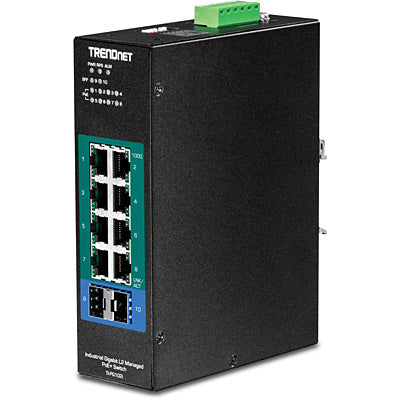

TRENDnet’s 10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch, model TI-PG102i, features eight Gigabit PoE+ ports with a 240W PoE budget, and includes two SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber applications. The hardened switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.
PoE PowerA 240W PoE power budget supplies up to eight Power over Ethernet devices, and includes advanced PoE port controls such as enabling / disabling PoE, power priority, PD alive check, and power scheduling.
Integration FlexibilityManaged features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
Industrial DesignEquipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
Network Ports

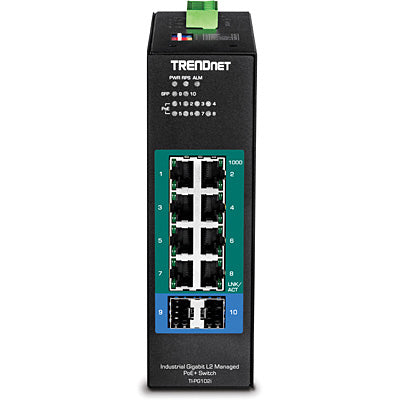

8 x Gigabit PoE+ ports, 2 x Gigabit SFP Slots
PoE Power
Supplies up to 30W of PoE+ power per port with a 240W power budget
Full PoE Control Per Port
Available PoE port controls include enabling / disabling PoE, power priority, PD alive check, and power scheduling
Traffic Management
Managed features include 802.1Q, MAC & Port Isolation VLAN, IGMP Snooping, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP spanning tree, and link aggregation for flexible network integration
Access Control
Managed access control features include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping and IP Source Guard provides layered network access controls
System Monitoring
Monitoring features include SNMP v1 / v2c / v3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, and SFP DDMI

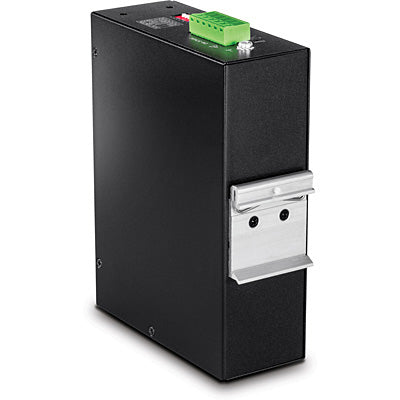

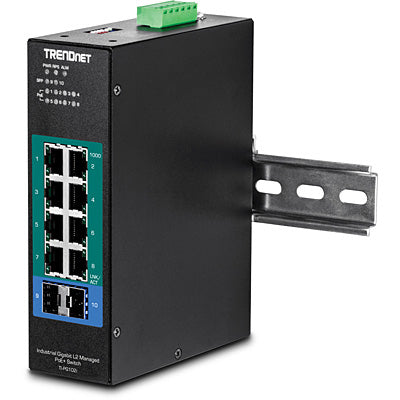

DIN-Rail Mount
IP30 rated metal enclosure includes DIN-rail mounting bracket
Switching Capacity
20Gbps switching capacity
Redundant Power

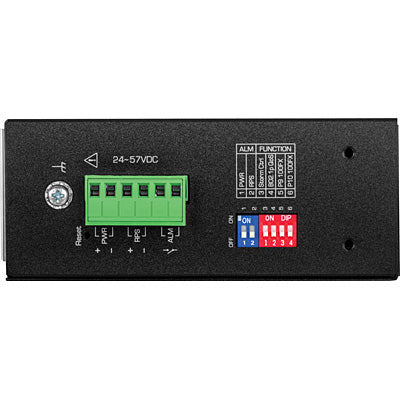

Dual redundant power inputs with overload current protection (power supply sold separately: TI-S24048, TI-S48048, TI-S12024)
Alarm Relay
Alarm relay output triggered by power failure of primary and / or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance
Wide Temperature Range
A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in extreme hot or cold environments
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges
Specifications
| Management features |
|---|
| Switch layer |
L2 |
| Switch type |
Managed |
| Reset button |
Yes |
| ARP inspection |
Yes |
| Web-based management |
Yes |
| System event log |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| MIB support |
MIB II RFC 1213, MIB RFC 1493, RMON (1,2,3,9) RFC 2819 RFC 1757 |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| SFP module slots quantity |
2 |
| Network |
|---|
| Networking standards |
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex |
Yes |
| MAC address auto-learning supported |
Yes |
| Number of VLANs |
256 |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| 10G support |
No |
| Virtual LAN features |
Tagged VLAN, MAC address-based VLAN |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| MAC address table |
8000 entries |
| Switching capacity |
20 Gbit/s |
| Jumbo frames |
10000 |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Packet buffer memory |
128 MB |
| Forwarding rate |
14.88 Mpps |
| Number of VLANs |
256 |
| Number of multicast groups filtered |
256 |
| Security |
|---|
| Loop protection |
Yes |
| BPDU filtering/protection |
Yes |
| Security algorithms |
SNMP, SNMPv3, SSH |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP server, DHCP relay |
| Multicast features |
|---|
| Number of multicast groups filtered |
256 |
| Multicast support |
Yes |
| Design |
|---|
| Product colour |
Black |
| Reset button |
Yes |
| DIN rail mounting |
Yes |
| LED indicators |
Yes |
| International Protection (IP) code |
IP30 |
| Housing material |
Metal |
| Certification |
CE, FCC, (IEC 60068-2-27), (IEC 60068-2-32), (IEC 60068-2-6) |
| Performance |
|---|
| Firmware upgradeable |
Yes |
| Mean time between failures (MTBF) |
562234 h |
| Packet buffer memory |
128 MB |
| Harmonized System (HS) code |
85176990 |
| Power |
|---|
| Power consumption (max) |
253 W |
| DC input voltage |
24 - 57 V |
| Surge protection |
Yes |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 75 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Virtual LAN features |
|---|
| Number of VLANs |
256 |
| VLAN support |
Yes |
| Virtual LAN features |
Tagged VLAN, MAC address-based VLAN |
| Weight & dimensions |
|---|
| Width |
6.3" (160 mm) |
| Depth |
4.72" (120 mm) |
| Height |
1.97" (50 mm) |
| Weight |
32.8 oz (930 g) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| DIN rail included |
Yes |
| Terminal block included |
Yes |
| Packaging data |
|---|
| DIN rail included |
Yes |
| Terminal block included |
Yes |
| Quick start guide |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, (IEC 60068-2-27), (IEC 60068-2-32), (IEC 60068-2-6) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
