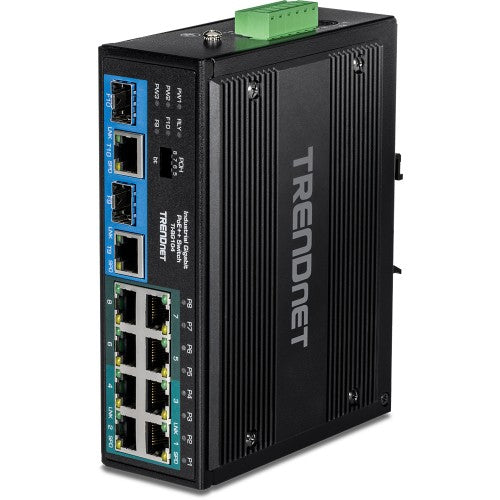

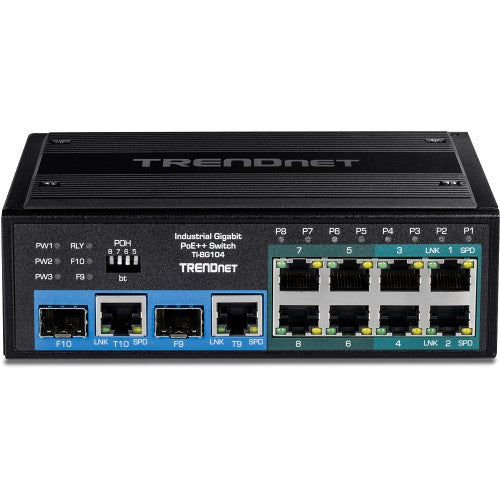

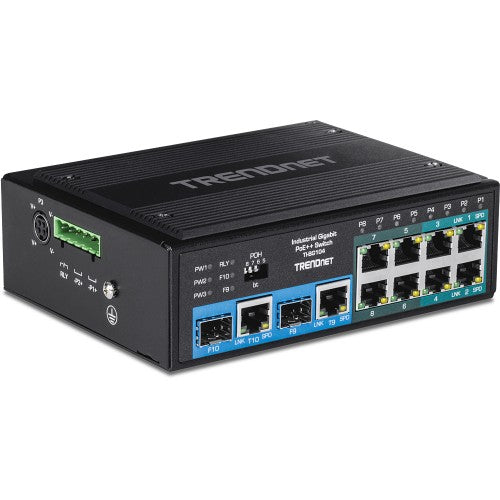

10-Port Industrial Gigabit PoE++ DIN-Rail Switch

Key Features

• 4 x Gigabit PoE++ ports
• 4 x Gigabit PoE+ ports
• 2 x Gigabit Share ports (SFP or RJ-45)
• 360W power budget
• 20Gbps switching capacity
• Hardened IP30 rated metal switch

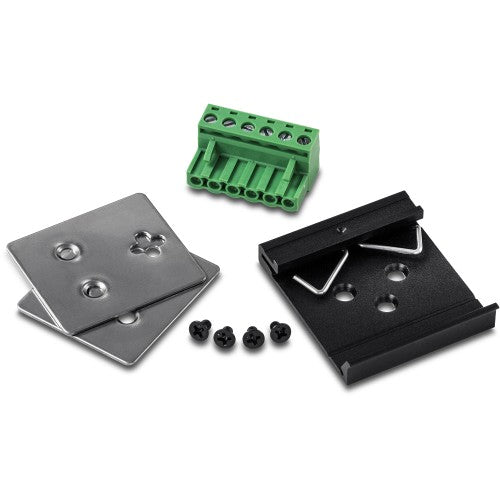

• Includes DIN-Rail and wall mounts
• Extreme operating temperature range of -40° – 75° C (-40° – 167° F)

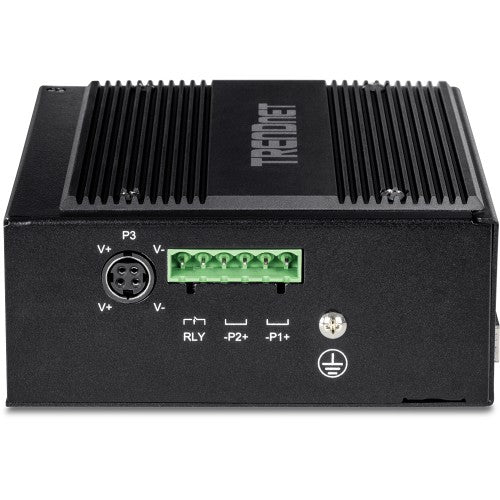

• Dual power inputs for redundancy
• Alarm output triggered by power failure
• Power supply sold separately (TI-S48048)
• NDAA / TAA compliant (U.S. and Canada only)

Description

TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switches delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial PoE++ switches each feature a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). These hardened industrial PoE++ switch models feature copper Gigabit PoE+ ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switches by delivering up to 90W per port of PoE power and data over existing Ethernet cables. With PoE technology inside these industrial PoE++ switches, users only need one set of cables to deliver both data and power. Easily network PoE devices to this hardened industrial PoE+ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2
Gigabit Ethernet (copper) ports quantity	10
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
10G support	No
Auto-negotiation	Yes
Data transmission
MAC address table	11000 entries
Switching capacity	20 Gbit/s
Jumbo frames	10000
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	2 MB
Forwarding rate	8.9 Mpps
Design
Rack mounting	No
Product colour	Black

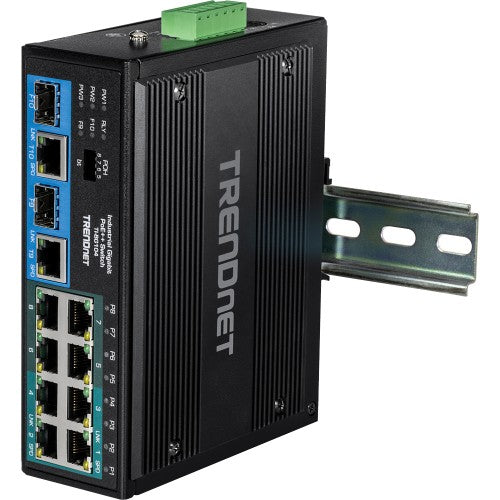

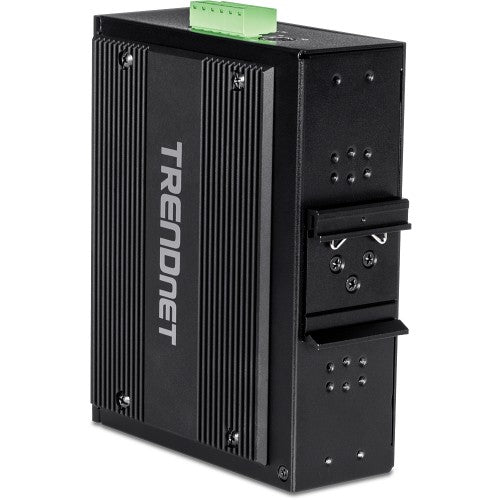

DIN rail mounting	Yes
LED indicators	Yes
International Protection (IP) code	IP30
Housing material	Metal
Certification	FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Performance
Mean time between failures (MTBF)	510304 h
Packet buffer memory	2 MB
Auto-negotiation	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	6.2 W
Input voltage	48 - 56 V
Input current	2 A
Power source	DC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	360 W
Power over Ethernet 4PPoE (PoE++) ports quantity	4
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Weight & dimensions
Width	4.8" (122 mm)
Depth	1.89" (48 mm)
Height	6.22" (158 mm)
Weight	22.2 oz (630 g)
Packaging content
Quick start guide	Yes
Sustainability
Sustainability compliance	Yes
Technical details
Sustainability compliance	Yes
Compliance certificates	CE
Certificates
Certification	FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Compliance certificates	CE
Packaging data
Quick start guide	Yes
Other features
Input voltage	48 - 56 V
Ethernet LAN data rates	10,100,1000 Mbit/s
