2.5 Gbit/s, RJ-45, 1.8W, 84x64x18mm, 42g
Key Features
- Converts a PCIe slot into a 2.5G Ethernet Port
- Supports 802.1Q VLAN Tagging
- Includes standard and low-profile brackets
- Windows and Linux support
- IEEE 802.3ab and 802.3bz compliant
- Supports up to 9KB jumbo frames
Description
2.5GBASE-T PCIe Network AdapterTRENDnet’s 2.5GBASE-T PCIe Network Adapter, model TEG-25GECTX, converts a free PCI Express slot into a 2.5GBASE-T Ethernet port. The 2.5G network adapter includes advanced features such as jumbo frame and VLAN tagging support. Compatible with Windows and Linux desktop computer designs, the 2.5G network adapter includes both standard and low-profile brackets.
2.5G Port2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.
Jumbo FrameSends larger packets, or jumbo frames (up to 9KB), for increased performance.
Operating SystemsCompatible with Windows, Windows Server, and Linux operating systems.
2.5G Port2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.
PCI ExpressConverts a PCIe 2.0 x1 slot into a 2.5G Ethernet Port
2.5GBASE-T Support2.5GBASE-T specification (802.3bz) supports 2.5G speeds over standard Cat5e cables at distances up to 100m (328 ft.)
Jumbo FrameSends larger packets, or jumbo frames (up to 9KB), for increased performance
VLAN Support2.5G network adapter with IEEE 802.1Q tagged-based VLAN support

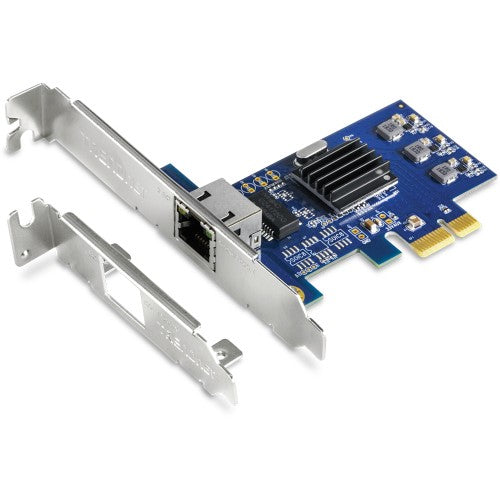

BracketsSupports most installations with included standard and low-profile brackets
Operating SystemsCompatible with Windows, Windows Server, and Linux operating systems
LED IndicatorsLED indicators convey port status, link speed and activity
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
1 |
| Bandwidth |
|---|
| Maximum data transfer rate |
2500 Mbit/s |
| Network |
|---|
| Maximum data transfer rate |
2500 Mbit/s |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| Design |
|---|
| Internal |
Yes |
| Product colour |
Blue, Silver |
| Certification |
CE, FCC |
| LED indicators |
Yes |
| Power |
|---|
| Power consumption (typical) |
1.8 W |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8.1 |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2012, Windows Server 2016 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
40 °C |
| Weight & dimensions |
|---|
| Width |
3.31" (84 mm) |
| Depth |
2.52" (64 mm) |
| Height |
0.709" (18 mm) |
| Weight |
1.48 oz (42 g) |
| Performance |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8.1 |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2012, Windows Server 2016 |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Quick start guide |
Yes |
| Harmonized System (HS) code |
85176990 |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
40 °C |
