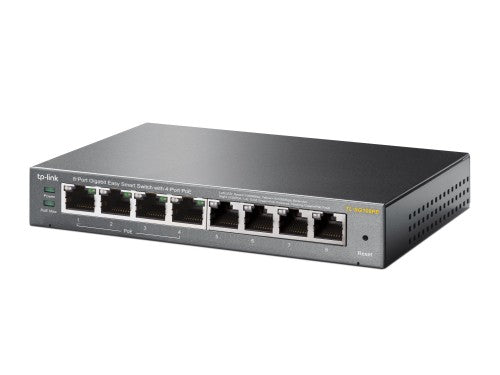

TP-Link TL-SG108PE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

8 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX, IEEE 802.3i/u/ab/af/x, IEEE 802.1q/p, 158 x 101 x 25 mm

Key Features

• 8 10/100/1000Mbps RJ45 ports
• Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable
• Supports PoE power up to 55W for all PoE ports
• Provides network monitoring, traffic prioritization and VLAN features
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration

Description

PoE Switches for Your Ultra Convenience
8-Port Gigabit Easy Smart Switch with 4-Port PoE

Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Specifications

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	8
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Number of VLANs	32
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Virtual LAN features	Port-based VLAN
IGMP snooping	Yes
Data transmission
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Packet forwarding rate (1 Gbps)	11900000 pps
Jumbo frames	15000
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	1.5 MB
Forwarding rate	11.9 Mpps
Number of VLANs	32
Security
Loop protection	Yes
IGMP snooping	Yes
Design
Product colour	Black
LED indicators	Activity, Link, PoE, Power, Speed, Status
Certification	FCC, CE, RoHS
Power
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
Power consumption (max)	65.2 W
Input voltage	48 V
Input current	1.25 A
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	15.4 W
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	64 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	256.19 BTU/h
Virtual LAN features
Number of VLANs	32
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Weight & dimensions
Width	6.22" (158 mm)
Depth	3.98" (101 mm)
Height	0.984" (25 mm)
Packaging content
User guide	Yes
Cables included	AC
Packaging data
Package type	Box
Package width	5.16" (131 mm)
Package depth	7.72" (196 mm)
Package height	4.76" (121 mm)
Package weight	30.3 oz (860 g)
User guide	Yes
Cables included	AC
Performance
Packet buffer memory	1.5 MB
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Certificates
Certification	FCC, CE, RoHS
Other features
Input voltage	48 V
Logistics data
Harmonized System (HS) code	85176990
