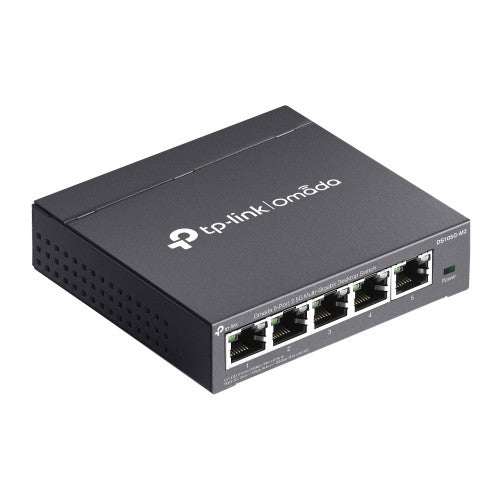

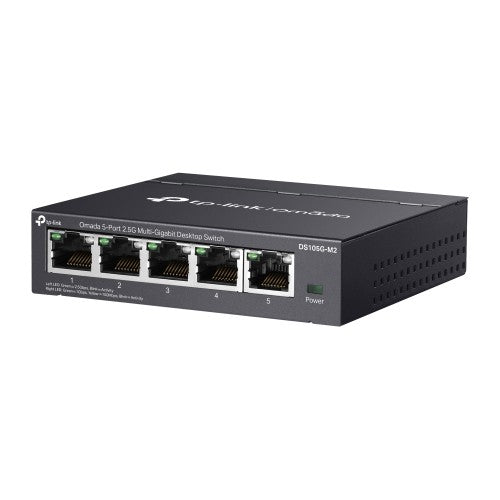

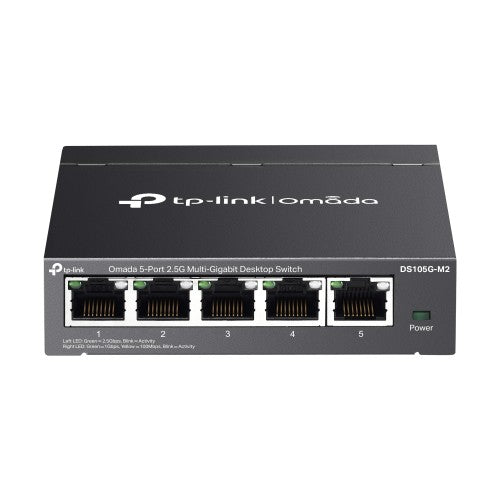

Omada 5-Port 2.5G Multi-Gigabit Unmanaged Desktop Switch, Fanless, 5.81 W (220 V/ 50 Hz), 19.754 BTU/h
Key Features
- Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of switching capacity
- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more
- Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations
- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.*
- Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business
- Plug and Play. No configuration or central management required

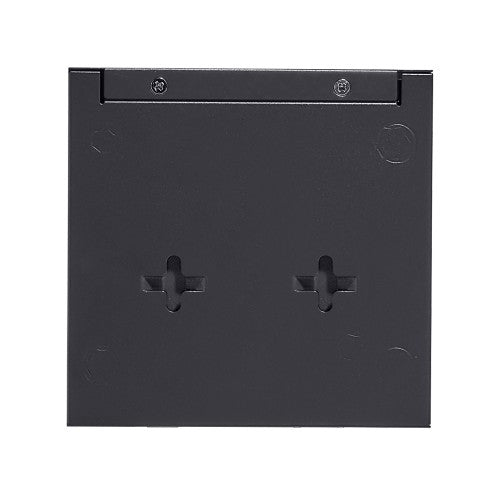

- Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments
Description
Omada 5Port 2.5G MultiGigabit Desktop SwitchPORT: 5 2.5G RJ45 PortsSPEC: Desktop Steel CaseFEATURE: Plug and Play
Specifications
| Management features |
|---|
| Switch type |
Unmanaged |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |

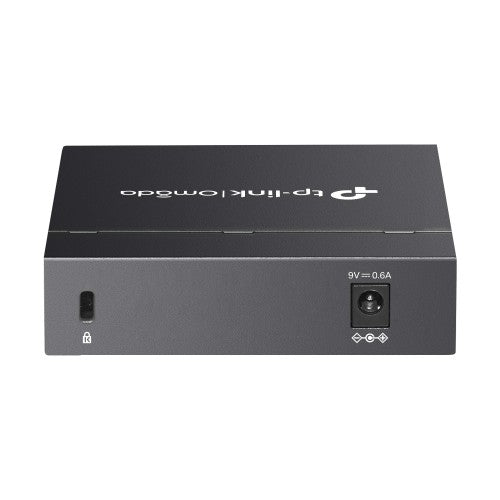

| Power connector |
DC-in jack |
| Copper ethernet cabling technology |
2.5GBASE-T, 100BASE-TX, 1000BASE-T |
| Network |
|---|
| Networking standards |
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology |
2.5GBASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| MAC address table |
4000 entries |
| Switching capacity |
25 Gbit/s |
| Jumbo frames |
12 |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Packet buffer memory |
8 MB |
| Forwarding rate |
18.6 Mpps |
| Security |
|---|
| IGMP snooping |
Yes |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
Black |
| Reset button |
Yes |
| LED indicators |
Activity, Link, Power |
| Housing material |
Metal |
| Performance |
|---|
| Fanless |
Yes |
| Packet buffer memory |
8 MB |
| Auto-negotiation |
Yes |
| Power |
|---|
| Power supply included |
Yes |
| Power consumption (max) |
5.81 W |
| Input current |
0.6 A |
| DC input voltage |
9 V |
| Power source |
DC |
| Power connector |
DC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
19.759 BTU/h |
| Weight & dimensions |
|---|
| Width |
3.93" (99.8 mm) |
| Depth |
3.86" (98 mm) |
| Height |
0.984" (25 mm) |
| Packaging content |
|---|
| User guide |
Yes |
| Cables included |
Power |
| Rubber feet |
Yes |
| Packaging data |
|---|
| Rubber feet |
Yes |
| User guide |
Yes |
| Cables included |
Power |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Other features |
|---|
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
