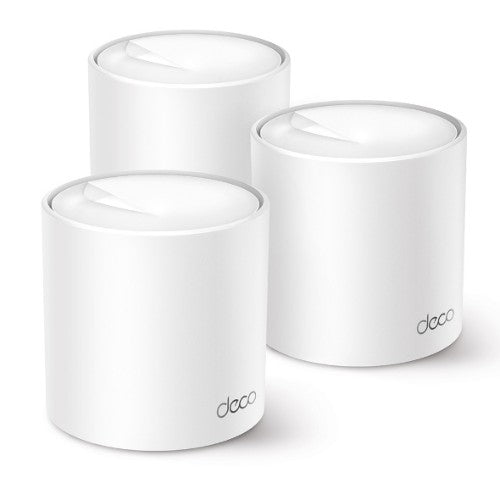

Wi-Fi 6, AX3000, 2.4/5 GHz, 2×2 MU-MIMO, 3x 1G RJ-45, 12V, 110x110x114 mm, 3-pack
Key Features
- AX3000 Dual Band WiFi - Super-fast WiFi 6 with speeds up to 3.0 Gbps
- 4 Streams, Less Lag - 2×2/HE160 2402 Mbps + 2×2 574 Mbps
- Gigabit Wired Speed - 3× Gigabit ports provide sufficient connectivity

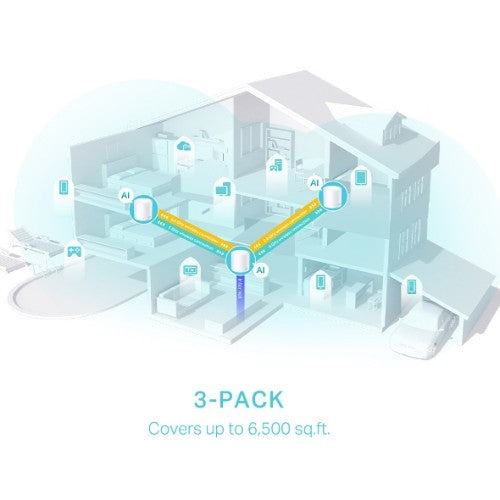

- Boosted Seamless Coverage - Seamless mesh WiFi coverage up to 6,500 ft2 (3-pack)
- TP-Link HomeShield - Provides comprehensive network protection, robust parental controls, and real-time IoT protection
Description
Superior Mesh WiFi, Everywhere.AX3000 Whole Home Mesh WiFi 6 System
- Superb Wired and Wireless Connectivity
Enjoy smooth 4K streaming, online gaming, and video calls throughout your home. Get super-fast WiFi 6 with speeds of up to 3.0 Gbps and 3 x Gigabit Ethernet ports providing wired warp speeds.
- Superior WiFi Performance
Deco X50 features higher WiFi speeds, larger device capacity, and nearly no lag with broader HE160 channel bandwidth.
Specifications
| Design |
|---|
| Product colour |
White |
| Antenna type |
Internal |
| Antennas quantity |
2 |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Reset button |
Yes |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Transmit power |
CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Security algorithms |
WPA-PSK, WPA2-PSK, WPA3-PSK |
| Number of guest networks (5 GHz) |
1 |
| Number of guest networks (2.4 GHz) |
1 |
| WLAN data transfer rate (first band) |
574 Mbit/s |
| WLAN data transfer rate (second band) |
2402 Mbit/s |
| Networking standards |
IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g |
| Dynamic DNS (DDNS) |
Yes |
| Tagged VLAN |
Yes |
| IGMP snooping |
Yes |
| IGMP proxy |
Yes |
| Features |
|---|
| DHCP client |
Yes |
| Processor cores |
2 |
| Quality of Service (QoS) support |
Yes |
| Port forwarding |
Yes |
| Firewall security |
SPI |
| BeamForming |
Yes |
| Number of guest networks (5 GHz) |
1 |
| Number of guest networks (2.4 GHz) |
1 |
| Parental control |
Yes |
| Firmware upgradeable via |
Network |
| Universal Plug and Play (UPnP) |
Yes |
| Built-in processor |
Yes |
| Processor frequency |
1 GHz |
| Parental control features |
Custom profiles, Time controls, Weekly/monthly reports |
| MU-MIMO technology |
Yes |
| Protocols |
|---|
| DHCP client |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
3 |
| DC-in jack |
Yes |
| Power |
|---|
| AC adapter output voltage |
12 V |
| AC adapter output current |
1.5 A |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
4.33" (110 mm) |
| Depth |
4.33" (110 mm) |
| Height |
4.49" (114 mm) |
| Package width |
14.5" (369 mm) |
| Package depth |
10.9" (276.5 mm) |
| Package height |
4.92" (125 mm) |
| Package weight |
4.81 lbs (2.18 kg) |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Ethernet cable |
Yes |
| Number of products included |
3 pc(s) |
| Number of units included |
3 pc(s) |
| Packaging data |
|---|
| Package width |
14.5" (369 mm) |
| Package depth |
10.9" (276.5 mm) |
| Package height |
4.92" (125 mm) |
| Package weight |
4.81 lbs (2.18 kg) |
| Technical details |
|---|
| Harmonized System (HS) code |
85171800 |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85171800 |
