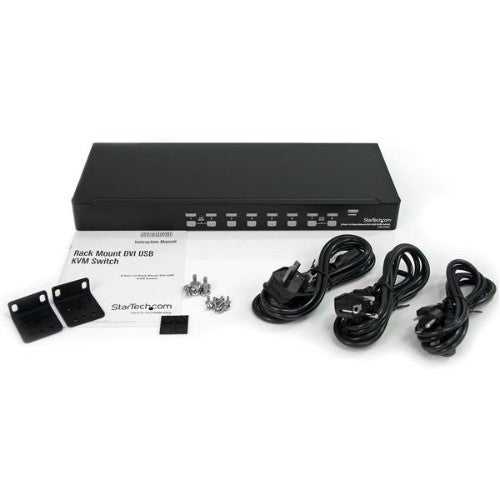

StarTech 8 Port 1U Rackmount DVI USB KVM Switch - USB DVI KVM Switch - DVI KVM Switch - USB KVM Switch , TAA (SV831DVIU)
Key Features
- Supports DVI/HDMI resolutions up to 1920x1200
- Can be used with DVI to HDMI adapters to connect HDMI based systems
- Support for most combo/wireless keyboard and mice
- OS independent – No software or drivers required
- Front panel push-buttons and Hot-key functions allow for easy switching
- Auto-scan function cycles through computers sequentially
- Connects to USB-based computer systems
- USB console interfaces for keyboard and mouse
- Supports Mac® and Sun keyboard mapping - Keyboard states automatically saved
- and restored when switching
- computers
- Supports Microsoft IntelliMouse
- (Pro)
Description
Control up to 8 USB computers with DVI or HDMI® video, from one keyboard, mouse and monitor
The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
Specifications
| Ports & interfaces |
|---|
| Number of computers controlled |
8 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DVI-I |
| Audio connections |
No |
| USB 2.0 ports quantity |
10 |
| Network |
|---|
| Ethernet LAN |
No |
| Performance |
|---|
| Maximum resolution |
1920 x 1200 pixels |
| Maximum analog resolution |
1920 x 1200 pixels |
| Daisy chain |
No |
| Design |
|---|
| Product colour |
Black |
| Rack mounting |
Yes |
| Mean time between failures (MTBF) |
45254 h |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Certification |
CE, FCC |
| Rack capacity |
1U |
| Housing material |
Steel |
| Power |
|---|
| Output voltage |
12 V |
| Input current |
1.8 A |
| Output current |
4 A |
| Power plug type |
Type M |
| External power adapter |
Yes |
| Compatible power plug types |
AU, EU, UK, US |
| Input voltage |
100-240 V |
| Video |
|---|
| Maximum resolution |
1920 x 1200 pixels |
| Maximum analog resolution |
1920 x 1200 pixels |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
17.2" (438 mm) |
| Depth |
7.09" (180 mm) |
| Height |
1.73" (44 mm) |
| Weight |
7.72 lbs (3.5 kg) |
| Package width |
23.4" (595 mm) |
| Package depth |
10.4" (265 mm) |
| Package height |
3.54" (90 mm) |
| Package weight |
8.31 lbs (3.77 kg) |
| Packaging data |
|---|
| Package width |
23.4" (595 mm) |
| Package depth |
10.4" (265 mm) |
| Package height |
3.54" (90 mm) |
| Package weight |
8.31 lbs (3.77 kg) |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Manual |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC |
| Other features |
|---|
| IP control |
Yes |
| Hot keys |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
11.3" (288 mm) |
| Master (outer) case length |
24" (610 mm) |
| Master (outer) case height |
16.1" (408 mm) |
| Products per master (outer) case |
4 pc(s) |
| Harmonized System (HS) code |
85176200 |
