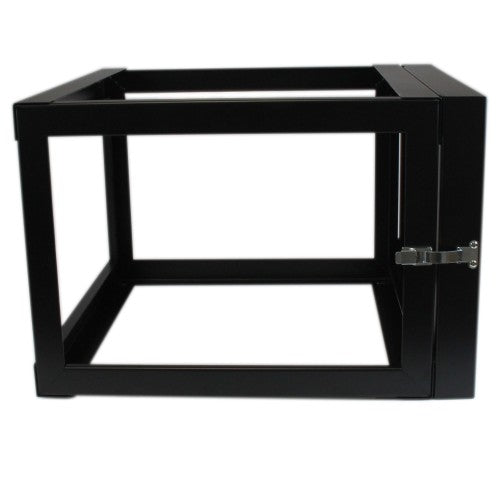

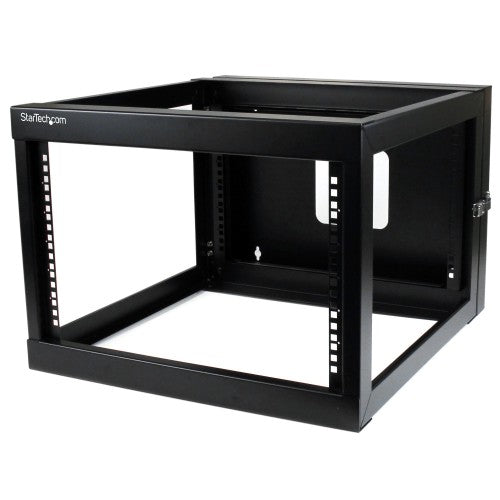

StarTech 4-Post 6U Hinged Wall-Mount Network Rack, 19" Open Frame Server Rack with 19.8in Mounting Depth, Wall Mount Swing Out Data Rack for IT / AV / Computer Equipment
Key Features
- 4-POST 6U HINGED WALL-MOUNT RACK: IT Server Rack with 19.8in (50.2cm) maximum mounting depth is ideal for installing network switches out of the way (for example high up on a wall) in your warehouse, office, server room or store location

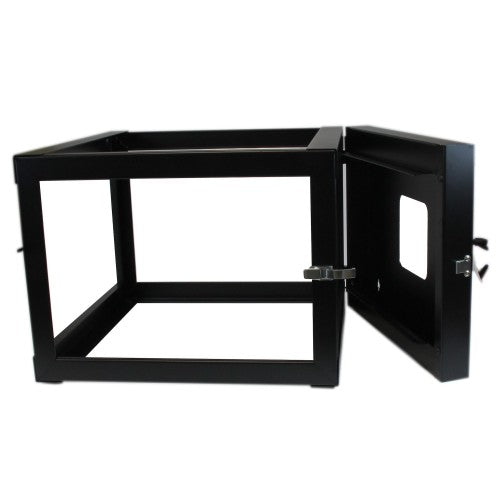

- OPTIMIZED DESIGN: The Wall Mount Data Rack features a hinged open frame rack design that allows the entire frame to swing open for easy installation and maintenance; Unobstructed airflow helps to keep your Data / AV / IT equipment cool
- BUILT TO LAST: The 6U wall mount computer equipment rack offers a 4 post design for additional support of your equipment; Constructed of high-quality SPCC cold-rolled steel for strength and durability with a maximum weight capacity of 109lbs (49kg)

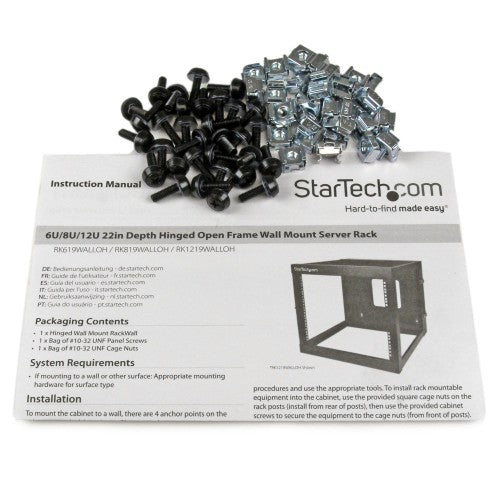

- FULLY ASSEMBLED: The hinged server rack ships fully assembled with all of the rack screws and cage nuts required to mount your equipment; Hinged Data Rack is EIA/ECA-310-E Compliant
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 6U wall mounted network rack is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Description
Wall-mount your server or networking equipment with a hinged rack design for easy access and maintenance
The RK619WALLOH 6U Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment.
The 6U wallmount rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 49kg (110lbs) with a maximum mounting depth of 19.8inch (50.2cm). Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.
Specifications
| Weight & dimensions |
|---|
| Package width |
26.2" (665 mm) |
| Package depth |
28.3" (720 mm) |
| Package height |
20.6" (522 mm) |
| Package weight |
36.2 lbs (16.4 kg) |
| Width |
21.9" (556 mm) |
| Depth |
23.7" (602 mm) |
| Height |
16.1" (408 mm) |
| Weight |
30.9 lbs (14 kg) |
| Mounting depth (max) |
19.8" (50.2 cm) |
| Packaging content |
|---|
| Nuts included |
Yes |
| Number of nuts |
24 |
| Manual |
Yes |
| Screws included |
Yes |
| Number of screws |
24 |
| Features |
|---|
| Castor wheels |
No |
| Adjustable mounting rails |
No |
| Cable management |
No |
| Mounting hole shape |
Square |
| Front door key lock |
No |
| Type |
Wall mounted rack |
| Rack capacity |
6U |
| Number of fans |
0 fan(s) |
| Maximum weight capacity |
109.8 lbs (49.8 kg) |
| Key lock |
No |
| Frame type |
Open |
| Product design |
4-post |
| Product colour |
Black |
| Material |
Steel |
| Packaging data |
|---|
| Nuts included |
Yes |
| Number of nuts |
24 |
| Manual |
Yes |
| Package width |
26.2" (665 mm) |
| Package depth |
28.3" (720 mm) |
| Package height |
20.6" (522 mm) |
| Package weight |
36.2 lbs (16.4 kg) |
| Screws included |
Yes |
| Number of screws |
24 |
| Technical details |
|---|
| Harmonized System (HS) code |
85381000 |
| Compliance certificates |
CE, RoHS |
| Rack capacity |
6U |
| Logistics data |
|---|
| Master (outer) case width |
26.2" (665 mm) |
| Master (outer) case length |
28.3" (720 mm) |
| Master (outer) case height |
20.6" (522 mm) |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85381000 |
| Other features |
|---|
| Compliance industry standards |
EIA/ECA-310-E |
