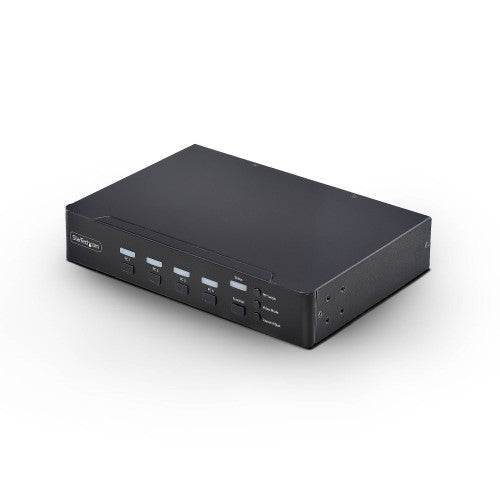

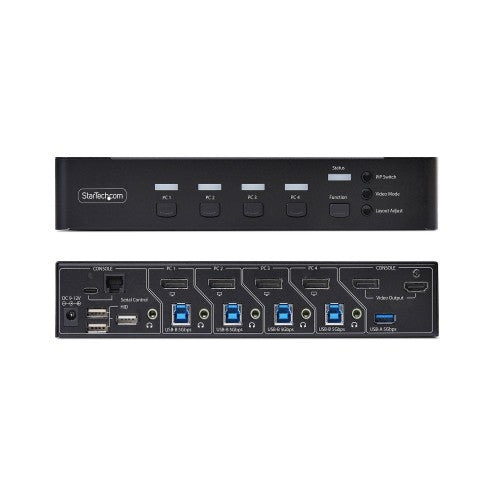

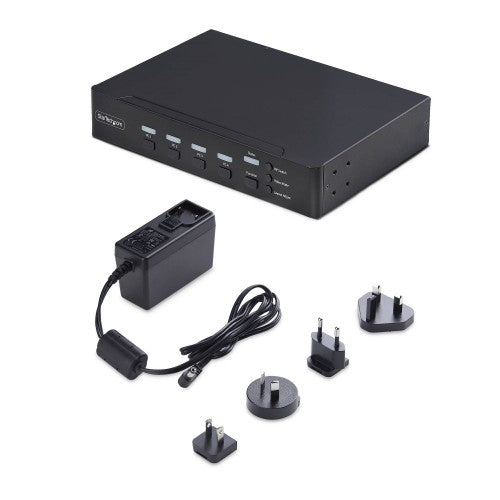

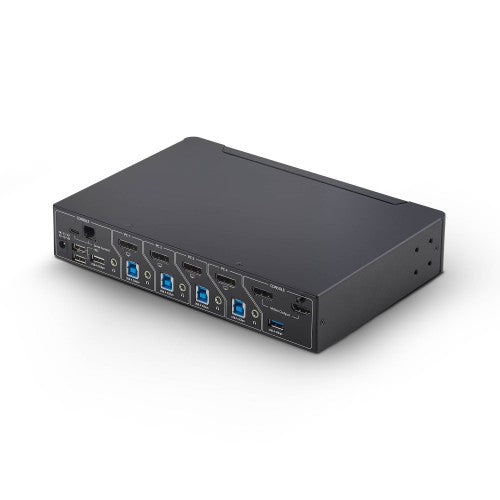

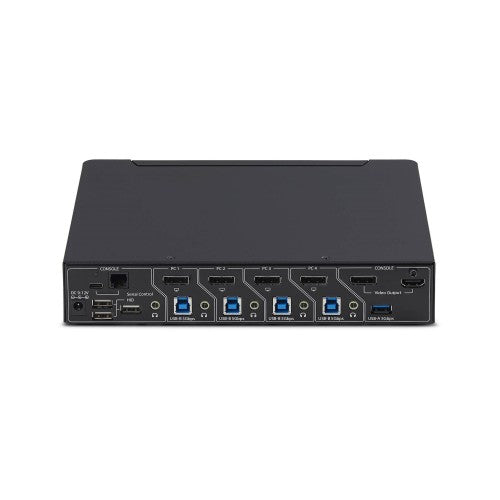

StarTech 4-Port DisplayPort KVM Switch with Mouse Roaming and Multi-View / Picture-in-Picture, 4K 60Hz, USB 3.0 (5Gbps) Hub, TAA
Key Features
-
4-Port Multiview KVM Switch: Control up to four DisplayPort computers using one USB keyboard, mouse, and DP monitor; Supports 4K 60Hz (4:4:4) resolution for sharp text and visuals across professional workstations; Works with Windows, macOS, and Linux
-
Multiple Display Modes for Maximum Productivity: Improve efficiency, system awareness, and response time by viewing and managing up to four computers at once using Full Screen, Quad-View, Picture-in-Picture (PiP), and Picture-by-Picture (1+3 or 3+1 PbP) modes
-
Seamless Mouse Switching with Zero Delay: Instantly switch between connected computers using mouse roaming, with no screen blackout or latency; Continuous video output minimizes disruption and keeps workflows smooth in control rooms and industrial environments
-
Adapt Switching to Any Workflow: Switch systems using front-panel buttons, hotkeys, mouse roaming, mouse side buttons, or serial control via RJ-11 or USB-C, allowing users to manage systems in a way that best fits their environment or automation needs
-
Dual Console Video Outputs for Greater Flexibility: Simultaneously display the same KVM output on two monitors (1x DP / 1x HDMI) without additional hardware, improving visibility, collaboration, and redundancy for IT and control-room environments
Description
Control up to four DisplayPort computers with mouse roaming, quad view, and picture-in-picture support
Streamline complex workflows by managing up to four DisplayPort computers from a single keyboard, mouse, and display. With support for true 4K 60 Hz (4:4:4) resolution, this multiview KVM delivers crisp text and precise visuals across Windows, macOS, and Linux workstations.
Multiview MonitoringMaintain full awareness and react faster by viewing multiple systems at once. Flexible display modes including Quad-View, Picture-in-Picture (PiP), and Picture-by-Picture (PbP) let you monitor and compare the four sources.
Instant Switching With Continuous VideoMove seamlessly between systems using mouse roaming with zero latency and no screen blackout. Continuous video output keeps every system visible at all times, eliminating delays caused by switching or waiting for auto-scan cycles, reducing disruption in control rooms, industrial environments, and other time-sensitive operations.
Switch Your WayAdapt the KVM to your environment with multiple switching methods. Use front-panel buttons, keyboard hotkeys, mouse roaming, mouse side buttons, or serial control via RJ-11 or USB-C to support hands-on use, remote management, or automated workflows.

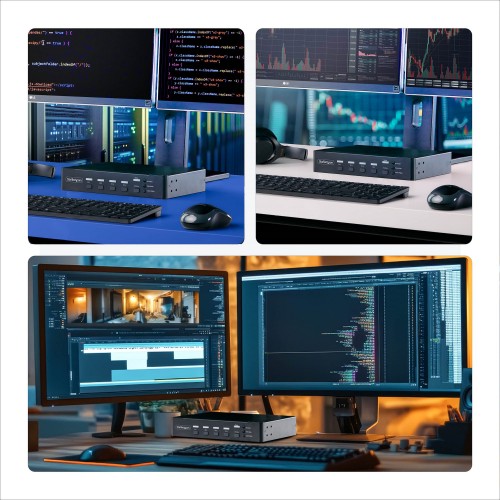

Built-In Dual Display OutputMirror the KVM output to two displays simultaneously using DisplayPort and HDMI. Use a local desktop monitor for hands-on control while displaying the same view on a larger wall-mounted TV for monitoring or team visibility. This dual console output improves visibility, collaboration, and redundancy without requiring external splitters or additional hardware.
Specifications
| Ports & interfaces |
|---|
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Audio connections |
Yes |
| DisplayPorts quantity |
4 |
| DisplayPort version |
1.2 |
| Headphone outputs |
5 |
| DC-in jack |
Yes |
| Console USB ports quantity |
4 |
| Console ports |
DisplayPort, USB A, USB C |
| USB hub |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
1 |
| Console DisplayPorts ports quantity |
1 |
| Console HDMI ports quantity |
1 |
| RJ-11 ports quantity |
1 |
| Performance |
|---|
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Daisy chain |
No |
| Design |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Push button |
Yes |
| Mean time between failures (MTBF) |
130000 h |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Housing material |
Steel, Aluminum |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Power |
|---|
| Output voltage |
12 V |
| Input current |
1 A |
| Power source |
DC |
| Output current |
3 A |
| Power consumption (typical) |
36 W |
| External power adapter |
Yes |
| Compatible power plug types |
EU, UK, US, AU |
| Input voltage |
100 - 240 V |
| Video |
|---|
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Technical details |
|---|
| USB hub |
Yes |
| Compliance certificates |
Trade Agreements Act (TAA), Federal Communications Commission (FCC), RoHS |
| Sustainability |
|---|
| Compliance certificates |
Trade Agreements Act (TAA), Federal Communications Commission (FCC), RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
5.12" (130 mm) |
| Depth |
8.66" (220 mm) |
| Height |
1.57" (40 mm) |
| Weight |
2.31 lbs (1.05 kg) |
| Package width |
14.4" (365 mm) |
| Package depth |
9.25" (235 mm) |
| Package height |
2.95" (75 mm) |
| Package weight |
6.88 oz (195 g) |
| Packaging data |
|---|
| Package width |
14.4" (365 mm) |
| Package depth |
9.25" (235 mm) |
| Package height |
2.95" (75 mm) |
| Package weight |
6.88 oz (195 g) |
| Packaging content |
|---|
| Rubber feet |
Yes |
| Manual |
Yes |
| Other features |
|---|
| IP control |
No |
| Push button |
Yes |
| Hot keys |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
19.5" (495 mm) |
| Master (outer) case length |
15.2" (385 mm) |
| Master (outer) case height |
10.4" (265 mm) |
| Products per master (outer) case |
6 pc(s) |
