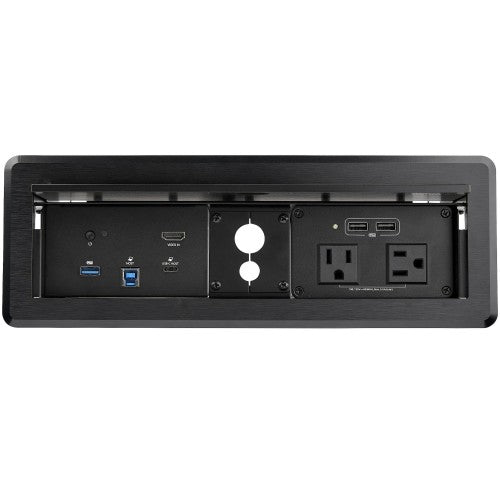

StarTech.com StarTech.com Conference Room Docking Station with Power/Charging; Table Connectivity Box, Universal USB-C Laptop Dock, 60W PD, 4K HDMI, USB Hub, Audio, 2x AC Outlets, 2xUSB Charge Ports (KITBXDOCKPNA)
Key Features

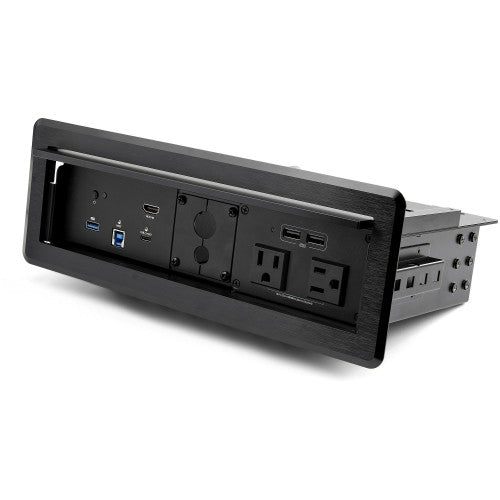

- CONFERENCE TABLE BOX FOR DOCKING & POWER: Setup an in-desk/in-table conference room docking station w/ USB-C or USB-A host connectivity to connect all your boardroom or workstation peripherals; Easy one-cable docking; Integrated USB charging & AC power

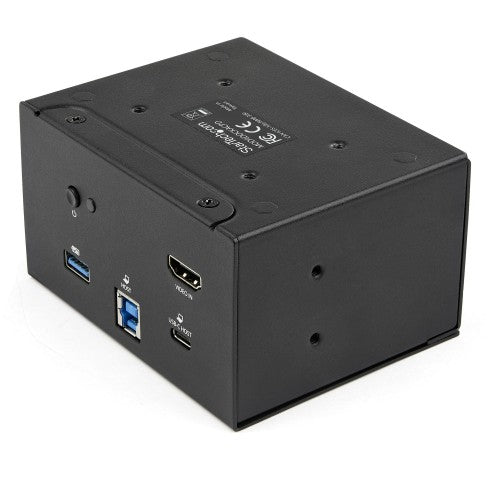

- AUDIO/VIDEO FLEXIBILITY: Supports auto switching between USB-C or USB-A host laptops; USB-C (DP Alt-mode/DisplayLink), USB-A (DisplayLink), or HDMI pass through video ports (HDMI mode for AV connectivity only); Up to 4K UHD (3840x2160 30Hz) & 7.1 CH audio

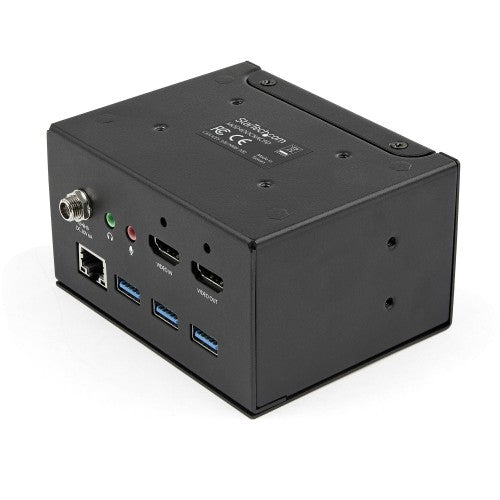

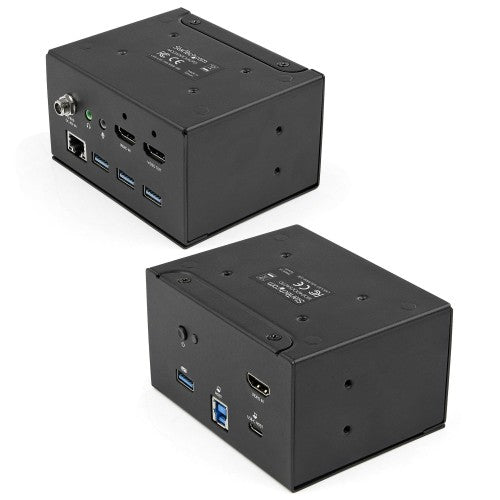

- DOCKING CONNECTIVITY PORTS: Integrated USB 3.0 5Gbps hub with 4x USB-A ports (incl. 1x BC1.2 fast charge port) / Gigabit Ethernet / 3.5mm mic input and 3.5mm stereo audio output; Charge your laptop via USB-C Power Delivery up to 60W
- COMPATIBILITY: This conference room connectivity box works with conferencing collaboration apps like MS Teams/Zoom/others; Works with USB-A, USB-C & Thunderbolt 3 laptops; Works w/ Windows (7+)/macOS (v10.8+)/Linux (v4.15+)/iPadOS/ChromeOS (v55+)

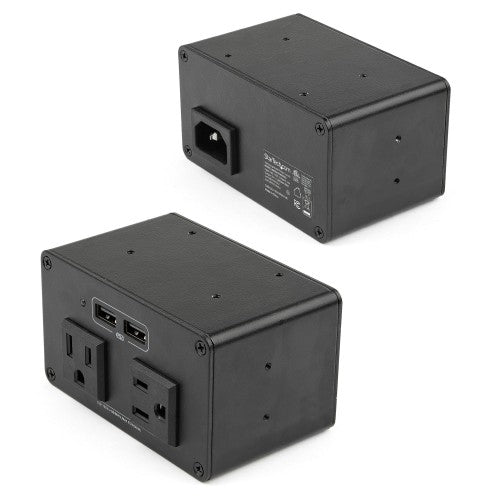

- POWER AND CHARGE YOUR DEVICES: Easy access to AC power outlets that are positioned for use w/larger power adapters & USB charging hub; 2x UL Certified 100-125V AC (50-60Hz) sockets 10A total & 2x USB Type-A BC 1.2 charge ports (up to 2.4A/port)
- SAFETY & RELIABILITY: Power center w/ AC electrical outlets (UL 62368-1 certified AC outlets); USB-A fast charge ports (cETLus certified USB ports); Incl. manual, cut-out template, all mounting hardware / bracket(s) for in table or under the table install
Description
4K HDMI® | USB-C™ and USB-A Host Compatibility | USB-C PD | 2x AC and 2x USB-AThe StarTech.com Advantage
Specifications
| Video |
|---|
| Maximum resolution |
3840 x 2160 pixels |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Data transfer rate (max) |
5 Gbit/s |
| Design |
|---|
| Product colour |
Black |
| LED indicators |
Power |
| Certification |
RoHS, TAA, CE, FCC |
| Features |
|---|
| Product colour |
Black |
| LED indicators |
Power |
| Certification |
RoHS, TAA, CE, FCC |
| Chipset |
DisplayLink - DL-6950, Genesys Logic - GL850G, Texas Instruments - TPS65982, Parade Technologies - PS176, VIA Labs - VL813, Realtek - RTL8153 |
| Operating systems supported |
Windows 7, 8, 8.1, 10, 11
macOS 10.9 - 10.12, 10.14, 10.15, 11.0, 12.0, 13.0 Ventura
Chrome OS v55+ |
| Ports & interfaces |
|---|
| HDMI ports quantity |
3 |
| Audio input |
1 x 3.5 mm |
| Audio output |
1 x 3.5 mm |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
1 |
| HDMI input ports quantity |
2 |
| HDMI output ports quantity |
1 |
| USB 2.0 Type-A ports quantity |
2 |
| Power |
|---|
| AC adapter input voltage |
100 - 240 V |
| AC adapter output voltage |
20 V |
| AC adapter output current |
6 A |
| Power plug type |
Type N |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 65 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Weight & dimensions |
|---|
| Width |
12.5" (318 mm) |
| Package width |
14" (355 mm) |
| Package depth |
15.4" (390 mm) |
| Depth |
6.5" (165 mm) |
| Package height |
11" (280 mm) |
| Height |
4.33" (110 mm) |
| Weight |
5.95 lbs (2.7 kg) |
| Package weight |
14.3 lbs (6.5 kg) |
| Packaging content |
|---|
| Cables included |
AC, USB |
| AC adapter included |
Yes |
| Screws included |
Yes |
| Quick start guide |
Yes |
| Number of screws |
36 |
| Logistics data |
|---|
| Master (outer) case width |
14.2" (360 mm) |
| Master (outer) case length |
5.51" (140 mm) |
| Master (outer) case height |
9.45" (240 mm) |
| Products per master (outer) case |
1 pc(s) |
