StarTech.com 7-Port Industrial USB 10Gbps Hub with Power Adapter, Metal, Mountable, 5x USB-A/2x USB-C Downstream Ports, TAA
Key Features
- 7-PORT INDUSTRIAL USB HUB: Plug-and-play USB 3.2 Gen 2 hub with durable metal housing, ideal for harsh environments; Features 5x USB-A plus 2x USB-C ports with 10Gbps shared bandwidth, ESD Protection (15kV air/8kV contact) and 350W surge protection

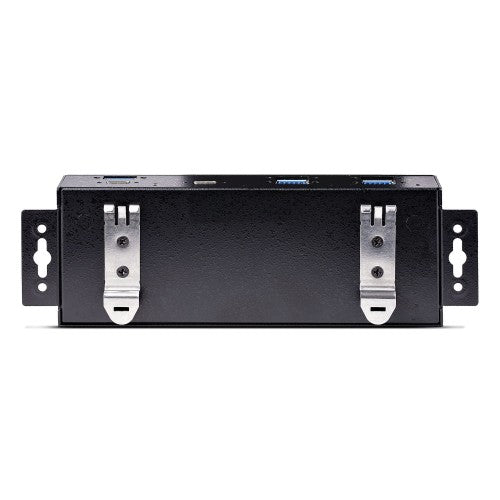

- VERSATILE MOUNTING: Securely install on or under a desk, wall, or DIN rail with built-in mounting ears and included DIN clips; Includes two 3.3ft (1m) USB-C to C/USB-C to A cables with screw lock USB-C host connector to prevent unwanted disconnections
- HIGH-SPEED DATA TRANSFER: Achieve speeds up to 10Gbps on all downstream ports, ideal for data storage banks, SSDs, NVMe enclosures, RAID enclosures, 3D printers/scanners, and more; Backwards compatible with USB 3.0 (5Gbps), 2.0 and 1.x
- POWER AND CHARGE: Functions as a charging station when not connected to a host; Provides 12W (2.4A) on all ports up to a total 40W draw; Powered via universal adapter (included) or 7-24V DC terminal block
- COMPATIBILITY: OS independent and tested for compatibility with Windows/macOS/Linux/ChromeOS; No drivers or software required; USB Event Monitoring Utility available; TAA Compliant
Description
Add 7 external, wall mountable USB 3.2 (10Gbps) ports from a single USB-C connection
The 7-Port Industrial USB 10Gbps Hub with Power Adapter features 5x USB-A and 2x USB-C device ports. Built with a durable all-metal enclosure, it withstands harsh and industrial environments while offering Level-4 Electrostatic Discharge (ESD) protection (15kV Air / 8kV Contact) to safeguard connected devices. For secure connections, this hub includes two 3.3ft (1m) USB cables (USB-C to C & USB-C to A) with side screw locking to prevent accidental disconnection. The hub can be surface-mounted (on or under a desk, wall-mounted) or DIN rail-mounted, ensuring a secure and space-efficient installation.
Power & Charging

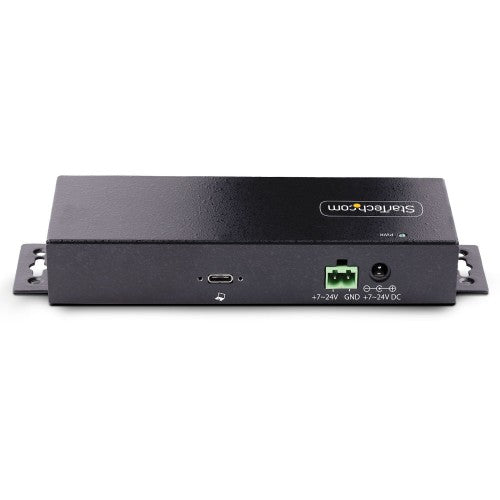

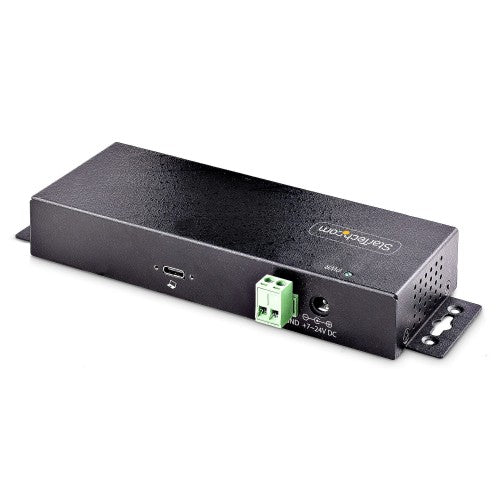

This versatile hub can be powered via the included universal power adapter or the 7-24V DC terminal block, making it ideal for industrial settings or where standard power outlets may be limited.
When not connected to a host, the hub functions as a dedicated charging station, supporting BC1.2 charging / Dedicated Charging Port (DCP) across all ports. Each port delivers up to 2.4A, with a total power budget of 40W (8A) when all ports are in use, ensuring efficient charging for multiple high-powered peripherals.
High-Speed Data Transfer
With speeds of up to 10Gbps on all downstream ports, this hub is ideal for data storage banks, SSDs, NVMe enclosures, RAID drive enclosures, and 3D printers/scanners. It is fully backwards compatible with USB 3.2 Gen 1 (5Gbps), USB 2.0, and USB 1.x devices.
OS-Independent
This TAA Compliant hub is compatible with all operating systems and host devices and has been tested for compatibility with Windows, macOS, Linux, and ChromeOS.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Ports quantity |
7 |
| Hub interfaces |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| DC-in jack |
Yes |
| Terminal block port |
Yes |
| Features |
|---|
| Data transfer rate |
10000 Mbit/s |
| Surge protection |
Yes |
| LED indicators |
Yes |
| Product colour |
Black |
| Housing material |
Steel |
| Electrostatic Discharge (ESD) protection (air) |
15 kV |
| Electrostatic Discharge (ESD) protection (contact) |
8 kV |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Power |
|---|
| Input voltage |
100 - 240 V |
| Power supply type |
DC |
| Weight & dimensions |
|---|
| Width |
1.02" (26 mm) |
| Depth |
2.36" (60 mm) |
| Height |
7.01" (178 mm) |
| Weight |
10.6 oz (300 g) |
| Package width |
11.4" (290 mm) |
| Package depth |
7.36" (187 mm) |
| Package height |
2.76" (70 mm) |
| Package weight |
3.09 lbs (1.4 kg) |
| Packaging data |
|---|
| Package width |
11.4" (290 mm) |
| Package depth |
7.36" (187 mm) |
| Package height |
2.76" (70 mm) |
| Package weight |
3.09 lbs (1.4 kg) |
| Performance |
|---|
| Data transfer rate |
10000 Mbit/s |
| Surge protection |
Yes |
| Mean time between failures (MTBF) |
163021.7 h |

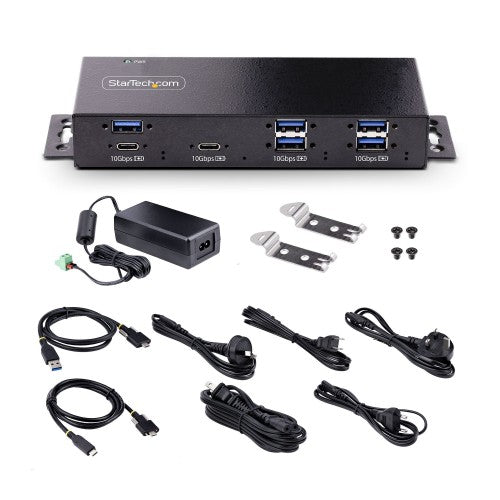

| Packaging content |
|---|
| Included power plug types |
ANZ, EU, JP, NA, UK |
| Cables included |
USB Type-A to USB Type-C, USB Type-C to USB Type-C |
| AC adapter included |
Yes |
| DIN rail kit included |
Yes |
| Quick start guide |
Yes |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Logistics data |
|---|
| Master (outer) case width |
20.3" (515 mm) |
| Master (outer) case length |
15.4" (390 mm) |
| Master (outer) case height |
12.3" (313 mm) |
| Products per master (outer) case |
14 pc(s) |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Other features |
|---|
| Chipset |
VIA/VLI VL822 |
