StarTech.com DisplayPort KVM Extender over Fiber Optic, 4K 60Hz, Console Extender Kit, Up to 984ft/300m (Multi-mode)
Key Features
- FIBER OPTIC KVM EXTENDER: Control a KVM switch, console, or PC at a distance of up to 984ft (300m) away over multi-mode cabling using pre-installed SFP+ modules; Supports single-mode SFP+ modules (sold separately) to extend the range up to 1,640ft (500m)
- 4K 60HZ DISPLAYPORT VIDEO: Transmitter and receiver extension kit supports UHD resolutions up to 3840x2160 60Hz (4:4:4); EDID pass-through ensures optimal signal quality and compatibility by providing real-time display information; DP 1.2 compliant
- UNIVERSAL COMPATIBILITY: No drivers or software required and works with any operating system including Windows, macOS, and Linux; Point-to-point fiber connection means no network settings to configure or manage; SFP+ slots support MSA-compliant modules
- USB PERIPHERAL PORTS: USB HID ports allow users to connect a variety of peripherals, including mice, keyboards, or other input devices; Ideal for remote device control, flexible workstation setups, and collaborative multimedia environments
- DURABLE DESIGN: Durable steel housing and fiber extension method help prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the extender; Sturdy construction makes it ideal for installation in a variety of environments
Description
Control a DisplayPort-equipped computer or KVM switch up to 300m (985ft) away over fiber-optic cable
The Fiber Optic KVM Extender allows for control of a KVM switch, console, or PC from a distance of up to 984ft (300m).
4K 60Hz DisplayPort Video
The transmitter/receiver kit extends 4K 60Hz DisplayPort video, supporting UHD resolutions up to 3840x2160 at 60Hz (4:4:4). It is DP 1.2 compliant and includes EDID pass-through for real-time display information, ensuring optimal signal quality and compatibility.
Universal Compatibility
The KVM Console Extender does not require any drivers or software for installation. The point-to-point fiber connection eliminates the need for configuring or managing network settings. The extender is compatible with all operating systems, including Windows, macOS, and Linux. The SFP+ slots support both single and multi-mode MSA-compliant modules.
Built-In USB Hub
Three USB ports allow users to connect peripherals such as a mouse and keyboard, ideal for remote control of source devices, flexible workstation setups, and collaborative multimedia environments.
Durable Design
The extender has a sturdy steel chassis and uses fiber-optic extension to reduce electromagnetic interference (EMI), improving stability and ensuring long-term reliability. Its rugged design makes it suitable for installation in various environments.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Type |
Transmitter & receiver |
| Connectivity technology |
Wired |
| Maximum transfer distance |
11811" (300 m) |
| Maximum digital resolution |
4096 x 2160 pixels |
| On Screen Display (OSD) |
No |
| Product colour |
Black |
| LED indicators |
Yes |
| Supported resolutions |
4096 x 2160 @ 60hz
3840 x 2160 @ 60hz
3440 x 1440 @ 60hz
3200 x 1800 @ 60hz
3072 x 1728 @ 60hz
2560 x 1440 @ 60hz
2048 x 1536 @ 60hz
1920 x 1200 @ 60hz
3840 x 1080 @ 60hz
1920 x 1080 @ 60hz
1760 x 990 @ 60hz
1680 x 1050 @ 60hz
1600 x 1200 @ 60hz
1600 x 900 @ 60hz
1440 x 900 @ 60hz
1366 x 768 @ 60hz
1280 x 1024 @ 60hz
1280 x 720 @ 60hz
1128 x 634 @ 60hz
1024 x 768 @ 60hz
800 x 600 @ 60hz |
| USB 1.1 ports quantity |
3 |
| Maximum refresh rate |
60 Hz |
| Mean time between failures (MTBF) |
156000 h |
| Extended display identification data (EDID) |
Yes |
| Transmitter |
|---|
| Transmitter local video port |
Yes |
| Transmitter local video port type |
DisplayPort |
| Number of displays supported |
1 |
| Transmitter Micro-USB ports quantity |
1 |
| Receiver |
|---|
| Receiver local video port type |
DisplayPort |
| Receiver Micro-USB ports quantity |
2 |
| Ports & interfaces |
|---|
| USB 1.1 ports quantity |
3 |
| Installed SFP+ modules quantity |
2 |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC adapter output voltage |
5 V |
| AC adapter output current |
2 A |
| Power consumption (transmitter) (max) |
10 W |
| Power consumption (receiver) (max) |
10 W |
| Input current |
0.3 A |
| Weight & dimensions |
|---|
| Transmitter width |
2.91" (7.4 cm) |
| Transmitter depth |
3.94" (10 cm) |
| Transmitter height |
1.1" (2.8 cm) |
| Transmitter weight |
8.29 oz (235 g) |
| Receiver width |
2.91" (7.4 cm) |
| Receiver depth |
3.94" (10 cm) |
| Receiver height |
1.1" (2.8 cm) |
| Receiver weight |
8.29 oz (235 g) |
| Package width |
12" (306 mm) |
| Package depth |
6.89" (175 mm) |
| Package height |
2.76" (70 mm) |
| Packaging data |
|---|
| Package width |
12" (306 mm) |
| Package depth |
6.89" (175 mm) |
| Package height |
2.76" (70 mm) |
| Cables included |
Mini-USB |
| Quick installation guide |
Yes |

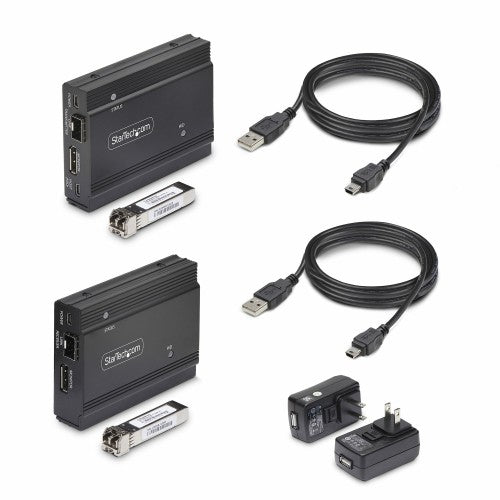

| Packaging content |
|---|
| Cables included |
Mini-USB |
| Quick installation guide |
Yes |
| Included power plug types |
ANZ, EU, NA, UK |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Other features |
|---|
| Mean time between failures (MTBF) |
156000 h |
| Extended display identification data (EDID) |
Yes |
| Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
| Logistics data |
|---|
| Master (outer) case width |
16.1" (410 mm) |
| Master (outer) case length |
12.7" (323 mm) |
| Master (outer) case height |
10.8" (275 mm) |
| Products per master (outer) case |
6 pc(s) |
