StarTech 4-Port Thunderbolt™ 5 Hub with Thunderbolt™ Share KVM, 80 / 120Gbps, 8K 60Hz or 4K 144Hz, 140W PD, USB-A 10Gbps, TB4 & USB4, MacBook M5 Pro M5 Max
Key Features
-
KVM Like Experience via Thunderbolt™ Share: Included Thunderbolt Share software enables two PCs to share one keyboard, mouse, and display over a single Thunderbolt cable, no switch needed; Features file transfer, shared control, PC migration (Windows only)
-
Unlock Full Display Potential of Apple Silicon: This hub supports dual 6K 60Hz on MacBook Air and entry MacBook Pro, up to Triple 4K 144Hz on MacBook Pro with M5 Pro, or Quad 4K displays when daisy chaining 2 Thunderbolt monitors with M5 Max
-
Connect High-Performance Peripherals: Three Thunderbolt™ 5 ports plus USB-A 10Gbps downstream unlock multiple 8K or 6K displays, NVMe storage, high-speed SSDs, network adapters, daisy-chained TBT devices, and USB-C devices up to 80Gbps
-
Power and Charge for the Modern IT Fleet: Provides up to 140W laptop charging, downstream TB5 ports support 15W Power Delivery, and a dedicated USB-A 10Gbps port (7.5W) for mobile device charging
-
Deployable and Secure Design for Enterprise Use: Rugged aluminum chassis with K-Slot, power button, VESA-mount compatibility (40x40mm pattern), and bundled 3.3ft (1m) TB5 host cable
Description

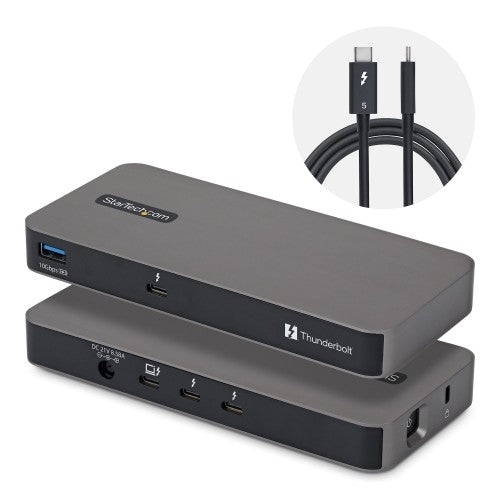

Thunderbolt™ 5 hub with three TB5 downstream ports for triple 8K video, 140W charging, USB-A, and Thunderbolt™ Share
Thunderbolt Certified, USB4 Compatible HubUnlock enterprise-grade performance with a compact Thunderbolt™ 5 hub built for demanding workflows. Featuring up to 80/120Gbps throughput, 140W laptop charging, and expansive peripheral support, this hub powers high-speed storage, displays, and devices from a single Thunderbolt connection.
KVM‑Like Control with Thunderbolt™ ShareIncluded Thunderbolt™ Share software enables two Windows PCs to share a single keyboard, mouse, and display over one Thunderbolt cable, with no KVM switch required. With support for file transfer, shared control, and PC migration, it streamlines multi-PC workflows with ultra-low latency.

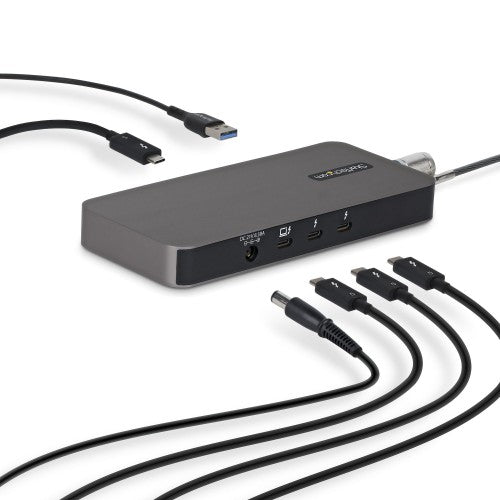

Enterprise‑Grade Performance and ExpansionHarness Thunderbolt™ 5's full bandwidth for intensive workloads, including Thunderbolt and USB4 NVMe storage with throughput up to 6,200MB/s. Three Thunderbolt 5 ports and a USB‑A 10Gbps port support high-speed SSDs, network adapters, daisy‑chained Thunderbolt devices, and USB‑C peripherals.
Advanced Display and Charging CapabilitiesConnect multiple high-resolution displays, including 8K or 6K monitors, while powering your system. The hub delivers up to 140W Power Delivery for laptops, 15W PD on downstream Thunderbolt ports, and 7.5W (1.5A) charging on the USB‑A port for mobile devices.

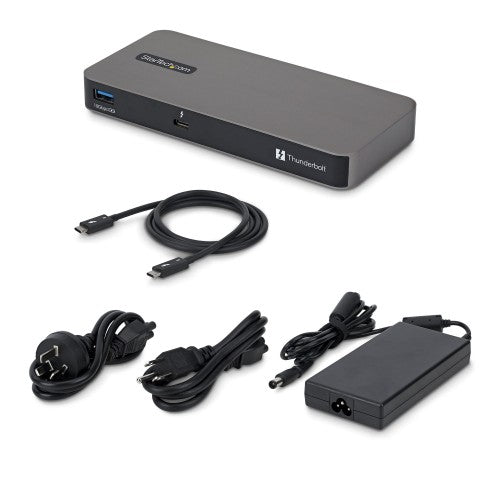

Secure, Deployable Design for IT EnvironmentsBuilt with a rugged aluminum chassis, this hub includes a K‑slot security lock, power button, and 40x40mm VESA mounting support for clean, secure installations. A 3.3ft (1m) Thunderbolt™ 5 host cable is included for fast deployment in enterprise or shared workspaces.
Specifications
| Ports & interfaces |
|---|
| Host interface |
Thunderbolt 5 |
| Ports quantity |
4 |
| Hub interfaces |
Thunderbolt 5, USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| Thunderbolt ports quantity |
3 |
| Cable lock slot type |
Kensington |
| Features |
|---|
| Data transfer rate |
80 Mbit/s |
| LED indicators |
Power |
| Product colour |
Gray |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.1 |
| USB Power Delivery up to |
140 W |
| HD type |
8K Ultra HD |
| Supported graphics resolutions |
7680 x 4320 |
| Host interface |
Thunderbolt 5 |
| Network |
|---|
| UASP support |
Yes |
| Power |
|---|
| Power consumption (typical) |
180.18 W |
| Output voltage |
21 V |
| Output current |
8.58 A |
| System requirements |
|---|
| Windows operating systems supported |
Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported |
Mac OS 26 Tahoe, Mac OS X 15.0 Sequoia |
| Weight & dimensions |
|---|
| Width |
3.05" (77.5 mm) |
| Depth |
6.8" (172.6 mm) |
| Height |
0.787" (20 mm) |
| Weight |
15.9 oz (451 g) |
| Package width |
9.25" (235 mm) |
| Package depth |
5.71" (145 mm) |
| Package height |
3.9" (99 mm) |
| Package weight |
3.09 lbs (1.4 kg) |
| Packaging data |
|---|
| Package width |
9.25" (235 mm) |
| Package depth |
5.71" (145 mm) |
| Package height |
3.9" (99 mm) |
| Package weight |
3.09 lbs (1.4 kg) |
| Performance |
|---|
| Data transfer rate |
80 Mbit/s |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.1 |
| Packaging content |
|---|
| Included power plug types |
NA, JP, ANZ |
| Cables included |
Thunderbolt |
| AC adapter included |
Yes |
| Design |
|---|
| LED indicators |
Power |
| Product colour |
Gray |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Logistics data |
|---|
| Master (outer) case width |
15" (380 mm) |
| Master (outer) case length |
12.2" (310 mm) |
| Master (outer) case height |
11.2" (285 mm) |
| Products per master (outer) case |
10 pc(s) |
| Technical details |
|---|
| Compliance certificates |
RoHS, CE, Federal Communications Commission (FCC) |
| Other features |
|---|
| Chipset |
Intel - JHL9480, Parade - FL5801, Infineon - CYPM1322, Infineon - CYPD8225 |
