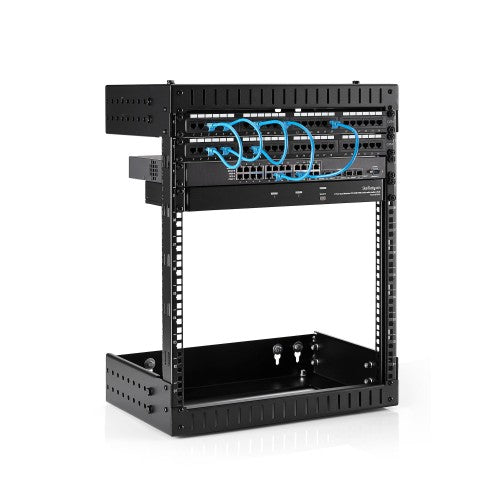

StarTech 2-Post 12U Heavy-Duty Wall Mount Network Rack, 19" Open Frame Server Rack with Adjustable Depth, Wall Mount Data Rack for IT / AV / Patch Panel / Computer Equipment (RK12WALLOA)
Key Features
- ADJUSTABLE DEPTH: This 2-post 12U 19 inch open frame network rack is EIA/ECA-310 compliant and has an adjustable depth (12-20in / 30.5-50.8cm); Data rack is ideal for AV / Audio / IT / computer equipment, servers, switches, patch panels, and PDUs
- HEAVY DUTY: Durable rack features a vertical rail made of SPCC cold-rolled steel and a weight capacity of up to 200lbs/90kg; Its design supports unobstructed airflow to help keep your equipment cool and easy to install with access to all sides
- EFFICIENT FLAT PACK SHIPPING: The IT rack ships flat packed with ISTA-6 certified packaging (assembly required) to ensure hassle-free installations with complete & undamaged delivery; Comprehensive assembly instructions included

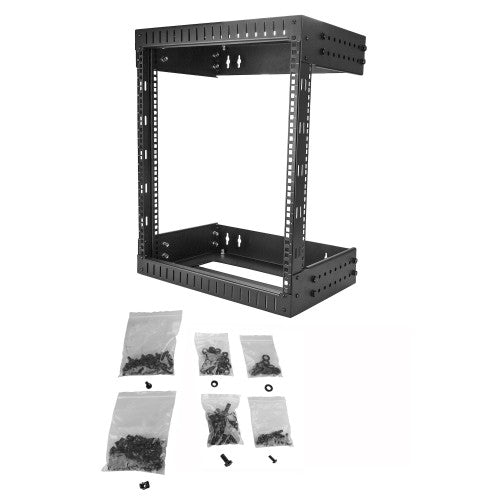

- HARDWARE INCLUDED: The open post wall mount server rack includes a complete set of M6 square cage nuts, M6 screws and plastic washers to securely mount all of your equipment in the rack
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 12U wall mounted network rack is backed for 5-years, including free lifetime 24/5 multi-lingual technical assistance
Description
Mount your network and telecommunications equipment with the convenience of adjustable depth
This open-frame wall-mount server rack provides 12U of storage, helping you to save space and stay organized. The equipment rack features an adjustable depth and can hold a total of up to 198 lb. (90 kg).
Easy, hassle-free installation

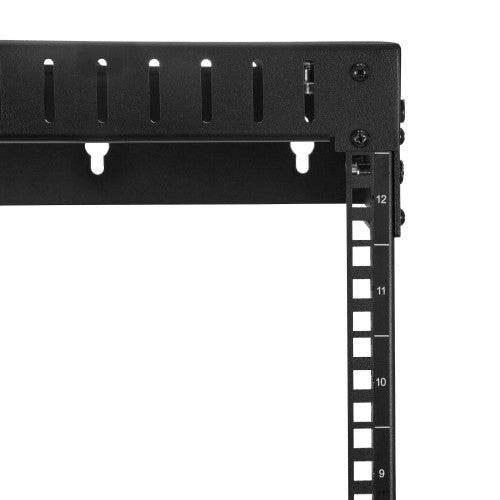

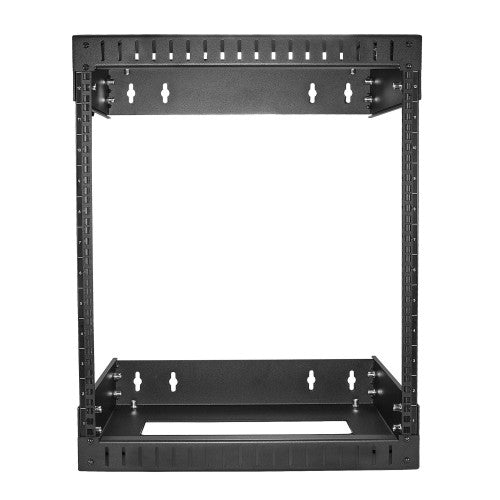

With adjustable depth to as low as 12 in. (30.5 cm) this network rack is perfect for smaller spaces. It's easy to assemble and features wall-mounting holes that are spaced 12 and 16 in. apart, making it suitable for mounting on almost any wall, based on North American wall-frame stud-spacing standards. The wall-mount rack comes in a flat-pack, which makes it easy to transport and saves you money on shipping.
Accommodate larger devices
The open-frame rack adjusts from 12 to 20 in. (30.5 to 50.8 cm) to accommodate larger data, network, and telecommunication devices. The above-average depth also gives you the option to mount shelves and other accessories.
Free up space
When space is limited you can mount the open-frame rack on a server room wall, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.
Keep your equipment cool and accessible

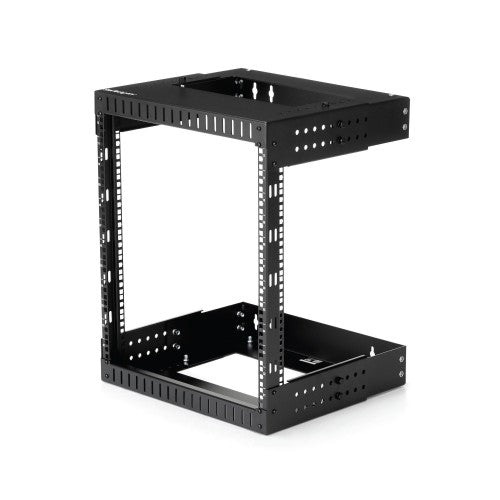

The rack's open frame design ensures passive cooling for your rack-mounted equipment. Additionally, the open frame provides easy access to your equipment and makes it easier to configure mounted devices, which saves you time.
Specifications
| Weight & dimensions |
|---|
| Package width |
27.1" (688 mm) |
| Package depth |
21.2" (538 mm) |
| Package height |
5.47" (139 mm) |
| Package weight |
37.5 lbs (17 kg) |
| Width |
19.8" (503 mm) |
| Depth |
20.1" (510 mm) |
| Height |
25.2" (640 mm) |
| Weight |
32.2 lbs (14.6 kg) |
| Mounting depth (max) |
19.9" (50.5 cm) |
| Packaging content |
|---|
| Nuts included |
Yes |
| Number of nuts |
48 |
| Manual |
Yes |
| Screws included |
Yes |
| Number of screws |
64 |
| Number of bolts |
24 |
| Number of washers included |
72 |
| Features |
|---|
| Adjustable mounting rails |
Yes |
| Cable management |
No |
| Mounting hole shape |
Square |
| Type |
Wall mounted rack |
| Rack capacity |
12U |
| Number of fans |
0 fan(s) |
| Maximum weight capacity |
198.4 lbs (90 kg) |
| Frame type |
Open |
| Product design |
2-post |
| Product colour |
Black |
| Material |
Steel |
| Certification |
CE, REACH |
| Packaging data |
|---|
| Nuts included |
Yes |
| Number of nuts |
48 |
| Manual |
Yes |
| Package width |
27.1" (688 mm) |
| Package depth |
21.2" (538 mm) |
| Package height |
5.47" (139 mm) |
| Package weight |
37.5 lbs (17 kg) |
| Screws included |
Yes |
| Number of screws |
64 |
| Number of bolts |
24 |
| Number of washers included |
72 |
| Technical details |
|---|
| Harmonized System (HS) code |
85381000 |
| Compliance certificates |
RoHS |
| Rack capacity |
12U |
| Logistics data |
|---|
| Master (outer) case width |
34.1" (865 mm) |
| Master (outer) case length |
23.4" (595 mm) |
| Master (outer) case height |
8.23" (209 mm) |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85381000 |
| Other features |
|---|
| Compliance industry standards |
EIA/ECA-310-E |
