StarTech.com Unmanaged 2.5G Switch - 5 Port Gigabit Switch - 2.5GBASE-T Unmanaged Ethernet Switch - Ethernet Splitter - Din Rail or Wall Mount - Multi-Gigabit - Auto-MDIX - 9K Jumbo (DS52000)

Description

2.5G switch | Multi-Gigabit | 5 port | Unmanaged | Cat5e/Cat6/Cat6a cabling | Wall mount kit | K-slot

The unmanaged network switch offers five multi-speed Ethernet ports (10/100/1000/2500 Mbps) in a compact and durable all-metal casing while remaining silent and energy-efficient (IEEE 802.3az). The network switch is the ideal solution to dramatically speed up your network to support 2.5GBASE-T, and being an unmanaged switch, you can set it up in no time.

Enhance your network

This network switch allows you to use existing Cat5e/Cat6/Cat6a cabling to increase the bandwidth to 2.5 Gbps, ideal for large file transfers, streaming, network sharing/storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility. You can also use it in combination with Wi-Fi 6 (802.11ax) wireless access points to expand your network range, bandwidth, and accessibility.

Secure and versatile

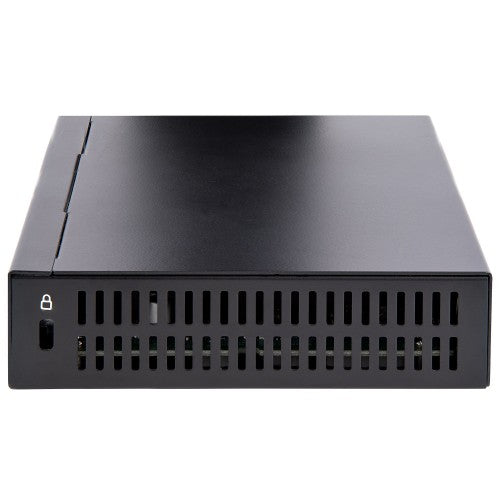

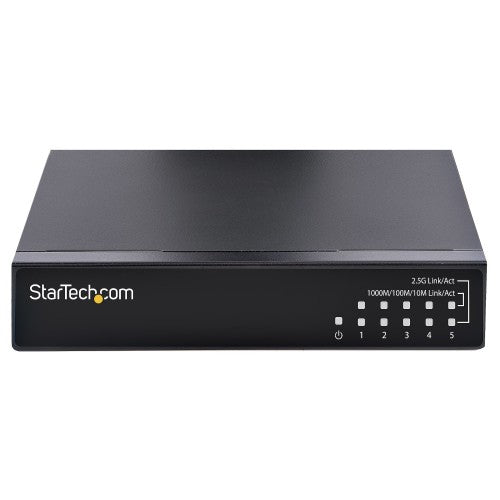

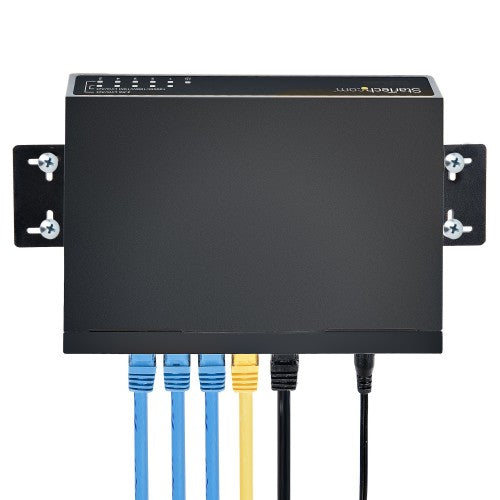

The 2.5G switch offers a security K-slot for more permanent and secure setups (cable not included). The unintrusive design and small dimensions (6.1x4.7x1.1 inch / 155x120x30 mm) make it easily adaptable to any deployment and has clear diagnostic LEDs that show the status of the devices at a glance. Additional features such as 9K jumbo frames, full-duplex, 16K MAC address table, QoS IEEE 802.1p, and wall mounting kit give you the flexibility to use it in a multitude of scenarios.

The DS52000 is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

Specifications

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 1000BASE-TX, 2500BASE-T
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Power connector	DC-in jack
2.5G Ethernet (copper) ports quantity	5
Power
Power connector	DC-in jack
Output current	1 A
Power supply included	Yes
AC input voltage	100 - 240 V
Output voltage	12 V
Power plug type	Type M
Input current	0.5 A
Power source	AC/DC
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Cable types supported	Cat5e, Cat6, Cat6a
Copper ethernet cabling technology	10BASE-T, 1000BASE-TX, 2500BASE-T
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Switching capacity	2.5 Gbit/s
Jumbo frames	9000
Store-and-forward	Yes
Jumbo frames support	Yes
Design
Rack mounting	No
Product colour	Black
Wall mountable	Yes
LED indicators	Yes
Housing material	Steel
Performance
Maximum cable length	3937" (100 m)
Harmonized System (HS) code	85176990
Technical details
Compliance certificates	CE, RoHS
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	4.72" (120 mm)
Depth	5.71" (145 mm)
Height	1.18" (30 mm)
Weight	21.2 oz (600 g)
Packaging data
Wall mounting kit	Yes
Quick start guide	Yes
AC adapter included	Yes
Package width	11.2" (285 mm)
Package depth	5.31" (135 mm)
Package height	2.76" (70 mm)
Package weight	24.7 oz (700 g)
Logistics data
Master (outer) case width	12" (305 mm)
Master (outer) case length	14.6" (370 mm)
Master (outer) case height	11.4" (290 mm)
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	85176990
Packaging content
Wall mounting kit	Yes
Quick start guide	Yes
AC adapter included	Yes
