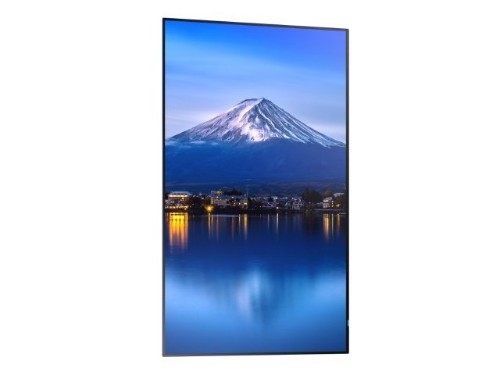

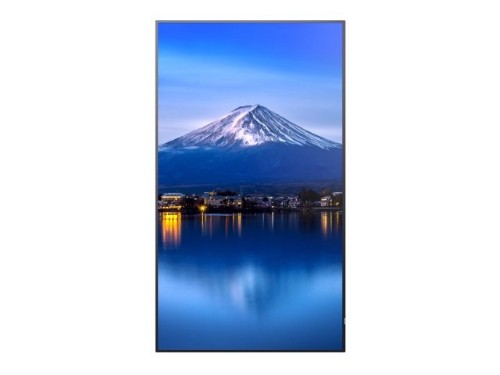

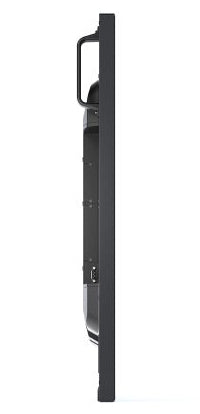

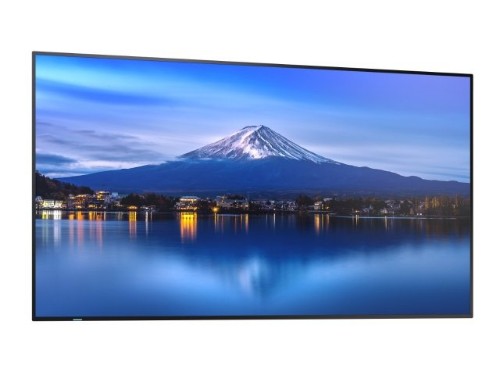

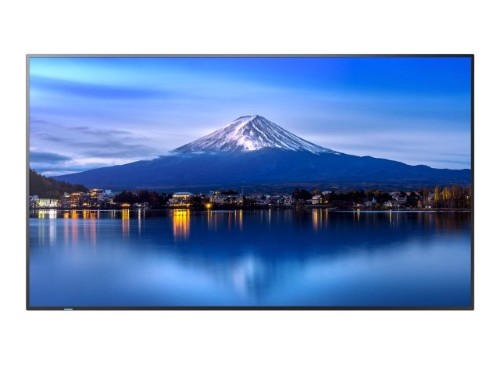

LCD 50" Professional Large Format Display, 3840 x 2160, 8000:1

Key Features

• Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
• Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
• Security assured – 802.2x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
• Mission-critical performance – with 700 cd/m² brightness, long-life components and robust flame-resistant metal chassis, the P6 series is engineered to deliver lasting clarity and durability in challenging environments without the need for bulky housings.
• Trusted integration – full compatibility with major AV ecosystems, including Crestron XiO Cloud and NVX, Q-Sys, Cisco Webex, Matrox IPMX, and CMS solutions, ensures seamless setup and scalability.

Description

Precision performance for critical applications

When reliability, security, and exceptional visual performance are mandatory, the Sharp MultiSync® P6 Series delivers with precision and resilience. Engineered for mission-critical applications and high-end signage, the P6 Series combines robust durability with advanced visual technologies to meet the most demanding commercial needs. With 700 cd/m² brightness, a high-haze panel, and SpectraViewTM Engine, it delivers outstanding image clarity and colour accuracy even in challenging lighting conditions. Despite its slim profile, the P6 Series is endorsed for use in heavy traffic spaces with a durable all-metal chassis that complies to the strictest fire safety standards.

Building on NEC’s trusted heritage, the next generation Sharp P6 Series is designed for longevity and integration flexibility. Its modular architecture supports custom computing options by Intel® SDM or Raspberry Pi, and flexible connectivity including AVoverIP for versatile deployments. Native video daisy chaining via HDMI and DisplayPort enables content to be easily cloned or expanded across multiple displays. Compatibility with leading platforms such as Crestron, Cisco Webex, and Q-Sys enhances its future-proof appeal, while 802.1x LAN support safeguards robust security against cyber threats. Purpose-designed for control rooms, passenger information, and prestige retail or corporate signage, the P6 Series delivers uncompromising performance, day after day.

Specifications

Display
LED backlight	Yes
Display diagonal	50"
Display resolution	3840 x 2160 pixels
Display brightness	700 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	8000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.0112 x 0.0112" (0.285 x 0.285 mm)
Active display area (W x H)	43.1 x 24.3" (1095.8 x 616.4 mm)
Display diagonal (metric)	49.6" (126 cm)
Vertical scan range	23 - 76 Hz
Touchscreen	No
Panel type	VA
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Horizontal scan range	15 - 135 kHz
Display technology	LCD
Native refresh rate	60 Hz
Haze rate	25%
Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	3
DVI port	No
USB connector type	USB Type-A, USB Type-C
USB port	Yes
Ethernet LAN (RJ-45) ports	2
RS-232C	Yes
DisplayPorts quantity	2
DisplayPorts out	1
DisplayPorts in	1
HDMI input ports quantity	2
HDMI output ports quantity	1
SDM module slot	Yes
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
VESA mounting	Yes
Panel mounting interface	300 x 300 mm
Placement supported	Indoor
Orientation	Horizontal/Vertical
Bezel width (top)	0.429" (1.09 cm)
Bezel width (side)	0.429" (1.09 cm)
Bezel width (bottom)	0.547" (1.39 cm)
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
HDCP	Yes
Ambient light sensor	Yes
HDCP version	2.2
Eco sensor	Yes
Power
Power consumption (typical)	95 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	85 kWh
Computer system
Computer system	Yes
Processor manufacturer	Intel
Built-in processor	Yes
Weight & dimensions
Display width	44.2" (1121.6 mm)
Display depth	2.62" (66.5 mm)
Display height	25.4" (645.2 mm)
Display weight	39.7 lbs (18 kg)
Packaging data
Package width	49" (1245 mm)
Package depth	7.4" (188 mm)
Package height	30.9" (785 mm)
Package weight	50.7 lbs (23 kg)
Remote control included	Yes
Mounting kit	Yes
Cables included	USB Type-C
Packaging content
Remote control included	Yes
Mounting kit	Yes
Cables included	USB Type-C
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 80%
Network
Ethernet LAN	Yes
Sensors
Ambient light sensor	Yes
Eco sensor	Yes
Temperature sensor	Yes
Technical details
USB connector type	USB Type-A, USB Type-C
Power supply type	Internal
Panel type	VA
LED backlighting type	Direct-LED
DisplayPorts out	1
DisplayPorts in	1
Ambient light sensor	Yes
Other features
USB connector type	USB Type-A, USB Type-C
Power supply type	Internal
Panel type	VA
DisplayPorts out	1
DisplayPorts in	1
Display technology	LCD
Bezel width (top)	0.429" (1.09 cm)
Bezel width (side)	0.429" (1.09 cm)
Bezel width (bottom)	0.547" (1.39 cm)
Energy efficiency scale	A to G
