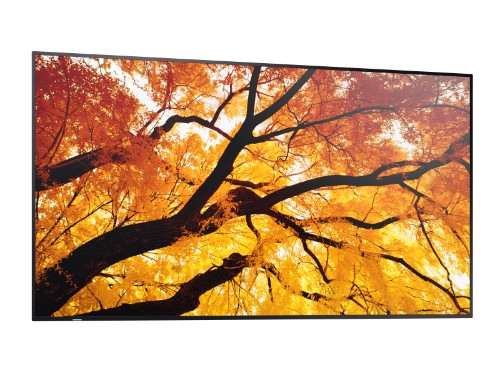

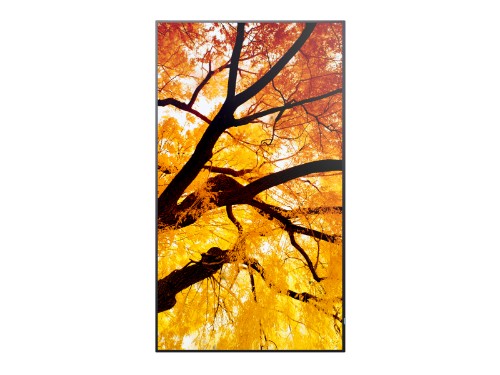

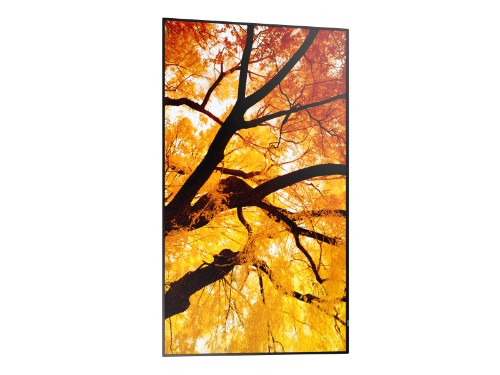

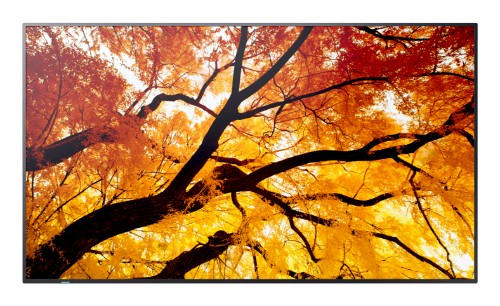

50", VA, D-LED, 3840 x 2160, 550 cd/m², 178°/178°, 1121.6 x 645.2 x 66.5 mm, 18 kg
Key Features
- Seamless meeting workflows – a single USB-C cable transmits video, data, and power for instant, clutter-free meeting setups. As the established standard for modern collaboration spaces, USB-C supports frictionless BYOD experiences.
- Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
- Security assured – 802.1x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
- Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
- Broad AV compatibility – fully interoperable with leading meeting room platforms including Crestron (XiO Cloud), Cisco Webex, Q-Sys, and Microsoft Teams, ensuring effortless integration and future-proof scalability.
Description
Built to perform, designed to lastThe versatile solution for professional display applications, the Sharp MultiSync® M2 Series (32" up to 98") is purpose-built for demanding signage and meeting room environments. With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security. Featuring class-leading 550 cd/m² brightness, a high-haze panel to minimise glare, and NEC’s trusted SpectraView Engine, the M2 Series delivers outstanding visual performance with unmatched colour precision.
As part of the new Sharp-branded display family, the MultiSync® M2 Series builds on NEC’s legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel® SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Display diagonal |
50" |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
550 cd/m² |
| HD type |
4K Ultra HD |
| Contrast ratio (typical) |
8000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.0112 x 0.0112" (0.285 x 0.285 mm) |
| Active display area (W x H) |
43.1 x 24.3" (1095.8 x 616.4 mm) |
| Display diagonal (metric) |
49.5" (125.7 cm) |
| Display number of colours |
1.073 billion colors |
| Touchscreen |
No |
| Panel type |
VA |
| Native aspect ratio |
16:9 |
| LED backlighting type |
Direct-LED |
| Display technology |
LCD |
| Maximum frame rate |
60 fps |
| Haze rate |
25% |
| RGB colour space |
NTSC |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| Ethernet LAN data rates |
10,100 Mbit/s |
| DVI port |
No |
| USB connector type |
USB Type-A, USB Type-C |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
4 |
| RS-232C |
Yes |
| DisplayPorts quantity |
2 |
| DisplayPorts out |
1 |
| DisplayPorts in |
1 |
| HDMI input ports quantity |
2 |
| HDMI output ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
65 W |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| VESA mounting |
Yes |
| Panel mounting interface |
300 x 300 mm |
| Bezel width (top) |
0.429" (1.09 cm) |
| Bezel width (side) |
0.429" (1.09 cm) |
| Bezel width (bottom) |
0.547" (1.39 cm) |
| Performance |
|---|
| Operating hours (hours/days) |
24/7 |
| International Protection (IP) code |
IP5X, IP2X |
| Power |
|---|
| Power consumption (typical) |
85 W |
| Power consumption (standby) |
2 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (off) |
0.5 W |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
G |
| Energy consumption (SDR) per 1000 hours |
81 kWh |
| Computer system |
|---|
| Computer system |
No |
| Built-in processor |
No |
| Weight & dimensions |
|---|
| Display width |
44.2" (1121.6 mm) |
| Display depth |
2.62" (66.5 mm) |
| Display height |
25.4" (645.2 mm) |
| Display weight |
39.7 lbs (18 kg) |
| Packaging data |
|---|
| Package width |
49" (1245 mm) |
| Package depth |
7.4" (188 mm) |
| Package height |
30.9" (785 mm) |
| Package weight |
50.7 lbs (23 kg) |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Packaging content |
|---|
| Remote control included |
Yes |
| Batteries included |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
20 - 80% |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Features |
|---|
| Base material |
Metal |
| Technical details |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| Panel type |
VA |
| LED backlighting type |
Direct-LED |
| DisplayPorts out |
1 |
| DisplayPorts in |
1 |
| Other features |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| Panel type |
VA |
| DisplayPorts out |
1 |
| DisplayPorts in |
1 |
| Display technology |
LCD |
| Bezel width (top) |
0.429" (1.09 cm) |
| Bezel width (side) |
0.429" (1.09 cm) |
| Bezel width (bottom) |
0.547" (1.39 cm) |
| Energy efficiency scale |
A to G |
