32", FHD (1920 x 1080), IPS, 400 nits, 8 ms, 1200:1, Bluetooth, WiFi, RS232, LAN, USB, HDMI, 8 GB, Tizen 7.0
Key Features
- Interactive Touch Panel
- Center IR
- Home UI
Description

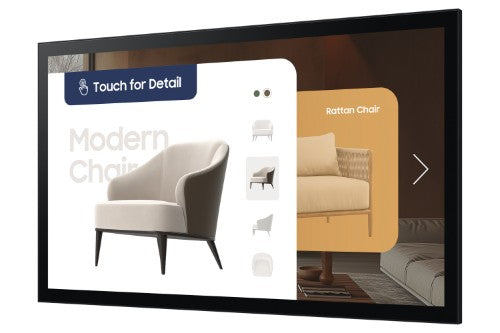

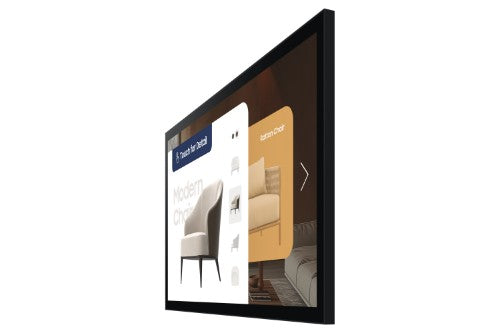

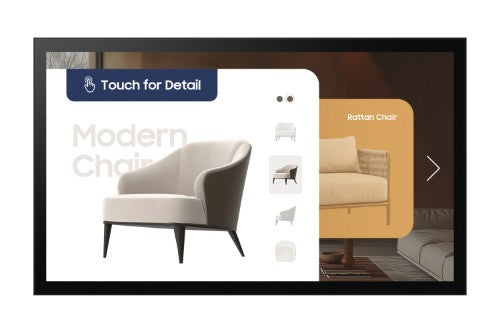

Compact display. Elevated by touchDesigned for tight business spaces, the 32-inch QM32C-T combines a space-efficient form with intuitive touch capability. Its responsive 10 point multi-touch panel helps enable easy interaction, making it ideal for customer-facing displays, wayfinding, and compact digital signage. Slim, stylish, and versatile—it fits wherever communication matters.
Interactive Touch PanelBuilt for compact business spaces, the QM32C-T combines responsive multi-touch with a slim design. Its intuitive touch function makes it easy to navigate menus, showcase products, and deliver interactive content. With support for up to 10 touch points, it’s ideal for environments where engaging, interactive experiences are needed in limited space.
Home UIThe Home UI brings commonly used settings and sources together in a single, easy-to-access screen. Whether adjusting display inputs or managing device settings, users can navigate key tools fast—without digging through multiple menus.
Center IRWith center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.
Samsung VXTThe cloud-based Samsung VXT brings together content management and remote device management capabilities. Remotely manage hardware settings and troubleshoot issues while creating and deploying content effortlessly with no previous training needed.
SmartThings ProSmartThings Pro brings connectivity into Samsung signage, helping to enable seamless integration with other smart devices across business environments. From lighting and appliances to building systems, signage becomes part of a connected ecosystem—controlled, monitored, and automated through a single platform.
NERGY STAR / EPEAT SilverThe QM32C-T series is ENERGY STAR®* (version 8.0) certified for its energy-efficiency, and is also EPEAT®** Silver-registered for meeting all of the EPEAT required criteria and at least 50% of the optional criteria.
Specifications
| Display |
|---|
| Display diagonal |
32" |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
400 cd/m² |
| HD type |
Full HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.0143 x 0.0143" (0.364 x 0.364 mm) |
| Dynamic contrast ratio marketing name |
Mega Contrast |
| Vertical scan range |
48 - 75 Hz |
| Touchscreen |
Yes |
| Panel type |
VA |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
30 - 81 kHz |
| Display technology |
LCD |
| Touchscreen technology |
Capacitive |
| Colour saturation |
72% |
| Haze rate |
2% |
| Pixel frequency (max) |
148.5 MHz |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| HDMI version |
1.4 |
| DVI port |
No |
| Remote (IR) input |
1 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Wi-Fi |
Yes |
| USB ports quantity |
2 |
| DisplayPorts quantity |
0 |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Design |
|---|
| Product design |
Interactive flat panel |
| Product colour |
Black |
| VESA mounting |
Yes |
| Panel mounting interface |
200 x 200 mm |
| Placement supported |
Indoor |
| Performance |
|---|
| Purpose |
Universal |
| Operating hours (hours/days) |
16/7 |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Computer system |
|---|
| Operating system installed |
Tizen 7.0 |
| Internal storage capacity |
8 GB |
| Weight & dimensions |
|---|
| Display width |
29.3" (744.4 mm) |
| Display depth |
1.9" (48.2 mm) |
| Display height |
17.5" (444.6 mm) |
| Display weight |
18.3 lbs (8.3 kg) |
| Packaging data |
|---|
| Package width |
34.3" (872 mm) |
| Package depth |
22.2" (565 mm) |
| Package height |
5.24" (133 mm) |
| Package weight |
23.1 lbs (10.5 kg) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Thin Client |
|---|
| Operating system installed |
Tizen 7.0 |
| Internal storage capacity |
8 GB |
| Technical details |
|---|
| RS-232 output ports |
1 |
| RS-232 input ports |
1 |
| Panel type |
VA |
| Compliance certificates |
Electromagnetic Compatibility (EMC) |
| Other features |
|---|
| Wi-Fi |
Yes |
| RS-232 output ports |
1 |
| RS-232 input ports |
1 |
| Panel type |
VA |
| Display technology |
LCD |
| Bluetooth |
Yes |
| Audio output |
1 |
