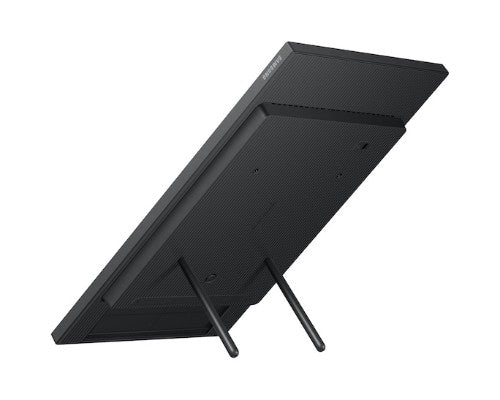

13" Signage Display QBC Series, 1.920 x 1.080, 322 x 193.5 x 19.9 mm, 0.8 kg

Key Features

• Compact 13" Size & Slim Design
• Home UI
• Dual Wi-Fi (2.4GHz + 5GHz)

Description

Effective display for compact places
The newly refined QB13C delivers a slim, space-efficient design with a 13-inch display that integrates seamlessly into diverse business settings. Its intuitive usability, reliable performance and easy management brings the essentials of business signage into compact spaces.

Smaller and slimmer, greater flexibility
Compact 13" Size & Slim Design
Slimmer than ever at 19.9mm, the 13-inch compact display fits flawlessly in tight spaces, perfect for maximizing visibility without hindering performance. Its smaller design packs the same reliable performance businesses demand, making it a smart choice for any space.

Intuitive accessibility meets effortless usability
Home UI
The QB13C features Home UI upgrades for faster, more intuitive control. Key tools such as Features, Sources, and settings are grouped for quicker access, while the Favorites folder brings you to frequently used tools in one click.

Faster, smoother wireless performance
Dual Wi-Fi (2.4GHz + 5GHz)
QB13C now supports dual-band Wi-Fi with both 2.4GHz and 5GHz frequencies, enabling faster network connections and higher data transmission speeds—especially in high-traffic areas.

Empower your business with smart control
SmartThings Pro
Samsung SmartThings now extends beyond the home with SmartThings Pro for business environments. Businesses, from small shops to large companies and hotels, can experience enhanced convenience, safety, and energy efficiency with SmartThings Pro connectivity.

Change the way to manage your display
Samsung VXT
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.

Specifications

Display
Display diagonal	13"
Display resolution	1920 x 1080 pixels
Display brightness	500 cd/m²
HD type	Full HD
Response time	30 ms
Contrast ratio (typical)	800:1
Contrast ratio (dynamic)	10000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.00602 x 0.00602" (0.153 x 0.153 mm)
Vertical scan range	48 - 75 Hz
Touchscreen	No
Panel type	ADS
Horizontal scan range	56 - 84.5 kHz
Display technology	LED
Colour saturation	45%
Pixel frequency (max)	148.5 MHz
Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	1.4
USB port	Yes
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	Yes
USB ports quantity	1
PC Audio out	Yes
Design
Product design	Digital A-board
Product colour	Black
VESA mounting	Yes
Placement supported	Indoor
Screen shape	Flat
Performance
Purpose	Universal
Operating hours (hours/days)	16/7
Wi-Fi	Yes
Power
Power consumption (typical)	35 W
Power consumption (standby)	0.5 W
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Computer system
Operating system installed	Android
Operating system version	Tizen 7.0
Weight & dimensions
Display width	12.7" (322 mm)
Display depth	0.783" (19.9 mm)
Display height	7.62" (193.5 mm)
Display weight	28.2 oz (800 g)
Packaging data
Package width	20.5" (520 mm)
Package depth	9.37" (238 mm)
Package height	2.52" (64 mm)
Package weight	3.53 lbs (1.6 kg)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Thin Client
Operating system installed	Android
Technical details
Panel type	ADS
Other features
Wi-Fi	Yes
PC Audio out	Yes
Panel type	ADS
Display technology	LED
