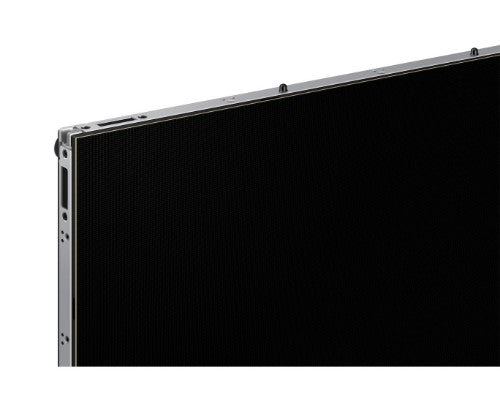

The Wall M All-in-One, 1.25 mm Pixel Pitch, 600 nit, 480 x 270, Flip-chip RGB LED, 3840 Hz

Description

Uncompromised visuals, now more accessible
The Wall is a pioneer, constantly opening new ways for unmatched visual statements. Leveraging Samsung’s rich R&D heritage, it offers a true all-in-one solution while maintaining its signature picture quality. Discover The Wall M, now all-in-one, designed to revolutionize the way you do business.

True black presentation
Samsung's The Wall M series displays offer impeccable black levels with enhanced detail. A pristine black canvas immerses you into a new dimension of experience.

Unleashing the power of HDR
Go beyond the limits of conventional screens and discover the true beauty of visuals. With HDR10/10+ picture refinement technology, The Wall M series optimizes brightness and contrast ratios, illuminating each scene to perfection.

Quick install. Big impact.
With Quick Build structure, The Wall M All-in-One offers a drastically simplified installation unlike anything seen before. Dock the two background plates and hang just four preset modules, and that’s it. In just two hours you will have a giant 136-inch screen to transform your spa

Auto configuration setup
Time-consuming configuration between control box and cabinet is no longer needed. Samsung's The Wall M All-in-One integrates the control box so it’s built-into the display, eliminating a cumbersome configuration process to get the display up and running faster.

No extra peripherals needed
The Wall M All-in-One includes everything you need to begin operations - from the control box and wall brackets to speakers and décor bezels. No additional purchases or components are required.

Bring content to a bigger screen
Expand your vision on a bigger scale. Samsung’s The Wall M All-in-One allows users to combine multiple displays side by side for simultaneous use, unlocking new possibilities for large meeting spaces. All displays are controlled with a single IR remote, enhancing operational convenience.

Empower your business with smart control
Samsung SmartThings goes beyond the home, seamlessly integrating into business environments. The system automatically powers down unused devices and adjusts the air conditioning to optimize energy efficiency.

Certified eye comfort for optimal viewing
The Wall M series is TUV Rheinland Eye Comfort certified, reducing blue light and flicker to minimize potential risks that could cause eye strain and ensure a more comfortable viewing experience.

Delivering efficiency and sustainability on standby
When the connected S-Box or input signal is turned off, The Wall M series displays automatically enter stand-by mode. During stand-by mode, power consumption drops to less than 0.5W, improving operational efficiency and sustainability.

Specifications

Display
Display technology	LED
Display resolution	480 x 270 pixels
Pixel pitch	0.0492 x 0.0492" (1.25 x 1.25 mm)
Display brightness	600 cd/m²
Native refresh rate	3840 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus)
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
LED backlight	Yes
Display refresh rates supported	50 Hz, 60 Hz, 3840 Hz
Colour temperature	6500 K
Diode type	Flip-chip RGB LED
Design
Placement supported	Indoor
Orientation	Horizontal/Vertical
Easily replaceable modular parts	Yes
Product colour	Black
Power
Power consumption (max)	458.1 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Technical details
Compliance certificates	Electromagnetic Compatibility (EMC), TÜV mark
Operational conditions
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Sustainability
Certification	62368-1. 60950-1
