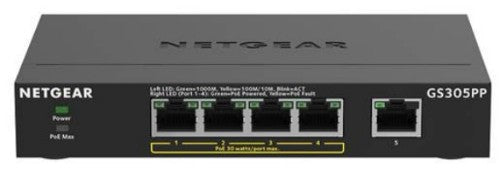

5-Port Gigabit Ethernet, 4 PoE Ports, 10 Gbps, 128 KB, 83 W, Desktop, Metal, North America
Key Features
- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- 802.1p QoS for traffic/frame prioritization
- Plug-and-play; no setup required
- Durable and rugged metal case
- Desktop or wall-mountable; GS324 is also rack-mountable (rack-mount kit included)
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standardsbased devices in the existing network
- Power up to 4 PoE-capable devices (GS305P/GS305PP and GS308P only)
- 802.3af Power Over Ethernet (PoE) for IP cameras, VoIP/Internet-based phones, wireless access points (GS308P only)
Description
Expanding Wired Connectivity for SOHO NetworksNETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
Specifications
| Management features |
|---|
| Switch type |
Unmanaged |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Gigabit Ethernet (copper) ports quantity |
5 |
| Power connector |
DC-in jack |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Network |
|---|
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Cable length detection |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Data transmission |
|---|
| MAC address table |
2000 entries |
| Switching capacity |
10 Gbit/s |
| Packet forwarding rate (1 Gbps) |
1448000 pps |
| Jumbo frames |
9216 |
| Latency (1 Gbps) |
2.4 µs |
| Jumbo frames support |
Yes |
| Packet buffer memory |
128 MB |
| Static route |
Yes |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
Black |
| Reset button |
Yes |
| Wall mountable |
Yes |
| LED indicators |
Activity, Link, PoE, Power |
| Housing material |
Metal |
| Power |
|---|
| Power consumption (typical) |
2.89 W |
| Power consumption (max) |
88.89 W |
| Input current |
1.66 A |
| DC input voltage |
54 V |
| Power connector |
DC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
4 |
| Total Power over Ethernet (PoE) budget |
83 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Heat dissipation |
304 BTU/h |
| Weight & dimensions |
|---|
| Width |
6.22" (158 mm) |
| Depth |
3.98" (101 mm) |
| Height |
1.14" (29 mm) |
| Weight |
14.5 oz (410 g) |
| Packaging content |
|---|
| Manual |
Yes |
| Packaging data |
|---|
| Package width |
8.46" (215 mm) |
| Package depth |
10.6" (269 mm) |
| Package height |
2.87" (73 mm) |
| Package weight |
2.8 lbs (1.27 kg) |
| Manual |
Yes |
| Performance |
|---|
| Packet buffer memory |
128 MB |
| Auto-negotiation |
Yes |
| Harmonized System (HS) code |
85176990 |
| Technical details |
|---|
| Shipping (inner) case width |
18.5" (46.9 cm) |
| Shipping (inner) case net weight |
18.4 lbs (8.34 kg) |
| Shipping (inner) case length |
9.33" (23.7 cm) |
| Shipping (inner) case height |
12" (30.6 cm) |
| Products per shipping (inner) case |
6 pc(s) |
| Layers per pallet (sea) |
6 pc(s) |
| Layers per pallet (air) |
4 pc(s) |
| Master (outer) cases per pallet layer |
10 pc(s) |
| Logistics data |
|---|
| Master (outer) case width |
9.33" (237 mm) |
| Master (outer) case length |
18.5" (469 mm) |
| Master (outer) case height |
12" (306 mm) |
| Master (outer) case gross weight |
18.3 lbs (8.31 kg) |
| Products per master (outer) case |
6 pc(s) |
| Harmonized System (HS) code |
85176990 |
