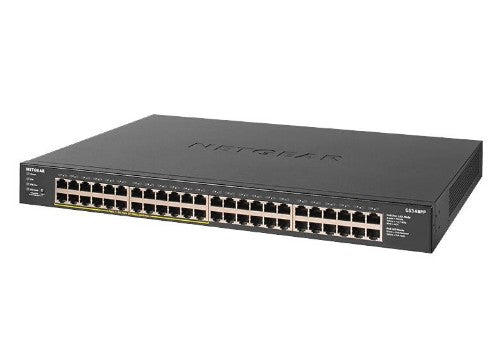

SOHO Ethernet Unmanaged (GS348PP) 48-Port Gigabit Ethernet Unmanaged PoE+ Switch (380W)

Key Features

• ETHERNET PORT CONFIGURATION: 48 Gigabit ports
• POWER-OVER-ETHERNET: 24 PoE+ ports with 380W total power budget to power wireless AP, IP Cameras, IP Phones and much more
• PLUG-AND-PLAY: Simple set up with no software to install or configuration needed
• VERSATILE MOUNTING OPTIONS: Supports desktop, or rackmount placement, and includes all the necessary mounting hardware in the box
• PoE POWER AUTO-BALANCE AND ALLOCATION - NETGEAR’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs
• QUIET OPERATION: Ideal for noise-sensitive environments
• ENERGY EFFICIENT: Designed to optimize power usage lowering its cost to operate. Compliant with IEEE802.3az Energy Efficient Ethernet mode
• BUILT TO LAST: Every NETGEAR Network switch is rigorously tested for reliability, quality, and performance

Description

NETGEAR SOHO Ethernet Unmanaged Switches
SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, and more. With these Plug and Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 to 48 ports, these switches also support energy saving technologies to help you save your power and money.

Extended Features

- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
- Fanless design for silent opeartion
- Desktop, wall-mountable or rack-mountable (GS324, GS348)

Specifications

Performance
Packet buffer memory	1.5 MB
Auto-negotiation	Yes
Mean time between failures (MTBF)	570972 h
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
Full duplex	Yes
Cable length detection	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
MAC address table	8000 entries
Switching capacity	96 Gbit/s
Packet forwarding rate (1 Gbps)	1448000 pps
Jumbo frames	12288
Latency (1 Gbps)	4 µs
Jumbo frames support	Yes
Packet buffer memory	1.5 MB
Design
Rack mounting	Yes
Product colour	Black
LED indicators	Activity, Link, PoE, Power, Speed
Housing material	Metal
Certification	CE, FCC 15 A, IC A, RCM, VCCI, KC CB, CE LVD, UL
Number of fans	2 fan(s)
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	410 W
Power source	PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet (PoE) ports quantity	24
Total Power over Ethernet (PoE) budget	380 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Heat dissipation	1402.2 BTU/h
Weight & dimensions
Width	17.3" (440 mm)
Depth	12.2" (310 mm)
Height	1.69" (43 mm)
Weight	10.1 lbs (4.56 kg)
Packaging data
Package type	Box
Rack mount kit	Yes
User guide	Yes
Cables included	AC
Packaging content
Rack mount kit	Yes
User guide	Yes
Cables included	AC
