86" Ultra Stretch Signage IPS 3840×600 500 nit, HDMI DP USB Audio DVI-D RS232C RJ45 IR, Wi-Fi, Internal Memory 8GB, webOS 4.0, 24 / 7
Key Features
- Brightness(Typ.) : 500 cd/m²
- Aspect Ratio: 58:9
- Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
- Depth: 81.7mm

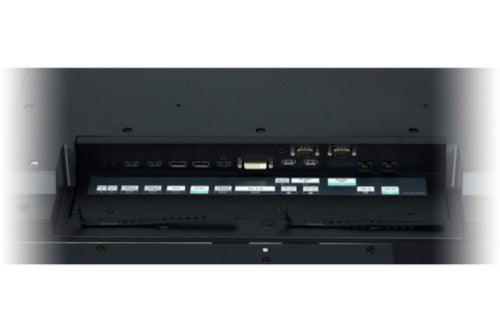

- Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR
Description
58:9 Space-Fitting Wide ScreenThe 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.
58:9 Extended Wide FormatIt is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.
Ultra HD Resolution (3,840 x 600)Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
Multi Screen Mode with 4PBPThe Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive ViewThe 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.
IP5x Certified DesignThe IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
User-Friendly UXThe 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.
LAN Daisy Chain ManagementBy using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with LG ConnectedCareEasier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
Specifications
| Display |
|---|
| LED backlight |
No |
| Display diagonal |
86" |
| Display resolution |
3840 x 600 pixels |
| Display brightness |
500 cd/m² |
| HD type |
Not supported |
| Response time |
8 ms |
| Contrast ratio (typical) |
1100:1 |
| Contrast ratio (dynamic) |
500000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
1.07 billion colors |
| Touchscreen |
No |
| Panel type |
IPS |
| Display technology |
LCD |
| Haze rate |
3% |
| RGB colour space |
NTSC |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| HDMI version |
2.2 |
| DVI port |
Yes |
| DVI-D ports quantity |
1 |
| VGA (D-Sub) input ports |
0 |
| Remote (IR) input |
1 |
| USB port |
Yes |
| Audio (L/R) in |
1 |
| Audio (L/R) out |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Wi-Fi |
Yes |
| USB version |
2.0 |
| USB ports quantity |
2 |
| RS-232C |
Yes |
| Mini DisplayPorts quantity |
0 |
| DisplayPorts quantity |
2 |
| DisplayPorts out |
1 |
| DisplayPorts in |
1 |
| USB 2.0 Type-B ports quantity |
0 |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| VESA mounting |
Yes |
| Panel mounting interface |
600 x 200 mm |
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
0.232" (5.9 mm) |
| Bezel width (side) |
0.173" (4.4 mm) |
| Bezel width (bottom) |
0.232" (5.9 mm) |
| Screen shape |
Flat |
| Performance |
|---|
| Purpose |
Retail |
| Operating hours (hours/days) |
24/7 |
| Digital signal format system |
Not supported |
| On Screen Display (OSD) |
No |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (typical) |
220 W |
| Heat dissipation |
751 BTU/h |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
G |
| Energy consumption (SDR) per 1000 hours |
143 kWh |
| Computer system |
|---|
| Operating system installed |
WebOS |
| Computer system |
Yes |
| Internal memory |
8 GB |
| Weight & dimensions |
|---|
| Width |
85" (2158.3 mm) |
| Depth |
3.22" (81.7 mm) |
| Height |
13.7" (348.5 mm) |
| Weight |
45.2 lbs (20.5 kg) |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
AC, DisplayPort, IR, IR sensor |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Thin Client |
|---|
| Operating system installed |
WebOS |
| Internal memory |
8 GB |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
| Packaging data |
|---|
| Remote control included |
Yes |
| Cables included |
AC, DisplayPort, IR, IR sensor |
| Features |
|---|
| Harmonized System (HS) code |
85285210 |
| Technical details |
|---|
| Panel type |
IPS |
| DisplayPorts out |
1 |
| DisplayPorts in |
1 |
| Special features |
CB, NRTL, FCC Class "A", CE, KC, |
| Sustainability certificates |
ErP |
| Warranty period |
2 year(s) |
| Other features |
|---|
| Wi-Fi |
Yes |
| Panel type |
IPS |
| Mini DisplayPorts quantity |
0 |
| Height adjustment |
No |
| DisplayPorts out |
1 |
| DisplayPorts in |
1 |
| Display technology |
LCD |
| Built-in microphone |
No |
| Built-in camera |
No |
| Bezel width (top) |
0.232" (5.9 mm) |
| Bezel width (side) |
0.173" (4.4 mm) |
| Bezel width (bottom) |
0.232" (5.9 mm) |
| Energy efficiency scale |
A to G |
