HP Series 5 Pro 14 inch WQXGA Portable Monitor - 514pn, 14", 2560 x 1600 pixels, WQXGA, LCD, 7 ms, Silver
Key Features
- Carry true portable dual-screen productivity anywhere with this portable 14” display delivering WQXGA resolution and a 16:10 aspect ratio to match your notebook.
- Bring content to life wherever you are with IPS Black with Neo:LED panel technology, delivering striking color, brightness, and clarity.[2]
- Exercise versatility with an ultra-thin portable monitor with built-in stand that adapts to landscape or portrait, protected by a magnetic hard screen cover.
- Thoughtfully designed with at least 90% recycled plastic content in the monitor's enclosure, 20% recycled glass in the monitor panel, and 55% recycled aluminum.[3]
Reasons To Buy
Seamless Color Consistency Without Compromise
IPS Black with Neo:LED panel technology offers wide color coverage with 100% Adobe RGB, and 100% Display P3.
[2]Deeper Blacks, Vibrant Whites
With a wide contrast ratio, enjoy true blacks that add depth to shadows and dimly lit scenes for clear detail in every photo, movie, or video game.
[2]WQXGA Resolution
Crisp, clear visuals for smoother images with 2560 x 1600 WXQGA resolution and perfect 16:10 aspect ratio to match your notebook on this 14” portable display.
[2]See Your Work in Any Light
With 400 nits of brightness, view beautiful details, enhanced image quality, and distinct shades of color in any environment.
[2]75 Hz Refresh Rate
Smoothly transition across projects from anywhere with this 14” portable display using a 75 Hz refresh rate capable of clearer, high-resolution details.
[2]Progressive White Balance
Work better with content that looks the same on both screens. Progressive White Balance is an HP technology that provides consistent white-point matching from screen-to-screen.

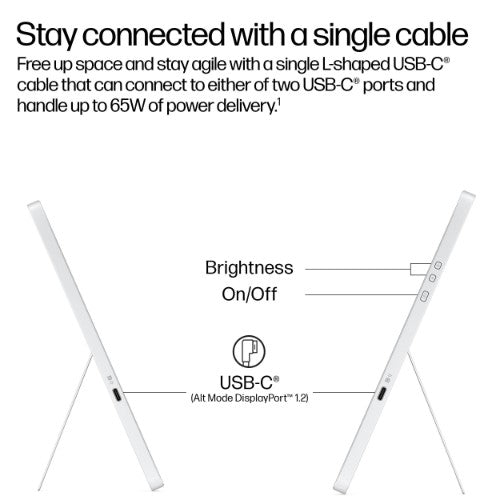

[10]Stay Connected with a Single Cable
Free up space and stay agile with a single L-shaped USB-C cable that can connect to either of two USB-C ports and handle up to 65W of power delivery.
[1]Thin, Light Design with Hard Cover Protection
Easily bring your work setup anywhere with a thin, lightweight portable monitor protected with a durable magnetic hard screen cover that doubles as a mousepad.

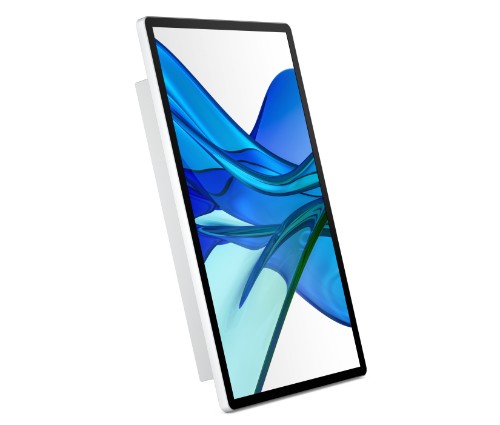

A Versatile Stand that Supports Flexibility
Choose the angle that best supports your workflow with a versatile mode and adjustable kickstand. Easily pivot or use in landscape.
Improved Visual Comfort
Protect your eyes with a monitor that meets the TUV Rheinland Eye Comfort 3.0 - 3 star criteria with HP Eye Ease low blue light filter, 75 Hz refresh rate, wide color coverage and flicker free.
[2,5]HP Display Center
Customize your monitor with the intuitive HP Display Center that lets you tailor your settings, partition screens, and more—all through the host PC.
[6]Remote Management Reimagined
The powerful HP Client Management Script Library (CMSL) works seamlessly with Intune/SCCM to make managing your fleet remotely easy using PowerShell.
[7]Made with Materials that Matter
Designed with at least 90% recycled plastic content in the enclosure, 20% recycled glass in the monitor panel, and 55% recycled aluminum.
[3]Thoughtful Product Packaging
100% of the paper-based packaging is sustainably sourced or recycled.
[4]Increased Energy Efficiency
To help protect our shared future, this monitor is held to the highest energy saving standard with an ENERGY STAR rating and EPEAT Gold Registration.
[8]Works on Mac® or PC
Verified with devices running across OS, this monitor works with Mac® or PC devices.

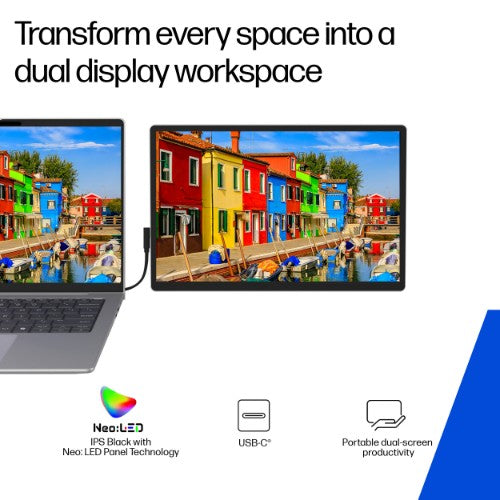

[9]Portable dual-screen productivity powered by one cable
Carry your office space everywhere. See more and do more on the go with a 14” WQXGA 16:10 display that connects to your notebook via a single USB-C cable delivering up to 65W
[1] of power for dual-screen productivity anywhere.

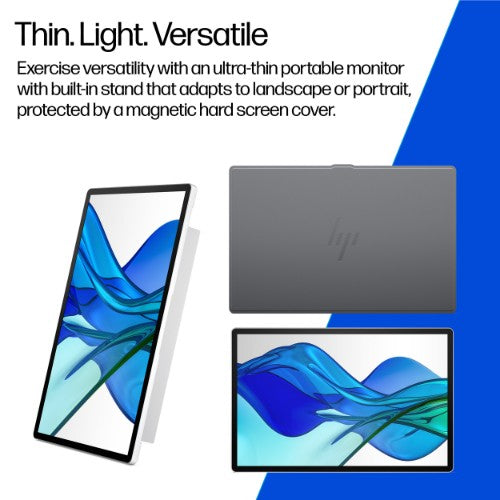

Thin, light, and versatile enough to take wherever work takes you
Exercise versatility in any space with an ultra-thin, lightweight portable monitor you can easily add to your bag with a durable magnetic hard screen cover that doubles as a mousepad. The built-in kick-stand adapts to landscape or portrait to fit your workflow.
Description
HP Series 5 Pro 14 inch WQXGA Portable Monitor - 514pn. Display diagonal: 14", Display resolution: 2560 x 1600 pixels, HD type: WQXGA, Display technology: LCD, Display surface: Matt, Response time: 7 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Product color: Silver
Specifications
| Display |
|---|
| HDCP |
Yes |
| Display brightness (typical) |
400 cd/m² |
| Display diagonal |
14" |
| Response time |
7 ms |
| Display resolution |
2560 x 1600 pixels |
| Display technology |
LCD |
| Screen shape |
Flat |
| Display number of colours |
16.7 million colors |
| Native aspect ratio |
16:10 |
| Maximum refresh rate |
75 Hz |
| sRGB coverage (typical) |
100% |
| Contrast ratio (typical) |
2000:1 |
| Contrast ratio (dynamic) |
10000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.00464 x 0.00464" (0.118 x 0.118 mm) |
| Horizontal scan range |
31 - 124 kHz |
| Vertical scan range |
50 - 75 Hz |
| Aspect ratio |
16:10 |
| Viewable size, horizontal |
11.9" (30.1 cm) |
| Viewable size, vertical |
7.4" (18.8 cm) |
| HD type |
WQXGA |
| Supported graphics resolutions |
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA) |
| Pixel density |
216 ppi |
| Display surface |
Matt |
| Colour gamut |
100% |
| Backlight type |
Edge LED |
| Surface hardness |
3H |
| Touchscreen |
No |
| Display bezel technology |
Narrow Border |
| Panel type |
IPS Black |
| Colour depth |
8 bit |
| Display diagonal (metric) |
14" (35.6 cm) |
| Haze rate |
25% |
| LED backlight |
Yes |
| Display brightness |
400 cd/m² |
| Colour gamut standard |
sRGB |
| Response time measurement type |
GTG (Gray to Gray) |
| Anti-glare screen |
Yes |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| HP segment |
Business |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| Fast charging |
Yes |
| Multimedia |
|---|
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| Design |
|---|
| Market positioning |
Business |
| Product colour |
Silver |
| Feet colour |
Silver |
| Country of origin |
China, Vietnam |
| Colour name |
Silver |
| Ports & interfaces |
|---|
| USB Type-C downstream ports quantity |
2 |
| HDCP |
Yes |
| Headphone out |
No |
| HDMI |
No |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
65 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Ergonomics |
|---|
| Cable lock slot |
No |
| VESA mounting |
No |
| Tilt angle range |
18.8 - 46.2° |
| Height adjustment |
No |
| On Screen Display (OSD) |
Yes |
| Tilt adjustment |
Yes |
| Power |
|---|
| Power consumption (max) |
13 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
7 W |
| Power consumption (off) |
0.3 W |
| Power supply type |
External |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
B |
| Energy efficiency class (HDR) |
B |
| Energy consumption (SDR) per 1000 hours |
5.6 kWh |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
20 - 80% |
| Operating altitude |
0 - 196850.4" (0 - 5000 m) |
| Non-operating altitude |
0 - 480000" (0 - 12192 m) |

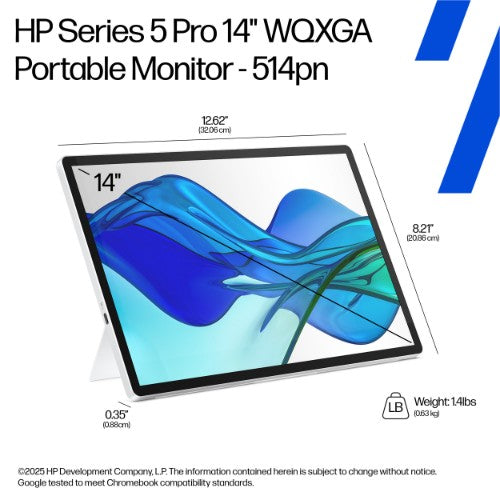

| Weight & dimensions |
|---|
| Width (with stand) |
12.6" (320.6 mm) |
| Depth (with stand) |
0.346" (8.8 mm) |
| Height (with stand) |
8.21" (208.6 mm) |
| Weight (with stand) |
22.2 oz (630 g) |
| Package width |
15.7" (398 mm) |
| Package depth |
2.36" (60 mm) |
| Package height |
10.9" (278 mm) |
| Package weight |
2.8 lbs (1.27 kg) |
| Weight |
22.2 oz (630 g) |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
15.7" (398 mm) |
| Package depth |
2.36" (60 mm) |
| Package height |
10.9" (278 mm) |
| Package weight |
2.8 lbs (1.27 kg) |
| Warranty card |
Yes |
| Stand included |
Yes |
| Quick start guide |
Yes |
| Cables included |
USB Type-C to USB Type-C |
| Bundled software |
HP Display Center; HP Client Management Script Library |
| Packaging content |
|---|
| Stand included |
Yes |
| Quick start guide |
Yes |
| Cables included |
USB Type-C to USB Type-C |
| Bundled software |
HP Display Center; HP Client Management Script Library |
| Sustainability |
|---|
| Total carbon footprint (kg of CO2e) |
220 |
| Sustainable technologies and materials |
At least 55% recycled aluminum; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; Molded paper pulp cushion inside box is made of 100% recycled or certified sources; Outside box and corrugated cushions are 100% from certified or recycled sources and recyclable; At least 90% post-consumer recycled plastic; Low halogen |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, EPEAT, EPEAT Climate + |
| Carbon footprint |
|---|
| Total carbon footprint (kg of CO2e) |
220 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
62 |
| Carbon emissions, manufacturing (kg of CO2e) |
156 |
| Carbon emissions, logistics (kg of CO2e) |
2 |
| Carbon emissions, end-of-life (kg of CO2e) |
2 |
| Technical details |
|---|
| Sustainable technologies and materials |
At least 55% recycled aluminum; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; Molded paper pulp cushion inside box is made of 100% recycled or certified sources; Outside box and corrugated cushions are 100% from certified or recycled sources and recyclable; At least 90% post-consumer recycled plastic; Low halogen |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, EPEAT, EPEAT Climate + |
| Compliance certificates |
CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI |
| Power supply type |
External |
| Country of origin |
China, Vietnam |
| Weight (with stand) |
22.2 oz (630 g) |
| Surface hardness |
3H |
| Touchscreen |
No |
| Features |
|---|
| Country of origin |
China, Vietnam |
| Other features |
|---|
| Country of origin |
China, Vietnam |
| UNSPSC-code |
43211902 |
| Weight |
22.2 oz (630 g) |
| Compliance certificates |
CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI |
| Manufacturer warranty |
HP three-year limited warranty |
| Power consumption (max) |
13 W |
| Quick start guide |
Yes |
| HDMI |
No |
| Surface hardness |
3H |
| USB Power Delivery up to |
65 W |
| Energy efficiency scale |
A to G |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Power supply type |
External |
| Touchscreen |
No |
| USB Power Delivery (USB PD) |
Yes |
| Package type |
Box |
| Logistics data |
|---|
| Total carbon footprint (kg of CO2e) |
220 |
