6000-Lumen Short Throw WUXGA 3LCD Laser Projector
Key Features
- 6,200 lumens color/white brightness
- WUXGA for clear, detailed images
- 0.79 – 1.36 throw, 1.7x zoom, up to 400" display
- Lightweight, compact design allows for easy installation
- 30,000-hr laser light source & filter
Description
This incredibly compact projector delivers larger-than-life images with a short 0.79 – 1.36 throw ratio.Experience the extraordinary versatility and performance of our bright and compact PowerLite® L-Series. Expanding on the possibilities of this powerful projector lineup, the PowerLite L690SU features an expansive 0.79 – 1.36 throw ratio and a large display up to 400''. With wide vertical and horizontal lens shifts and 1.7x optical zoom, the projector is ideal for a wide variety of applications, such as conference rooms, hybrid workspaces, golf simulation, museum exhibitions and more. Deliver bright images in rooms with high-ambient light with 6,200 lumens of equal color and white brightness1 and Full HD WUXGA resolution.

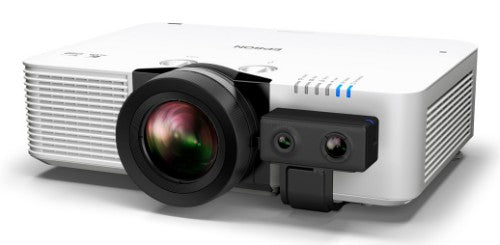

Simple to install, the PowerLite L690SU is easy to operate from start to finish. Built-in NFC functionality2, wide lens shift, 360-degree mounting, geometric correction tools and more allow for simple, seamless integration. Created with convenience in mind, the projector features an up to 30,000-hour virtually maintenance-free laser light source and air filter3 in Extended Mode. With built-in wireless communication, you can monitor and control your fleet remotely from a web browser using the Epson Projector Management Connected app, as well as enable advanced screen casting tools like Epson iProjection™4, Apple® AirPlay®5 and Miracast®4. In addition, simplify complex multi-projector applications with the optional attachable PixAlign™ camera.
Epson’s PowerLite L-Series offers a range of solutions to meet virtually any application. This lineup also features additional short throw options, including the PowerLite L690SE, designed for an even shorter 0.5 – 0.7 throw ratio.
Specifications
| Projector |
|---|
| Projector brightness |
6200 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WUXGA (1920x1200) |
| Screen size compatibility |
60 - 400" |
| Native aspect ratio |
16:10 |
| Supported aspect ratios |
16:10, 16:6, 21:9 |
| Projection distance |
40.2 - 468.1" (1.02 - 11.9 m) |
| Projection distance (wide) |
39.4 - 275.6" (1 - 7 m) |
| Projection distance (tele) |
70.9 - 468.5" (1.8 - 11.9 m) |
| Contrast ratio (typical) |
5000000:1 |
| Number of colours |
1.07 billion colors |
| Projector brightness (economic mode) |
4340 ANSI lumens |
| Keystone correction, vertical |
-30 - 30° |
| Keystone correction, horizontal |
-30 - 30° |
| Light source |
|---|
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
| Lens system |
|---|
| Zoom ratio |
1.2:1 |
| Zoom capability |
Yes |
| Focus |
Manual |
| Focal length range |
11.6 - 19.9 mm |
| Aperture range (F-F) |
1.7 - 2.1 |
| Horizontal lens shift range |
-20 - 20% |
| Vertical lens shift range |
-50 - 50% |
| Throw ratio |
0.79 - 1.36:1 |
| Zoom type |
Manual |
| Video |
|---|
| Analog signal format system |
Not supported |
| Full HD |
Yes |
| 3D |
No |
| Video colour modes |
Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
| Ports & interfaces |
|---|
| HDBaseT port |
Yes |
| USB 2.0 Type-B ports quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| HDMI ports quantity |
2 |
| USB 2.0 ports quantity |
3 |
| Serial interface type |
RS-232C |
| DVI port |
No |
| USB 2.0 Type-A ports quantity |
2 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast |
Yes |
| Apple AirPlay 2 support |
Yes |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Interactive |
No |
| HDCP |
Yes |
| Preset modes |
Cinema, Dynamic, Presentation |
| On Screen Display (OSD) |
Yes |
| Password protection |
Yes |
| Noise level |
34 dB |
| Noise level (economic mode) |
25 dB |
| HDCP version |
2.3 |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
10 W |
| Design |
|---|
| Market positioning |
Education |
| Product colour |
White |
| Product type |
Short throw projector |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Placement |
Ceiling, Desktop |
| Display |
|---|
| Built-in display |
Yes |
| Display |
LCD |
| Display diagonal |
0.67" |
| Power |
|---|
| Power source |
AC |
| Power consumption (typical) |
336 W |
| Power consumption (standby) |
0.4 W |
| Power consumption (max) |
399 W |
| AC input frequency |
50/60 Hz |
| AC adapter output voltage |
100 - 240 V |
| Power consumption (economy mode) |
233 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
17.3" (440 mm) |
| Depth |
14.3" (362 mm) |
| Height |
5.94" (151 mm) |
| Weight |
19.6 lbs (8.9 kg) |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
Power |
| Batteries included |
Yes |
| Technical details |
|---|
| Warranty period |
3 year(s) |
| Other features |
|---|
| Supported network protocols |
HTTPS, SNMP, ESC/VP.net, PJLink |
| RS-232C |
Yes |
