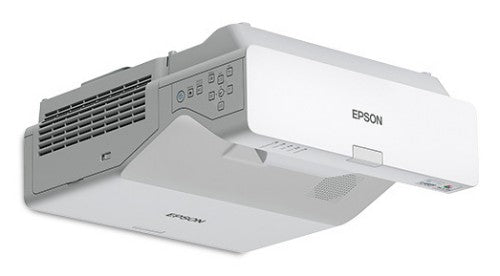

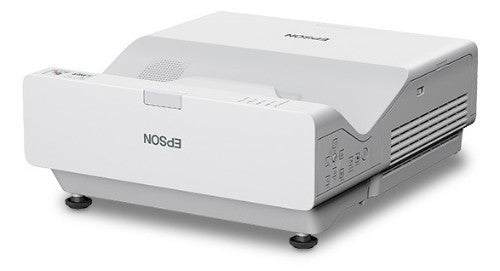

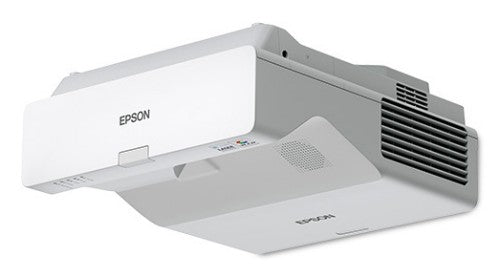

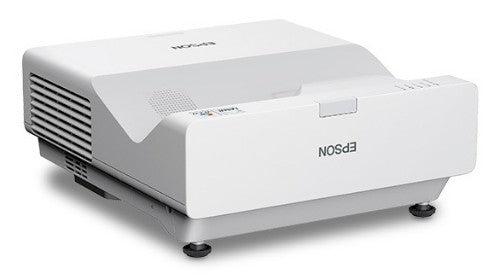

1080p 3LCD Ultra Short Throw Lamp-Free Laser Display
Key Features
- Ultra bright images; 4,100 lumens
- Full HD 1080p resolution for exceptional image quality
- No lamps to replace ever with solid-state laser light source
- Convenient ultra short throw design
- 16:9 display with additional support for ultra wide 21:9 & 16:6
Description
Captivate and inspire students with the eye-catching, easy-to-read display of the PowerLite® 770F. With its intelligent ultra short throw design, the dynamic PowerLite 770F delivers stunning HD images up to 150"—which is 2.4 times larger than a 75" flat panel—and can be easily seen from nearly anywhere in the classroom. Engineered for reliability, this incredibly bright 4,100-lumen1 display has a 20,000-hour, virtually maintenance-free laser light source2, which means there are no lamps to purchase or replace—ever. Providing wireless connectivity with casting capability3 and convenient split screen functionality4, the PowerLite 770F makes it easy for teachers and students to display up to four screens simultaneously. With its convenient Wake-On Sync function, the PowerLite 770F is ready to display in seconds, while supporting 16:9 as well as ultra wide 21:9 and 16:6 aspect ratios. Offering the flexibility to display on existing whiteboards, the versatile PowerLite 770F delivers even more value by allowing teachers to retain valuable whiteboard space when not in use.
- Easily project wall-sized images — built-in edge blending features for easy, scalable projection
- Simple, flexible installation — setup is easier than ever with the Epson Setting Assistant app6, plus the projector features 360-degree placement capabilities; mount or place the projector in any position, from landscape to portrait
- Easily programmable with the built-in media player — which includes templates, effects, color filters and customizable options; playlist and playback functions allow for seamless content management for single or multiple PowerLite projectors
- Easy access and maintenance — with remote management and control tools
Specifications
| Projector |
|---|
| Projector brightness |
4100 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
1080p (1920x1080) |
| Screen size compatibility |
57 - 150" |
| Native aspect ratio |
16:9 |
| Contrast ratio (typical) |
2500000:1 |
| Number of colours |
1.07 billion colors |
| Keystone correction, vertical |
-3 - 3° |
| Keystone correction, horizontal |
-3 - 3° |
| Smart projector |
No |
| Light source |
|---|
| Light source type |
Laser |
| Lens system |
|---|
| Zoom capability |
Yes |
| Focus |
Manual |
| Fixed focal length |
0.146" (3.7 mm) |
| Throw ratio |
0.25 |
| Video |
|---|
| Analog signal format system |
Not supported |
| Full HD |
Yes |
| 3D |
No |
| Ports & interfaces |
|---|
| VGA (D-Sub) ports quantity |
3 |
| HDMI ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| Composite video in |
0 |
| Microphone in |
Yes |
| Serial interface type |
RS-232C |
| DVI port |
No |
| Component video (YPbPr/YCbCr) in |
0 |
| Network |
|---|
| Smart TV |
No |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Miracast |
Yes |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Interactive |
No |
| Noise level |
37 dB |
| Noise level (economic mode) |
27 dB |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
1 |
| RMS rated power |
16 W |
| Design |
|---|
| Market positioning |
Education |
| Product colour |
White |
| Product type |
Ultra short throw projector |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Display |
|---|
| Built-in display |
Yes |
| Display |
LCD |
| Display diagonal |
0.62" |
| Power |
|---|
| Power source |
AC |
| Power consumption (typical) |
263 W |
| Power consumption (standby) |
2 W |
| Auto power off |
Yes |
| Weight & dimensions |
|---|
| Width |
14.1" (357 mm) |
| Depth |
15.6" (395 mm) |
| Height |
6.5" (165 mm) |
| Weight |
13 lbs (5.9 kg) |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
AC |
| Batteries included |
Yes |
