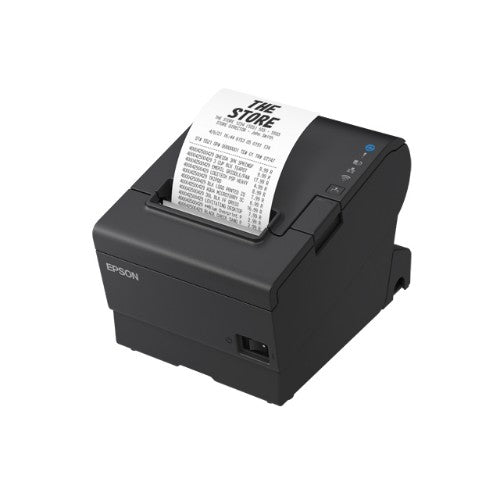

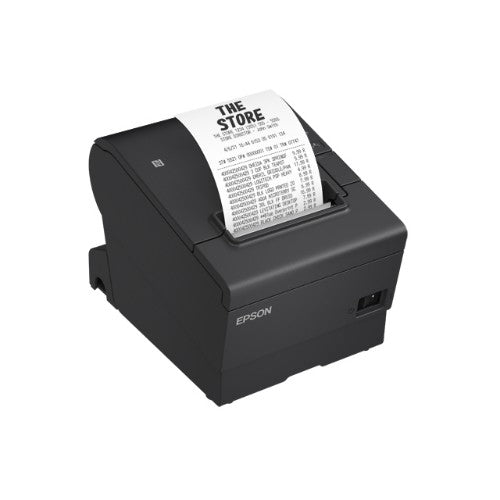

Epson OmniLink TM-T88VII, Thermal, POS printer, 180 x 180 DPI, 500 mm/sec, 0.0555 x 0.133" (1.41 x 3.39 mm), Text, Graphic, Barcode, 2D barcode
Description
Epson OmniLink TM-T88VII. Print technology: Thermal, Type: POS printer, Maximum resolution: 180 x 180 DPI. Printing media thickness: 48 - 80 µm, Maximum roll diameter: 3.27" (8.3 cm), Supported paper width: 80 mm. Connectivity technology: Wired, USB connector: USB Type-A / USB Type-B, Optional connectivity: Wireless LAN. Built-in barcodes: CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A,..., Sound pressure level (printing): 52 dB, Sound pressure level (standby): 52 dB. Product color: Black
Specifications
| Printing |
|---|
| Character sets |
ANK |
| Type |
POS printer |
| Print technology |
Thermal |
| Print speed |
500 mm/sec |
| Maximum resolution |
180 x 180 DPI |
| Character size |
0.0555 x 0.133" (1.41 x 3.39 mm) |
| Printing characters |
Text, Graphic, Barcode, 2D barcode |
| Performance |
|---|
| Character sets |
ANK |
| Type |
POS printer |
| Print technology |
Thermal |
| Print speed |
500 mm/sec |
| Maximum resolution |
180 x 180 DPI |
| Character size |
0.0555 x 0.133" (1.41 x 3.39 mm) |
| Built-in barcodes |
CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E |
| Paper handling |
|---|
| Media thickness |
48 - 80 mm |
| Supported paper width |
80 mm |
| Printing media thickness |
48 - 80 µm |
| Maximum roll diameter |
3.27" (8.3 cm) |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| USB port |
Yes |
| USB connector |
USB Type-A / USB Type-B |
| Optional connectivity |
Wireless LAN |
| Near Field Communication (NFC) |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Print technology |
|---|
| Type |
POS printer |
| Print technology |
Thermal |
| Print speed |
500 mm/sec |
| Character size |
0.0555 x 0.133" (1.41 x 3.39 mm) |
| Column capacity |
42/56 |
| Print quality |
|---|
| Maximum resolution |
180 x 180 DPI |
| Technical details |
|---|
| Pre-installed software |
Server Direct Print, ePOS-Device, ePOS-Display, ePOS-Print |
| Media thickness |
48 - 80 mm |
| Mean cycles between failures (MCBF) |
70000000 |
| Character sets |
ANK |
| Built-in sensors details |
Paper End Sensor, Paper Near End Sensor, Cover Open Sensor, Receipt paper sensor |
| Product colour |
Black |
| Built-in barcodes |
CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E |
| Buffer size |
4 KB |
| Autocutter durability |
3 million cuts |
| Products per pallet |
112 pc(s) |
| Quantity per pack |
1 pc(s) |
| Products per pallet (UK) |
168 pc(s) |
| Lifetime |
20000000 lines |
| Changeable interface |
Yes |
| Features |
|---|
| Media thickness |
48 - 80 mm |
| Mean cycles between failures (MCBF) |
70000000 |
| Character sets |
ANK |
| Built-in sensors details |
Paper End Sensor, Paper Near End Sensor, Cover Open Sensor, Receipt paper sensor |
| Mean time between failures (MTBF) |
360000 h |
| Product colour |
Black |
| Certification |
CE |
| Built-in barcodes |
CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E |
| Autocutter durability |
3 million cuts |
| Sound pressure level (printing) |
52 dB |
| Print head life |
200 km |
| Sound pressure level (standby) |
52 dB |
| Wall mountable |
Yes |
| Mounting position |
Horizontal/Vertical |
| Paper save function |
Yes |
| Design |
|---|
| Product colour |
Black |
| Memory |
|---|
| Buffer size |
4 KB |
| Endurance |
|---|
| Mean time between failures (MTBF) |
360000 h |
| Power |
|---|
| Power consumption |
27900 mA |
| AC input voltage |
24 V |
| Power source type |
DC |
| Power consumption (printing) |
27.9 W |
| Power consumption (standby) |
1400 mA |
| Power consumption (standby) |
1.4 W |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
5 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| System requirements |
|---|
| Pre-installed software |
Server Direct Print, ePOS-Device, ePOS-Display, ePOS-Print |
| Certificates |
|---|
| Certification |
CE |
| Weight & dimensions |
|---|
| Width |
5.71" (145 mm) |
| Depth |
7.68" (195 mm) |
| Height |
5.83" (148 mm) |
| Weight |
3.75 lbs (1.7 kg) |
| Package width |
7.68" (195 mm) |
| Package depth |
9.25" (235 mm) |
| Package height |
10.2" (260 mm) |
| Package weight |
5.95 lbs (2.7 kg) |
| Packaging data |
|---|
| Package width |
7.68" (195 mm) |
| Package depth |
9.25" (235 mm) |
| Package height |
10.2" (260 mm) |
| Package weight |
5.95 lbs (2.7 kg) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Software |
|---|
| Pre-installed software |
Server Direct Print, ePOS-Device, ePOS-Display, ePOS-Print |
| Logistics data |
|---|
| Products per pallet |
112 pc(s) |
| Products per pallet (UK) |
168 pc(s) |
| Other features |
|---|
| Mean cycles between failures (MCBF) |
70000000 |
| Buffer size |
4 KB |
| Print head life |
200 km |
