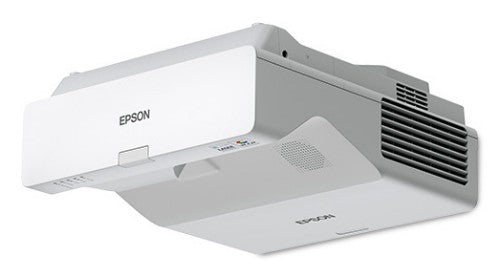

BrightLink 760Wi WXGA 3LCD Interactive Lamp-Free Laser Display
Key Features
- Ultra bright images; 4,100 lumens1
- Large interactive display up to 100"
- Multi-user capability for easy collaboration
- 16:10 WXGA resolution for true-to-life images
- Connects to popular applications and devices
Description
Lamp-free interactive display projects easy-to-read images for collaborative classrooms.
Designed for ease of use in collaborative learning environments, BrightLink® ultra short throw displays simplify interactivity in the classroom by offering compatibility with frequently used software applications including Office 365® and Google Workspace®. Offering a high-quality 16:10 WXGA display up to 100", the BrightLink 760Wi interactive display delivers easy-to-read images that provides up to 85 percent more interactive space than a 75" flat panel—for a low cost per square inch. With 4,100 lumens of color and white brightness1 and proprietary 3-chip 3LCD technology, this display delivers a remarkably bright and colorful picture that can be easily viewed in ambient light conditions from nearly anywhere in the classroom. It also includes a 20,000-hour, virtually maintenance-free laser light source2, so there are no lamps to purchase or replace—ever.
A convenient and seamless solution, the BrightLink 760Wi features wireless connectivity with casting capability from PCs, Mac® computers, Chromebooks, and Android® and iOS® devices3, along with convenient split screen functionality4, making it easy for teachers and students to wirelessly display up to four screens simultaneously. With its unique ability to display and support interactivity on existing whiteboards, this dual-pen-enabled display has an optional touch function and delivers exceptional value by allowing teachers to retain valuable whiteboard space when the display is not in use.
Specifications
| Projector |
|---|
| Projector brightness |
4100 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WXGA (1280x800) |
| Screen size compatibility |
68 - 100" |
| Native aspect ratio |
16:10 |
| Supported aspect ratios |
4:3, 16:10, 16:9 |
| Contrast ratio (typical) |
2500000:1 |
| Number of colours |
1.07 billion colors |
| Projector brightness (economic mode) |
2100 ANSI lumens |
| Matrix size |
0.59" |
| Keystone correction, vertical |
-3 - 3° |
| Keystone correction, horizontal |
-3 - 3° |
| Smart projector |
No |
| Light source |
|---|
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
| Lens system |
|---|
| Zoom ratio |
1.35:1 |
| Focus |
Manual |
| Fixed focal length |
0.146" (3.7 mm) |
| Throw ratio |
0.27 - 0.37:1 |
| F-number (relative aperture) |
1.6 |
| Video |
|---|
| Analog signal format system |
Not supported |
| Full HD |
No |
| 3D |
No |

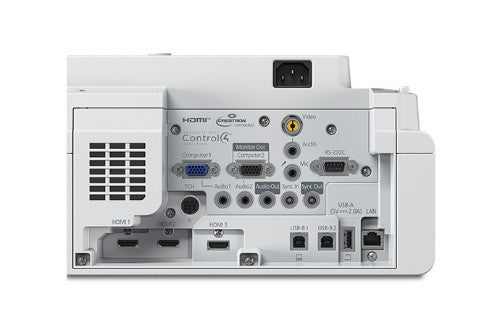

| Ports & interfaces |
|---|
| VGA (D-Sub) ports quantity |
3 |
| HDMI ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| Composite video in |
1 |
| Headphone outputs |
3 |
| Microphone in |
Yes |
| Serial interface type |
RS-232C |
| DVI port |
No |
| Component video (YPbPr/YCbCr) in |
0 |
| Service port type |
USB Type-B |
| Network |
|---|
| Smart TV |
No |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast |
Yes |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Interactive |
Yes |
| On Screen Display (OSD) |
Yes |
| Air filter |
Yes |
| Noise level |
37 dB |
| Noise level (economic mode) |
27 dB |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
16 W |
| Design |
|---|
| Market positioning |
Presentation |
| Product colour |
White |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Placement |
Ceiling, Desktop, Wall |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power source |
AC |
| Power consumption (typical) |
277 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
-10 - 90% |
| Weight & dimensions |
|---|
| Width |
14" (356 mm) |
| Depth |
15.6" (395 mm) |
| Height |
5.24" (133 mm) |
| Weight |
13.2 lbs (6 kg) |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
AC, USB |
| Batteries included |
Yes |
| Interactive pen included |
Yes |
| Other features |
|---|
| F-number (relative aperture) |
1.6 |
