Wi-Fi, 2.4/5 GHz, PoE, QoS, 1x RJ-45, VLAN, IP67
Key Features
- Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 2x2 antenna
- Supports up to 1,200 Mbps in 5-GHz frequency band & 574 Mbps in 2.4-GHz frequency band
- IP67-Rated weatherproof & dustproof housing withstands harsh environments
- 2.5 GigE PoE+ compatible port for easy placement where power outlets are scarce
- Select cloud or on-premises management options based on network architecture, administrative permissions
- From anywhere cloud visibility and control
- Setup in minutes with app-based step by step instructions
- Quick-scan device register, remote monitoring and troubleshooting
- Real-time system metrics, analytics and remote configurations
- No access point licensing or subscription fees
Description
The EnGenius Fit Managed EWS850-FIT, a Wi-Fi 6 (802.11ax) 2x2 IP67 dual-band outdoor wireless access point designed for small business environments and provides maximum speeds of 574 Mbps (2.4 GHz frequency) and 1,200 Mbps (5 GHz frequency). This IP67-rated weatherproof and ruggedized wireless AP can be deployed outdoors. Select cloud or on-premises management options based on network architecture, administrative permissions, and technical aptitude. Business-class features optimize network efficiency ensuring secure, reliable, and high performance while r
Specifications
| Performance |
|---|
| Maximum data transfer rate |
1774 Mbit/s |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Spread spectrum method |
DSSS |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at |
| Certification |
FCC, CE, IC |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A53 |
| Processor frequency |
1800 MHz |
| Features |
|---|
| 6 GHz |
No |
| Maximum data transfer rate |
1774 Mbit/s |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Spread spectrum method |
DSSS |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1200 Mbit/s |
| Virtual LAN features |
Tagged VLAN |
| BeamForming |
Yes |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A53 |
| Processor frequency |
1800 MHz |
| Security |
|---|
| Security algorithms |
SNMP, SNMPv2, SNMPv3, WPA2-AES, WPA2-Enterprise, WPA3-Enterprise, WPA3-PSK |
| Number of SSID supported |
8 |
| MAC address filtering |
Yes |
| Service Set Identifier (SSID) features |
Hidden SSID, Multiple SSIDs |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (max) |
15.9 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
Active PoE |
| DC voltage range |
48 - 54 V |
| Design |
|---|
| Placement |
Pole, Wall |
| LED indicators |
LAN, Power, WLAN |
| International Protection (IP) code |
IP67 |
| Product colour |
White |
| Certification |
FCC, CE, IC |
| Antenna |
|---|
| Antenna type |
External |
| Antennas quantity |
4 |
| Antenna gain level (max) |
5 dBi |
| Antenna connector type |
SMA |
| Antenna direction type |
Omni-directional |
| Antenna features |
Detachable antenna |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Certificates |
|---|
| Certification |
FCC, CE, IC |
| Weight & dimensions |
|---|
| Width |
4.88" (124 mm) |
| Depth |
7.48" (190 mm) |
| Height |
2.07" (52.5 mm) |
| Weight |
24.7 oz (700 g) |
| Package width |
11.2" (284 mm) |
| Package depth |
5.67" (144 mm) |
| Package height |
9.21" (234 mm) |
| Package weight |
3.9 lbs (1.77 kg) |
| Packaging data |
|---|
| PoE adapter included |
Yes |
| Quick start guide |
Yes |

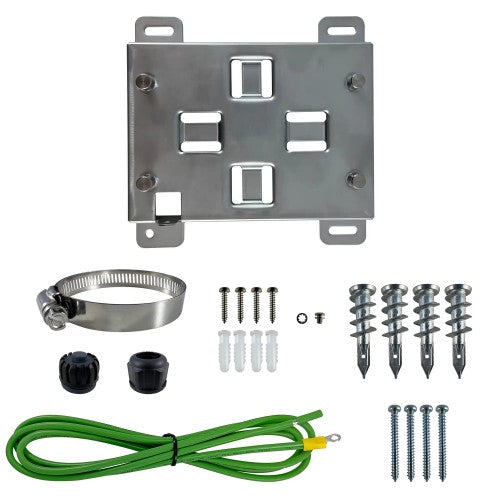

| Mounting kit |
Yes |
| Package width |
11.2" (284 mm) |
| Package depth |
5.67" (144 mm) |
| Package height |
9.21" (234 mm) |
| Package weight |
3.9 lbs (1.77 kg) |
| Packaging content |
|---|
| PoE adapter included |
Yes |
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Quantity per pack |
1 pc(s) |
| Antenna included |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Logistics data |
|---|
| Master (outer) case width |
17.7" (450 mm) |
| Master (outer) case length |
19.3" (490 mm) |
| Master (outer) case height |
12.2" (310 mm) |
| Master (outer) case gross weight |
26.2 lbs (11.9 kg) |
| Products per master (outer) case |
6 pc(s) |
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85176990 |
