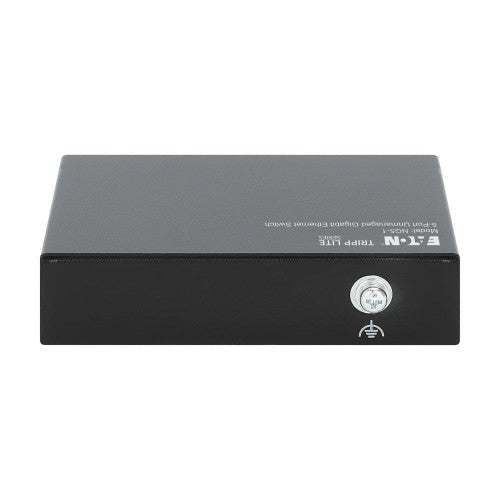

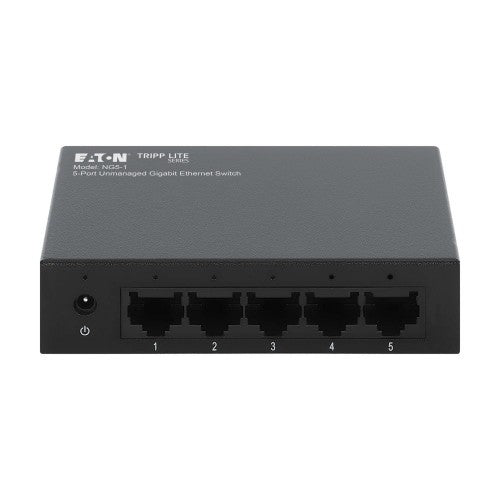

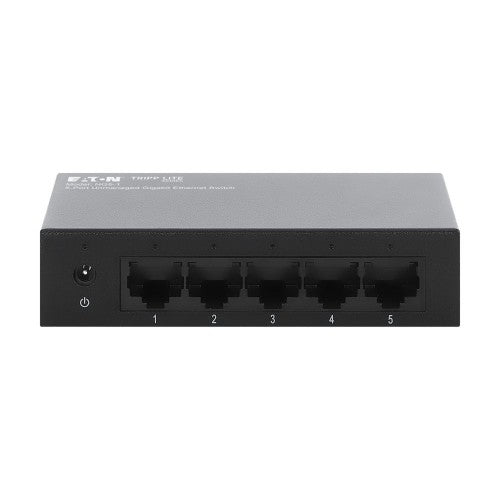

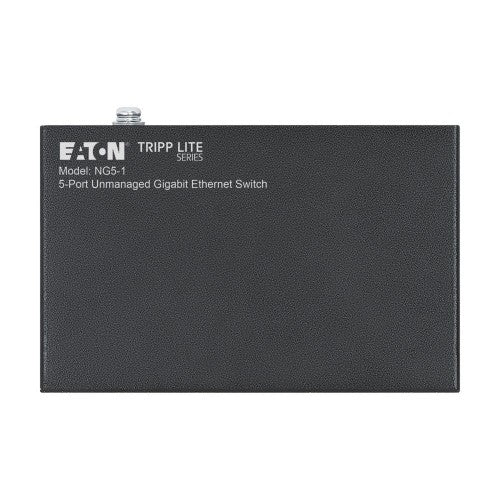

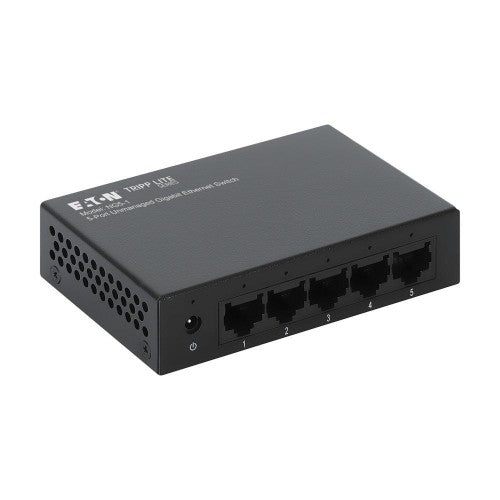

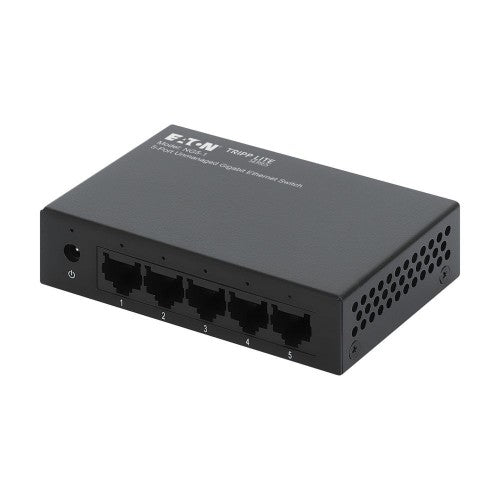

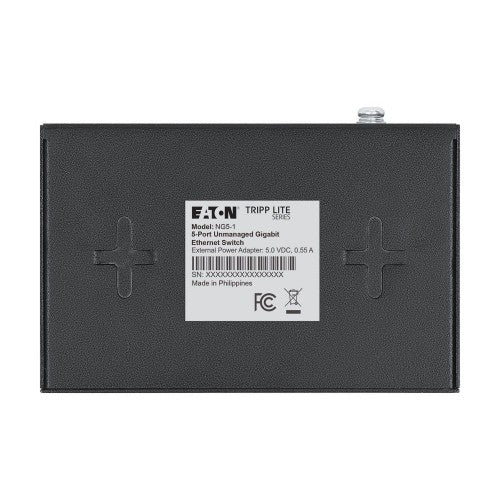

5Port Desktop Gigabit Unmanaged Network Switch w External Power Supply, metal, US and EU Plug

Key Features

• Consumes just 1W maximum input power to save energy costs
• Helps you share large bandwidth-intensive files to improve work efficiency
• Designed for either desktop installation or wall mounting with keyhole tabs
• 5 twisted-pair auto-negotiable RJ45 ports support auto MDI/MDIX functionality
• Unused ports shift into low-power state without interrupting network connection

Description

Unmanaged Gigabit Ethernet Switch for Small Offices and Workgroups
The energy-efficient unmanaged network switch connects up to {NumberOfPortsOther} devices, such as computers, routers, printers and servers, to a Gigabit Ethernet network and allows them to communicate with each other. It’s recommended for your small office or data center, workgroup or creative production environment. It helps you share large bandwidth-intensive files, such as CAD drawings and videos, at {NetworkCompatibility} speeds, improving efficiency and cutting costly downtime.

Maximum Network Functionality

This unmanaged switch features {NumberOfPortsOther} twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable {NetworkCompatibility} and auto MDI/MDIX functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers and other switches. No configuration is required, so you can have your Gigabit network up and running immediately. IEEE 802.3x flow control (full duplex) and back pressure (half duplex) allow smooth transmission of large files.

Complies with IEEE Energy Efficient Ethernet Standards

The switch supports IEEE 802.3az Energy Efficient Ethernet standards by automatically shifting unused ports into a low-power state without interrupting network connections. It consumes very little input power. It also meets IEEE 802.3ab, 802.3i and 802.3u standards.

Plug-and-Play Functionality for Easy Use

No configuration is required in setting up the unmanaged switch, so you can have your {NetworkCompatibility} network up and running immediately. Cat5/5e/6/6a UTP/STP cables (sold separately) provide optimal performance. Easy-to-read LEDs indicate connection and activity status for each port. The switch supports MAC address auto-learning and auto-aging for efficient routing.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.3az, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Full duplex	Yes
Cable types supported	Cat5, Cat5e, Cat6, Cat6a
Ethernet LAN data rates	10,100,1000 Mbit/s
Half duplex	Yes
Auto-negotiation	Yes
Data transmission
Switching capacity	10 Gbit/s
Jumbo frames	9
Jumbo frames support	Yes
Design
Product colour	Black
Form factor	Desktop/Wall-Mounting
Wall mountable	Yes
LED indicators	Power, Status
Housing material	Metal
Certification	EN 55032 UL 62368-1 CSA Std. C22.2 EN 55035
Performance
Fanless	Yes
Auto-negotiation	Yes
Power

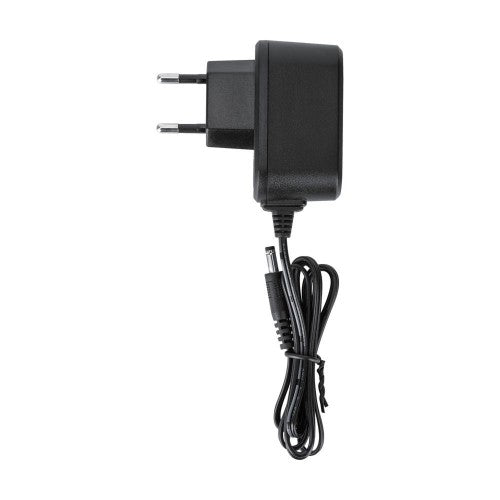

Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	1.6 W
Number of power supply units	1
Input current	0.25 A
Power source	AC
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	3.94" (100.1 mm)
Depth	2.52" (64 mm)
Height	0.941" (23.9 mm)
Weight	5.29 oz (150 g)
Packaging content
Manual	Yes
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UKCA
Certificates
Certification	EN 55032 UL 62368-1 CSA Std. C22.2 EN 55035
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UKCA
Packaging data
Manual	Yes
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
