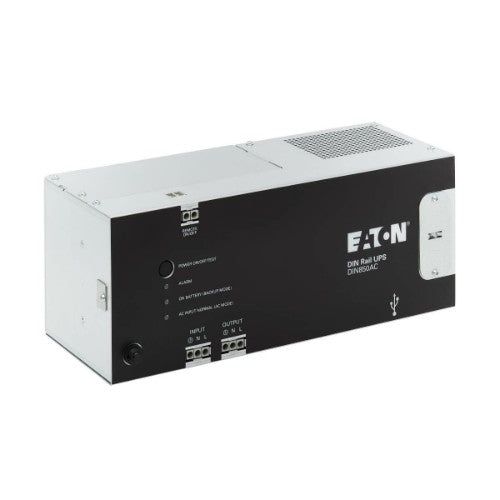

Eaton 850VA 510W 120V AC DIN Rail Industrial UPS - Hardwire Input/Output

Description

Flexible Power Protection for Smart Industrial Applications
This standby UPS system with hardwire 120V AC input/output delivers reliable power and battery backup for computing, networking, control and storage equipment in factories, warehouses, edge computing locations and automated manufacturing and fabrication facilities. The rugged compact housing withstands demanding conditions and integrates seamlessly and securely into electrical enclosures in any non-traditional IT environment.

Ideal for Factory Floors and Extreme Temperatures

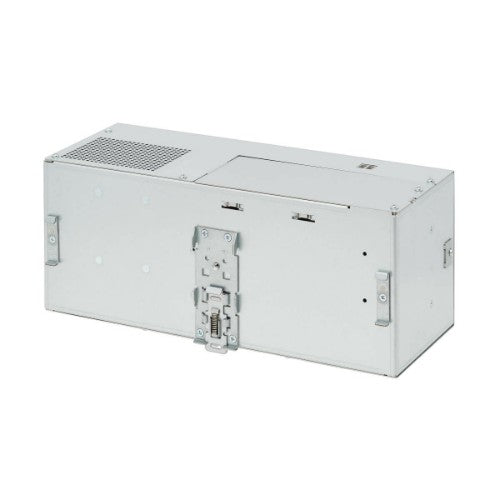

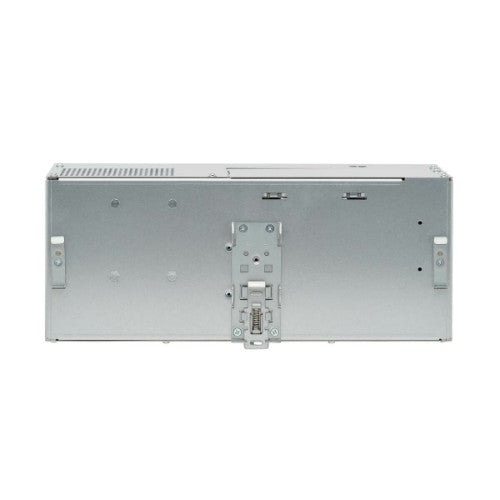

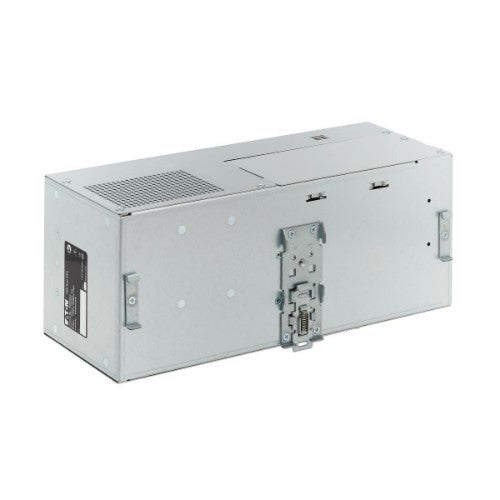

Get full use of the UPS system’s power capacity because there is no derating based on its operating temperature range of -15°C (5°F) to 50°C (122˚F), which expands the number of locations in which it can be used. Built to fit into small spaces, this UPS is a UL 508 recognized component for integration into industrial control panels and enclosures. Its pre-installed clamp enables quick mounting to a 35 mm DIN rail. Its fanless design reduces noise and increases reliability.

Reliable Battery Backup Keeps You Operational Through Power Outages
Power outages not only drain productivity from the factory floor, but they also damage expensive equipment. This DIN-rail UPS system protects productivity by providing enough runtime to maintain operation during a brief power outage and protects equipment by allowing it to complete an operation during an extended outage. It also prevents brownouts, overvoltages, surges and line noise from damaging equipment that could destroy data and contribute to costly downtime.

Stay in Control of Your Operation

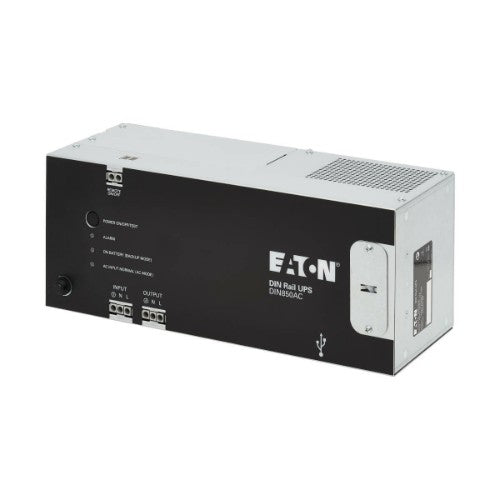

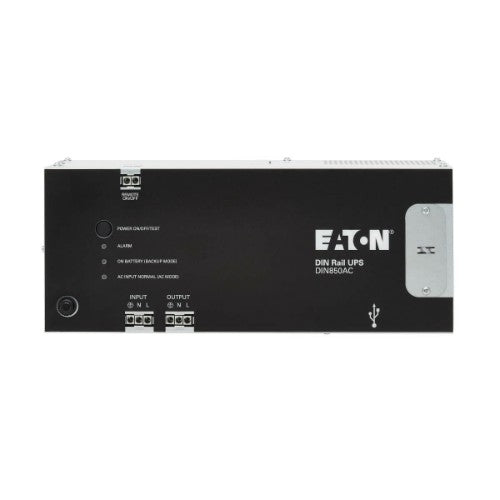

LEDs on the front panel confirm normal operation and indicate alarm or fault status. Remote on/off can help you avoid maintenance surprises.

Easy Preventative Maintenance and Initial Troubleshooting
The self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.

Specifications

Power
Output power capacity	0.85 kVA
Output power	510 W
Input operation voltage (min)	120 V
Input operation voltage (max)	120 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	588 J
Power factor	0.6
Output voltage regulation	10%
Output frequency	50/60 Hz
Charging current	0.7 A
Performance
UPS topology	Standby (Offline)
Number of input phases	1
Response time	8 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Noise level	40 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
UPS topology	Standby (Offline)
Output power capacity	0.85 kVA
Country of origin	China
Number of input phases	1
Response time	8 ms
Output power	510 W
Input operation voltage (min)	120 V
Input operation voltage (max)	120 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	588 J
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Power factor	0.6
Output voltage regulation	10%
Output frequency	50/60 Hz
Noise level	40 dB
Audible alarm(s)	Yes
Charging current	0.7 A
Ports & interfaces
AC outlet types	Hardwire
Power plug	Hardwire
USB port	Yes
USB 2.0 ports quantity	1
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	7 min
Typical backup time at full load	2 min
Cold start	Yes
Charging current	0.7 A
Design
Form factor	Compact
Country of origin	China
Product colour	Black
LED indicators	Yes
Housing material	Steel
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Harmonized System (HS) code	8504.40.8500
Compliance certificates	Federal Communications Commission (FCC), ICES, RoHS
Certificates
Compliance certificates	Federal Communications Commission (FCC), ICES, RoHS
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	10.9" (277.1 mm)
Depth	4.88" (124 mm)
Height	5.22" (132.6 mm)
Weight	12.1 lbs (5.5 kg)
Package weight	13.2 lbs (6 kg)
Packaging data
Package weight	13.2 lbs (6 kg)
Logistics data
Country of origin	China
Products per master (outer) case	1 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332274929
Harmonized System (HS) code	8504.40.8500
