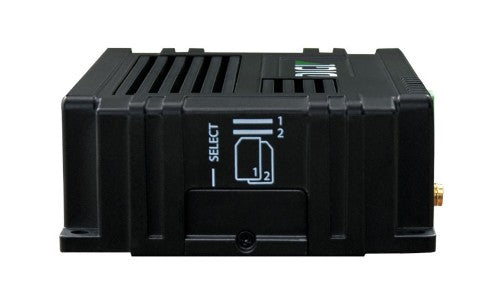

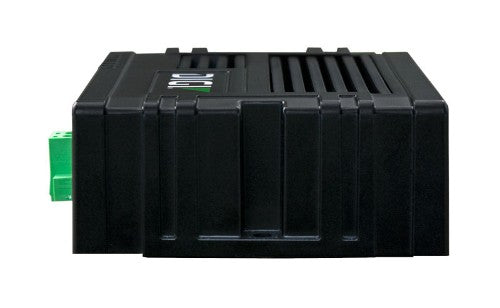

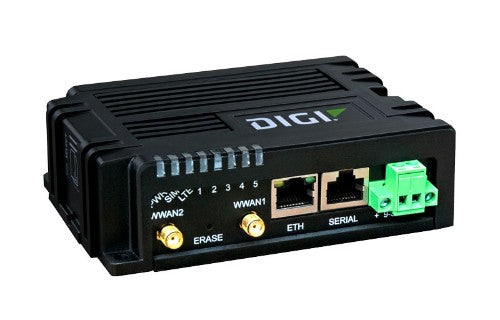

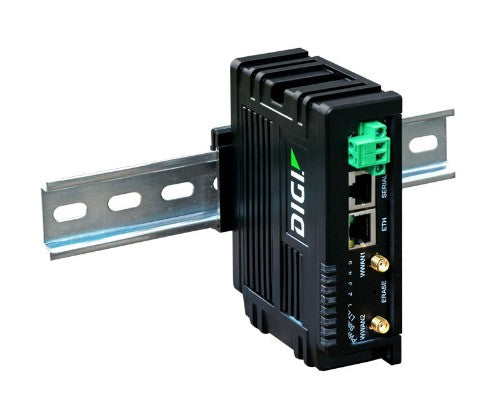

IX10 — LTE Cat 4 Regional (North America), Ethernet, RS-232/485, Black

Key Features

• Compact and economical connectivity solution with industrial feature set for public and private cellular networks
• Redundant connectivity with dual SIMs and Digi SureLink®
• Optional Digi eSIM accessory for remote carrier switching
• Global and regional bands with single part number to simplify distribution, deployment and management
• Meets U.S. government FIPS 140-3 cybersecurity standard
• Built-in Digi TrustFence® for device security, device identity and data privacy
• Digi Containers to enable powerful, cost-efficient applications
• Includes the Digi 360 solution with warranty, customer care and Digi Remote Manager® cloud management, enabling easy setup, mass configuration and management
• Ethernet port and single RJ-50 serial port (RS-232/485)
• C1D2 rated with IP30 enclosure

Description

Digi IX10 is a full-featured cellular router built for trouble-free reliability over a long service life — easy to deploy and centrally managed via Digi Remote Manager (Digi RM), which is included in your Digi 360 solution.

Its flexible power and connectivity options make it a versatile and cost-effective choice for industrial, digital signage, ATMs, lottery terminals, kiosks and other unattended retail applications that need to provide secure transactions over public and private cellular networks.

Digi IX10 can operate on public and private LTE networks, with features to assist in network control and management, such as dual SIMs for failover connectivity, VLAN support, load balancing between cellular and Ethernet WANs, dual APNs and configurable APN search. Digi IX10 also supports the optional 2FF Digi eSIM accessory, enabling remote carrier switching, zero-touch activation and enhanced WAN flexibility.

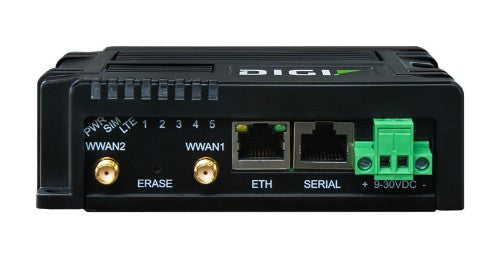

Digi IX10 features one Ethernet port and one RJ-50 serial port supporting both RS-232 and RS-485. In the event of an interruption to your primary network connection, Digi RM also provides secure out-of-band management of edge devices via Digi IX10's serial port and command-line interface.

Gain critical insights into your deployed devices and manage your network with Digi RM — the command center for your deployment. Digi RM is a cloud-based solution that facilitates easy setup, mass configuration, maintenance and support, even for thousands of devices. Digi RM empowers you to evaluate, update and configure your Digi products, while providing easy visibility into the health of your network. It also offers low-touch and no-touch provisioning.

Digi IX10 offers the convenience of a global SKU for simplified global distribution and deployment, as well as cost-optimized SKUs for North America, including a CBRS-only SKU.

Specifications

Technical details
Device type	Cellular network router
Data network	LTE
Compliance certificates	CE, Federal Communications Commission (FCC), CB, RoHS
Ethernet LAN features
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100 Mbit/s
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Cellular interface
Number of SIM cards	2
4G standard	LTE
Design
Housing material	Polyphenylene sulfide
Device type	Cellular network router
Product colour	Black
LED indicators	Yes
Mobile network
Number of SIM cards	2
Data network	LTE
4G standard	LTE
4G LTE category	4
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Serial interface
RS-232 signals	RXD, TXD, RTS, CTS, DTR, DCD, DSR, RI
Security
Security algorithms	SNMPv2, SNMPv3, HTTPS, SSH
Certificates
Certification	IEC 62368-1, EN 62311, UL 121201 9th Edition, CAN/CSA C22.2 NO.213-17, ICES-003, AU/NZS CISPR32
Compliance certificates	CE, Federal Communications Commission (FCC), CB, RoHS
Material
Housing material	Polyphenylene sulfide
Performance
Certification	IEC 62368-1, EN 62311, UL 121201 9th Edition, CAN/CSA C22.2 NO.213-17, ICES-003, AU/NZS CISPR32
Power
Power consumption (typical)	1.5 W
Input voltage	9 - 30 V
Power source type	DC
Power consumption (max)	3.5 W
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	13.8 oz (390 g)
Width	3.46" (88 mm)
Depth	4.65" (118 mm)
Height	1.38" (35 mm)
